COLUMN FORMING
MAX-A-FORM
®
is a gang form system
that allows faster
placement, pours and resetting. The strong, all-steel design allows forms
to be set in larger units. Fewer crane picks are necessary and cycling
time is optimized on repetitious pouring applications. Gang size is
limited only by available crane capacity.
Forms are assembled easily using ¾" Speed Bolt and Nut. Panels are
punched with enlonged holes in both the top and side framing, to allow
easy alignment and quick assembly, regardless of panel orientation.
Panels are available in more than 100 sizes, from 2' wide by 1' long to
12' wide 20' long. The large number of filler choices allows more gang
and detail flexibility. Large, 200 square foot panels mean fewer pieces,
fewer panel joints and less labor to assemble.
Versatile tie systems are available with capacities and configurations to
maximize cost effectiveness for each application.
Taper Ties and She-Bolts are used with Plate Washers or Cast Bearing
Washers and nuts for efficient flat and battered wall applications.
External top and bottom ties are available in several lengths and
adjustment ranges to accommodate a wide range of wall thickness
and special applications.
Skin Plate Thickness
3/16"
Pressure Ratings
8' width: 1,500 psf
10' width: 1,200 psf
12' width: 1,000 psf
Panel Width
2, 2.5', 3' 3.5', 4', 5', 6', 7', 8',
9', 10', 12'
Panel Length
1', 2', 3', 4', 5', 6', 7', 8', 10',
12', 20'
Approximate Weight
20 psf (assembled)
Panel Thickness
6-1/2" - 2' to 7' width
8-1/2" - 8', 9', 10' width
10-1/2" - 12' width

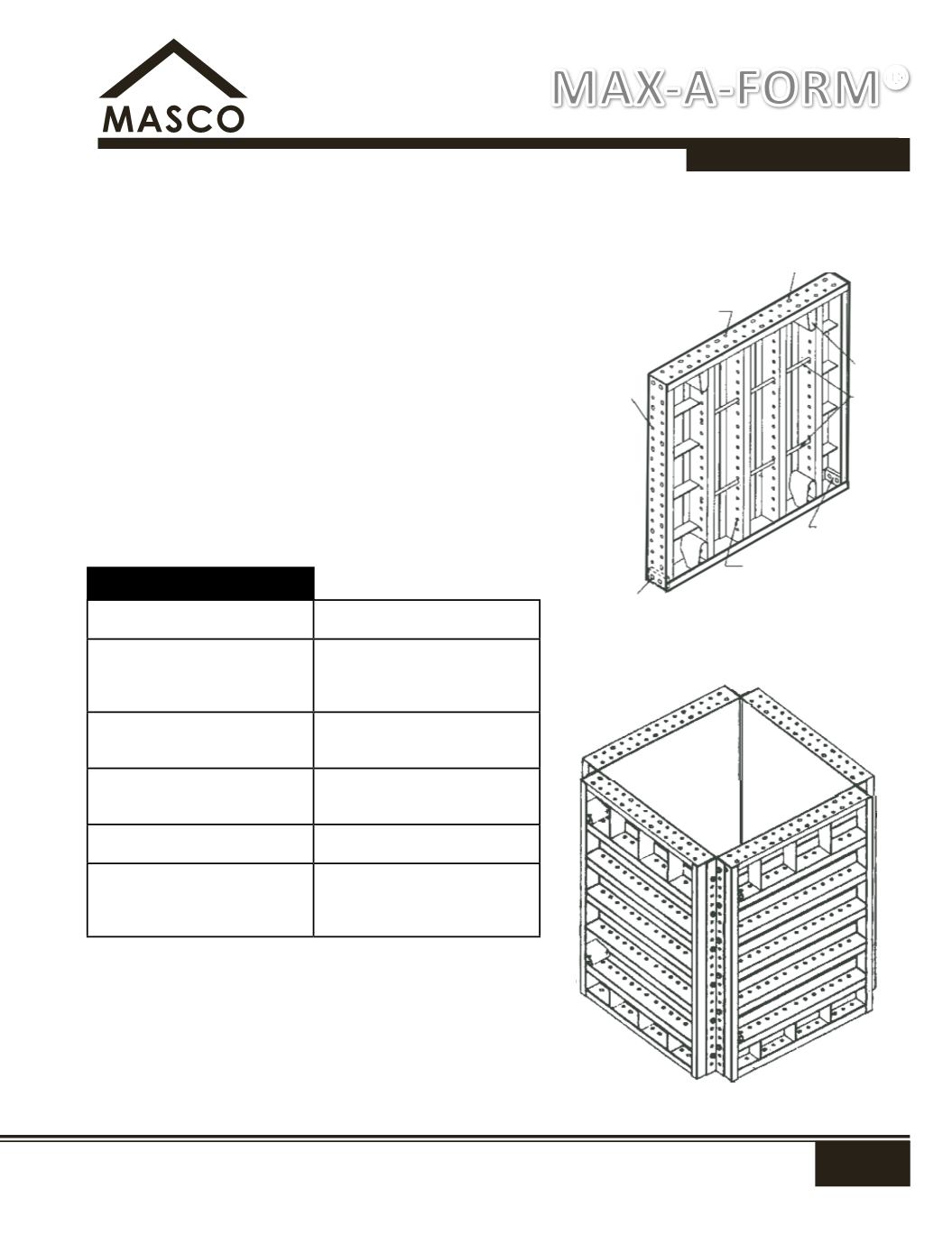

Specifications:
Typical panel to panel
connections utilize 3/4" x 2"
speed bolts through
13/16" x 1-1/4" slots at 1'-0" c/c
13/16" Ø holes
when panel joint
is in shear in
plate girder
applications
13/16" Ø Steel-Ply
holes at 12" c/c
Optional
tie hole
Climbing
rods
Girder bolt
bearing block
Acessory
holes
1-1/16" Ø hole for
1" Ø A325 bolts
MAX-A-FORM
®
For Large Columns
For large columns that require a concrete finish with few seams, Max-A-
Form is often the systems of choice. Max-A-Form columns up to 8' wide
can be poured without the use of internal ties. The Max-A-Form system
features a
3
/16" steel face for a consistently smooth finish, and panel
heights of up to 20'. A heavy duty, 1500 psf rentable steel forming system
ideally suited for forming square or rectangular bridge piers and columns.
A complete line of accessories coupled with Masons system compatibility
optimizes forming adaptibility. No matter what type of column contractors
encounter, Masons has equipment that will help them form these
common structural elements quickly and cost-effectively.
