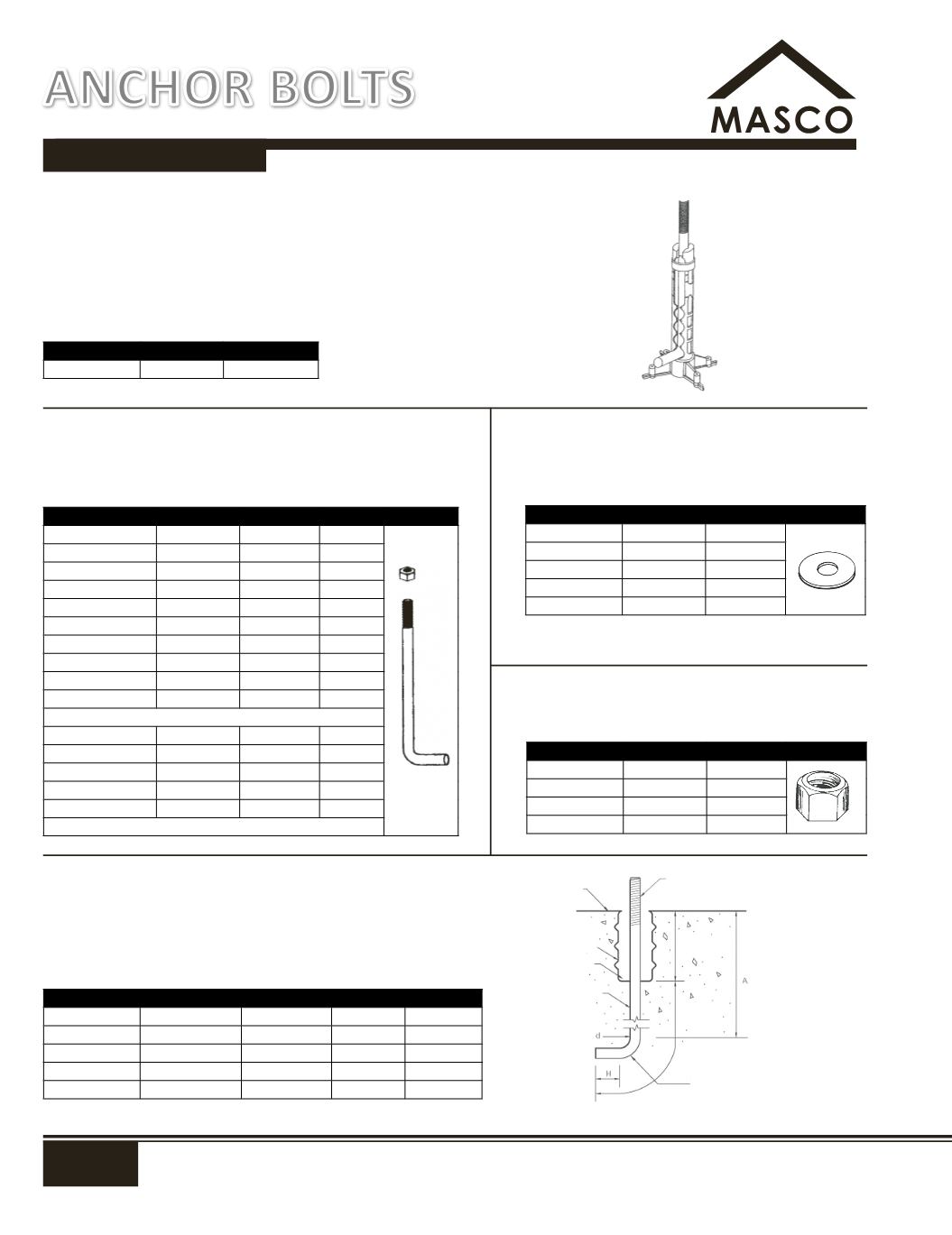

POUR IN PLACE
Anchor Bolts
Anchor bolts are fabricated from low carbon steel for use in the
limited load requirements of a foundation bolt. Available in 1/2"
,5/8" and 3/4" diameters with national course thread. All sizes are
furnished with N.C. nut only.
Nuts - N/C
Nuts are used with all sizes N/C bolts and rod, the nust
are fabricated from carbon steel.
Washers
Washers are used with all sizes of bolts and rod. The
washers are fabricated from carbon steel.
Anchor Bolt Sleeve
The unique high-density polyethylene plastic design provides flexibility.
If sizing is required, simply cut the sleeve at the gage line as shown.
Anchor Bolt Sleeves provide a grout pocket around the anchor bolt to
allow the bolt to be positioned exactly. They provide a quick, easy way
to make final adjustments and a clean pocket for grouting at lower
cost than other methods.
No.
Size
Wt (lbs)
Qty/Bag
CT 126BOLT
1/2" x 6"
0.35
100 pcs
CT 128BOLT
1/2" x 8"
0.45
100 pcs
CT 1210BOLT
1/2" x 10"
0.51
100 pcs
CT 1212BOLT
1/2" x 12"
0.61
100 pcs
CT 588BOLT
5/8" x 8"
0.70
50 pcs
CT 5810BOLT
5/8" x 10"
0.82
50 pcs
CT 5812BOLT
5/8" x 12"
1.0
50 pcs
CT 348BOLT
3/4" x 8"
1.1
50 pcs
CT 3410BOLT
3/4" x 10"
1.3
50pcs
CT 3412BOLT
3/4" x 12"
1.5
50 pcs
Hot Dipped Galvanized
CT 1210BOLTHD 1/2" x10"
0.51
100
CT 5810BOLTHD 5/8" x10"
0.82
50
CT 5812BOLTHD 5/8" x12"
1.0
50
CT3410BOLTHD 3/4" x 10"
1.3
50
CT 3412BOLTHD 3/4" x12"
1.5
50
Other sizes available on request.
No.
Size
Wt (lbs)
CT 12WASH 1/2"
0.04
CT 58WASH 5/8"
0.08
CT 34WASH 3/4"
0.11
CT 1WASH 1"
0.17
CT 114WASH 1-1/4"
0.21
No.
Size
Wt (lbs)
CT 12NUT
1/2"
0.04
CT 58NUT
5/8"
0.08
CT 34NUT
3/4"
0.12
CT 1NUT
1"
0.32
No.
Bolt Size
Sleeve Size Wt (lbs)
Qty/Ctn
SI 1701
1/2", 3/4"
2" x 5"
0.10
100
SI 1704
5/8", 3/4", 7/8" 2" x 7"
0.10
100
SI 1706
1", 1-1/4"
3" x 10"
0.26
50
SI 1708
1-1/2", 1-3/4"
4" x 15"
0.60
20
SI 1710
2", 2-1/4"
4"x 18"
0.75
20
Anchor Bolt Holder
Fits ½" to ¾" diameter anchor bolts. Anchor bolt locks into e-z bolt
sleeve with locking ring and is then placed into the base. Unique
design allows for vertical height adjustment of anchor bolts.
Assures proper placement of anchor bolts on elevated slabs.
Base Plate holder attaches to the decking by nail or staple.
No.
Qty/Ctn Wt/Ctn (lbs)
AZ ABH
100
16.0
PROJECTION
AS REQUIRED
TOP OF
CONCRETE
ANCHOR
SLEEVE
GROUT
ANCHOR BOLT
WALL
PLATE
ANCHOR
8d MINIMUM
LENGTH
ANCHOR BOLTS
