POUR IN PLACE
ANCHOR BOLTS

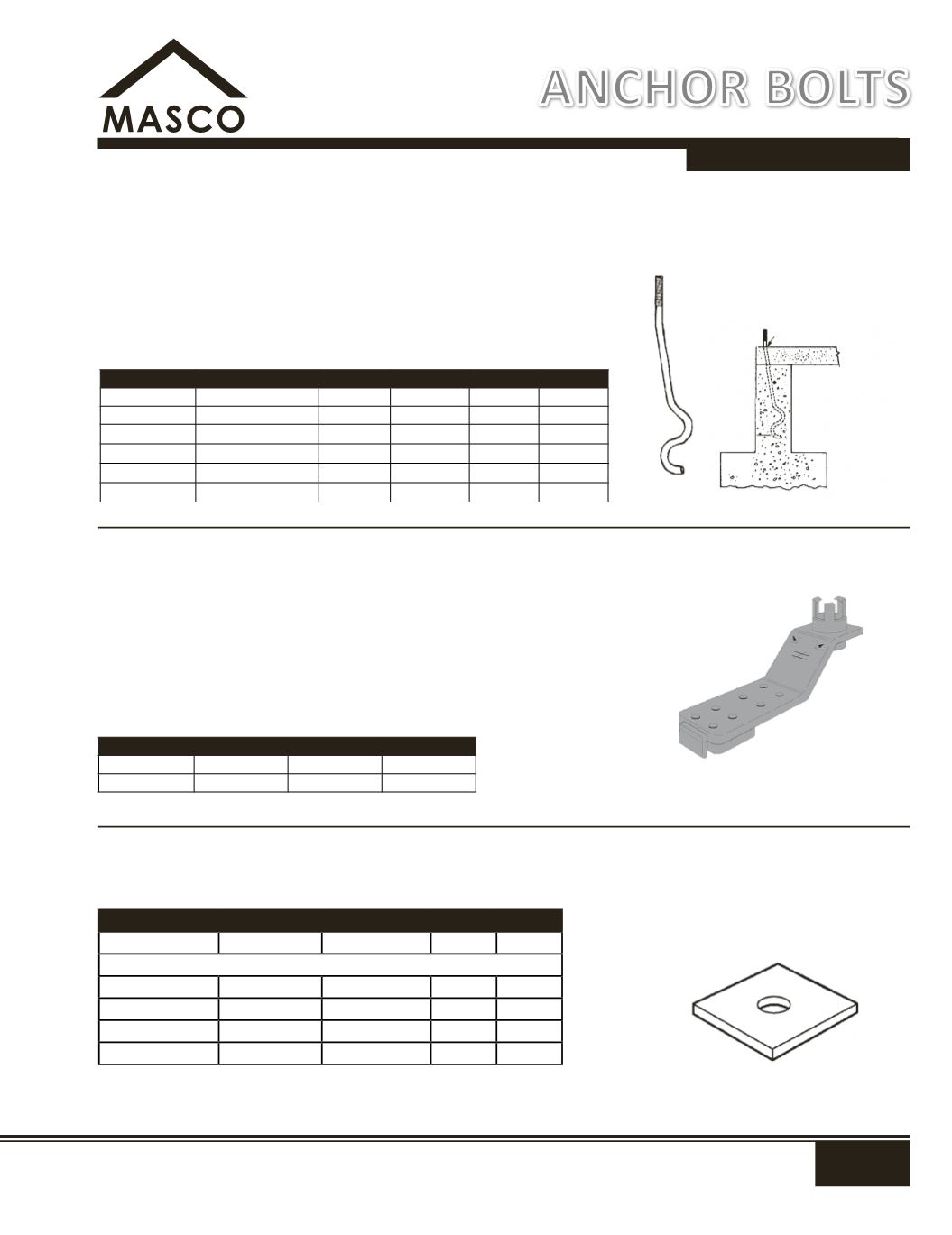

Stab Bolts
The Stab Anchor Bolt is the first tested and inspected friendly anchor bolt for
holdowns. Extensive testing has been done to determine the design load
capacity at a common application, the garage stem wall. Special features
include; Rolled threads for higher tensile capacity; Offset angle reduces
side bursting and provides more concrete cover; Stamped bolt head for
identification after pour; Stamped embedded line to aid installation; and,
Configuration results in minimum rebar interference. Suitable for monolithic
and two pour installations. Nuts and washers are not supplied.
Plate Washers
Used with anchor bolts to provide adequate bearing against wood members.
No.
Description
USP EQ KC EQ Wt (lbs)
Qty/Ctn
SS SSTB16
5/8" x 17-5/8"
STB16
KCAB16 1.38
50
SS SSTB20
5/8" x 21-5/8"
STB20
KCAB20 1.65
50
SS SSTB24
5/8" x 25-5/8"
STB24
KCAB24 1.94
50
SS SSTB28
7/8" x 29-7/8"
STB28
KCAB28 4.53
50
SS SSTB34
7/8" x 34-7/8"
STB34
KCAB34 5.34
50
SS SSTB36
7/8" x 36-7/8"
STB36
KCAB36 5.65
50
No.
Dia
Color
Wt (lbs)
CT AM58
5/8
Blue
7.15
CT AM78
7/8
Green
7.15
Stab Bolt Holder
Designed to hold the anchor in place before the concrete pour, as
required in some jurisdictions. Built-in 2x4 and 2x6 stops eliminate measuring.
Elevated bolt grippers allow easy trowel finishing. Color-coded for easy
size identification. Lightweight, durable and easy to use. Reusable yet
cost-efficient for single application. Threaded grippers hold each bolt in
the exact same location and height. They secure bolt in place without
nut for quicker set-up and tear-down, and protect threads from splashing
concrete. Use the 5/8" and 7/8" Anchor Bolt Holders to secure the SSTB to
the formboard before the concrete pour. Available in 100 per carton.
EMBEDMENT
LINE
SLAB
FOOTING
DOUBLE POUR
INSTALLATION
No.
Size
Rod Diameter
Wt (lbs) Qty/Ctn
PW 122
2" x 2" x 3/16"
1/2"
0.20
100
Hot Dipped Galvanized Finish
PW 582HD
2" x 2" x 3/16"
5/8"
0.75
50
PW 123HD
3" x 3" x 1/4"
1/2"
0.60
50
PW 343HD
3" x 3" x 1/4"
3/4"
0.50
50
PW 583HD
3" x 3" x 1/4"
5/8"
0.60
50
