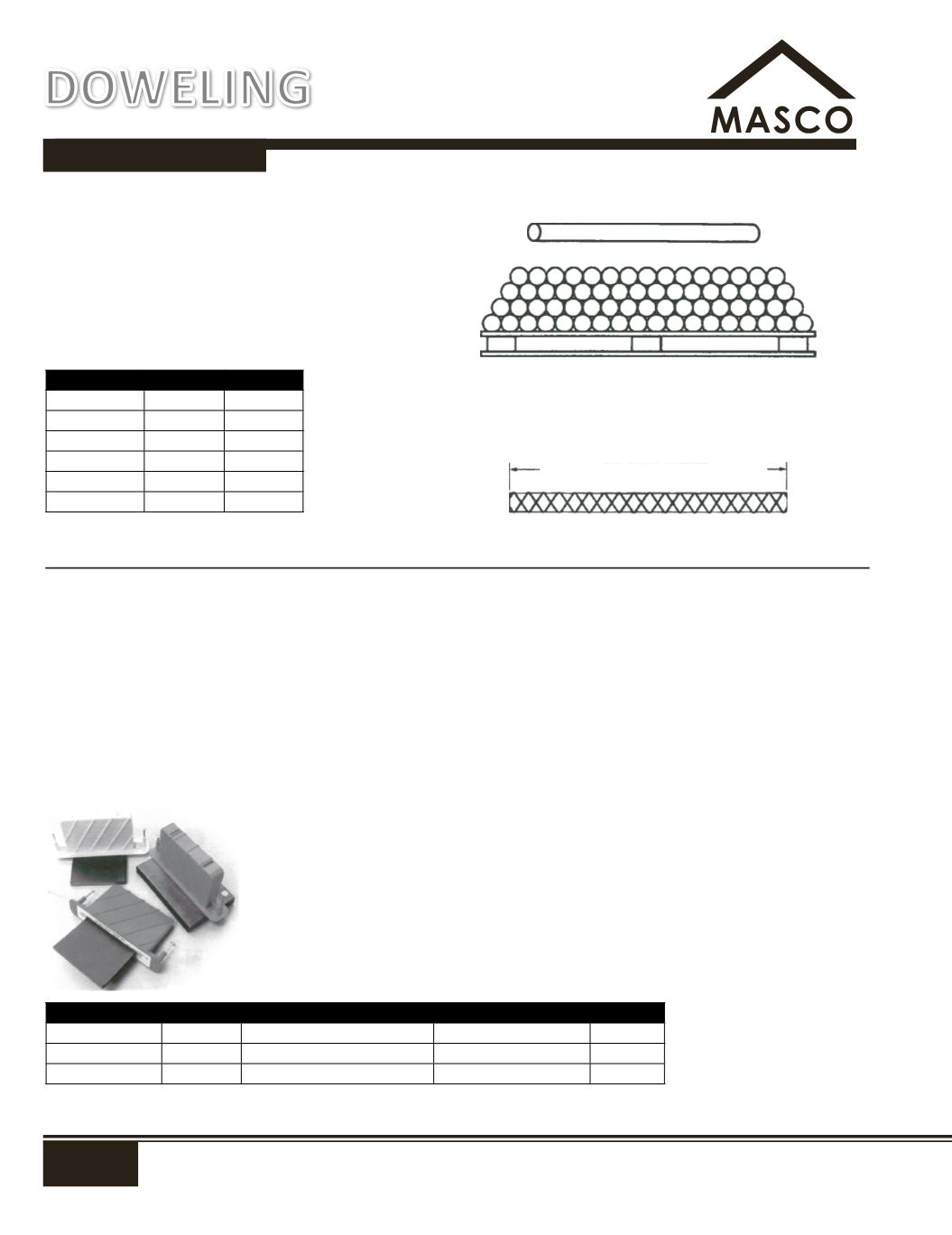

SLAB/HORIZONTAL
Loose Dowels
Available in 1/2", 5/8", 3/4",1",1-1/4"
and 1-1/2" diameter. Any length
available in plain, painted or epoxy
coated. Stocked dowels meet ASTM
A 36. Others specifications available
on requests to meet federal, state,
city and airport requirements.
TIE BARS
Available in #4, #5, and #6 reinforcing steel.
Any length available in plain or epoxy coated.
LENGTH OF DOWEL AS SPECIFIED
Speed Plate Doweling System
Speed Plate reduces the number of dowels required when compared
with conventional doweling systems. This doweling system allows the
installer to increase the center distance between dowels, further
reducing labor and material costs. The larger steel plates provide
greater overall surface area to reduce bearing stresses on concrete.
Non-Tapered plate profile ensures consistent bearing stresses at
joint face and full depth of dowel. The spacing charts below are
conservative and are based on spacing recommendations in
accordance with ACI 360-06.
No.
Size
Wt/Lf (lbs)
CT 12SD
1/2"
0.68
CT 58SD
5/8"
1.05
CT 34SD
3/4"
1.50
CT 1SD
1"
2.68
CT 114SD 1-1/4"
4.20
CT 112SD 1-1/2"
6.03
No.
Slab Depth Speed Plate Dimensions
Center-Center Spacing Wt (lbs)
GS SP14
5" - 6"
1/4" thick x 4" wide x 6" long 18"
GS SP38
7" - 8"
3/8" thick x 4" wide x 6" long 18"
GS SP34
9" - 11"
3/4" thick x 4" wide x 6" long 20"
Note: Values are based on maximum joint opening of 0.20"
Engineered to provide optimal
use of steel.
Integral, sleeve insert eliminates
lateral restraint between concrete
sections.
One-Piece Design with alignment
marks and preinstalled nails makes
installation quick and easy!
Ensures proper dowel alignment at a
construction joint.
Save Labor:
- No form drilling required
- No greasing, spinning, removing or
replacing of dowels
DOWELING
