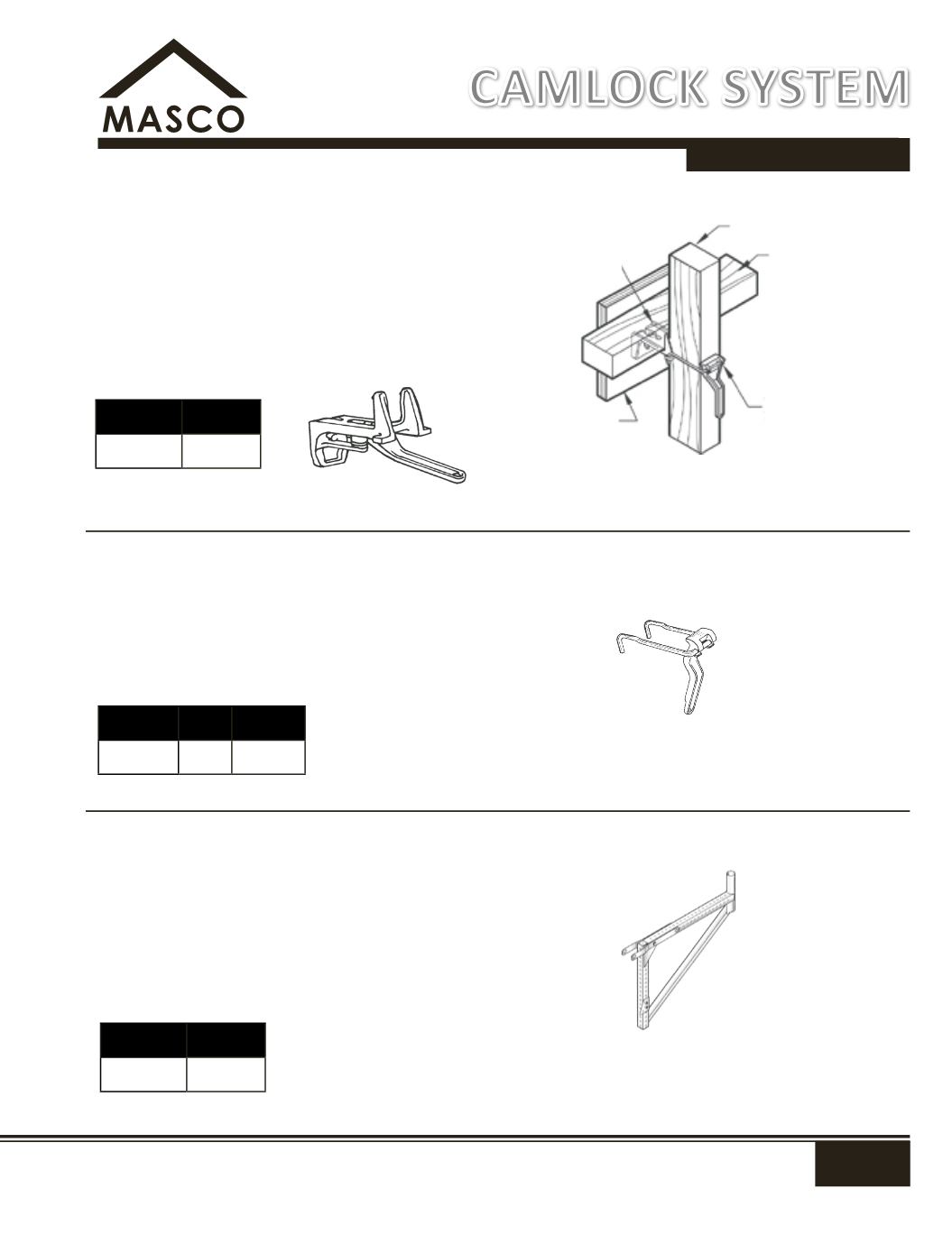

Camlock
The Gates camlock forming system embodies the use
of common forming materials, 2x4 walers with 3/4"
plywood. When used for built-in-place forming no ribbing
or special hardware attached to the panels is necessary
and the use of stiff backs and walers is cut in half. The
rigidity makes it adaptable to all types of construction
and especially desirable for high wall forming.Camlock
bracket holds loop end of ties and walers. Malleable iron
coating with hardened steel wedge.
Scaffold Bracket
Provides space for walkways of two 2x10 planks
beyond the strongbacks. 2x4 guard rail supports are
easily attached to the bracket. Space jacks at 6' - 0"
maximum centers. A stiffback bracket must always be
placed above and below each scaffold bracket. All
2x4 stiff backs used to attach the scafold bracket must
extend to a solid base. Never use short pieces of 2x4's
under the scaffold bracket.
Stiffback Bracket
Stiffback bracket is designed to accommodate a single
liner system of 3/4" plywood and 2x4 horizontal waler.
The cam-action eccentric is capable of taking up the
variations in lumber size. Bracket is designed to be used
with the camlock bracket.
No.
Wt (lbs)
GT 76001 1.8
No.
Size Wt (lbs)
GT 77024 2 x 4 0.5
No.
Wt (lbs)
GT 78111 10.6
VERTICAL FORMING SYSTEMS
CAM-LOCK
BRACKET
PLYWOOD
BLOCK
HORIZONTAL
WALER
CAM-LOCK
STIFF-BACK CAM
2 X 4 STIFF-BACK
CAMLOCK SYSTEM
