HORIZ. FORMING & SHORING

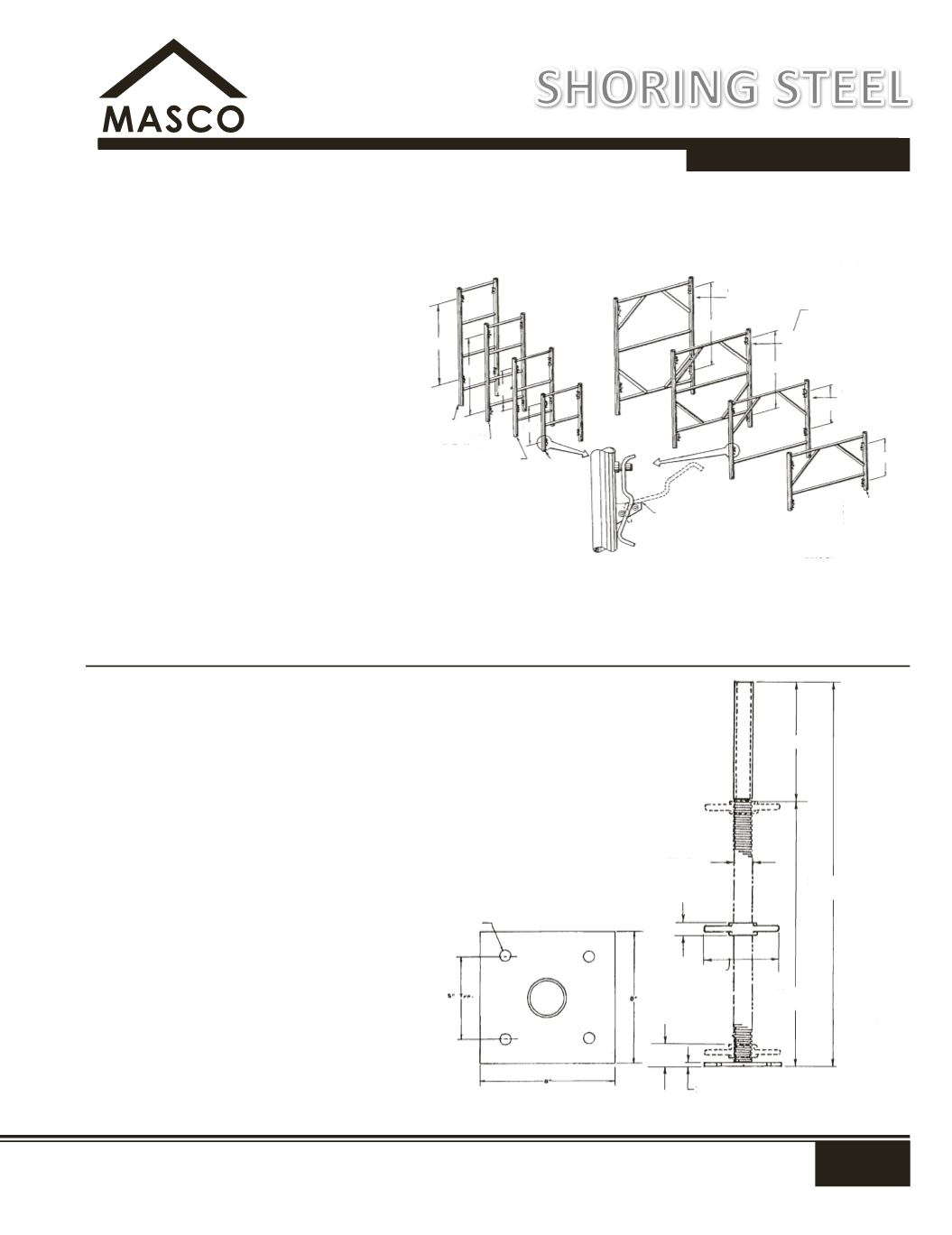

FrameFast
™
Shoring Frames
FrameFast
™
Shoring Frames are rated for 12,000
Ibs. safe load per leg, up to two tiers high. Of
course this load will be increased or decreased
depending on the actual number of tiers used
and total extension of the jacks. Refer to layout
drawings for maximum shore leg capacities.
This frame can be adapted to virtually any
shoring condition, through the use of other
accessories.
There are eight standard sizes of frames
available. Both 2' and 4' wide frames have the
same load capacity.
Crossbrace locking devices, which are a part
of the frame, permits FrameFast Shore Frames
to be erected and dismantled quickly. It locks
in position up to two crossbraces and one
spacer bar. This unique locking arrangement
securely holds the frames together, providing
tower rigidity and safety.
Meter Screw Jack
The screw jacks are used for leveling, fine
adjustment in elevation, and stripping clearance.
The Meter Screw Jack is a full meter (39-3/8") in
length with 1.9" OD, and provides a maximum
extension of 27-3/8",longest in the industry. As
a result, total adjustment range is 25-1/4", from
2-1/8" to 27-3/8".
An 8" x 8" base plate is welded to the jack as
a unit, so the jack can be used at top of the
shore leg or at bottom. The plate has four holes
which are used to clamp the W 8 x 10 stringer
using the Versiform Friction Clamp, or Aluminum
Attachment Clip. These holes are also used to
attach the 8" x 8" U-Head Adapter.
SY 49823
9/16" Dia.
1.90 Dia.
1-3/8"
3/8"
7-7/8"
27-7/8"
Max
39-3/8"
(1 Meter)
END VIEW
2-1/8"
Min.
12"
SY 48886
SY 48885
SY 48884
SY 48883
SY 49203
SY 49202
SY 49201
SY 49200
HEAVY DUTY SHPRING FRAMES
6 X 2 SF
60 lbs.
5 X 2 SF
52.5 lbs. 4 X 2 SF
40 lbs.
2' WIDE SHORE FRAMES
3 X 2 SF
3.5 lbs.
Droplock
4' Wide Shore Frames
6 X 4 SF
66 lbs.
62 lbs.
5 X 4 SF
(Height x Width)
4 X 4 SF
43 lbs.
3 x 4 SF
36 lbs.
48"
48"
24"
24"
48"
48"
24"
24"
SHORING STEEL
