FORMING/SYSTEMS
M A S C O . N E T

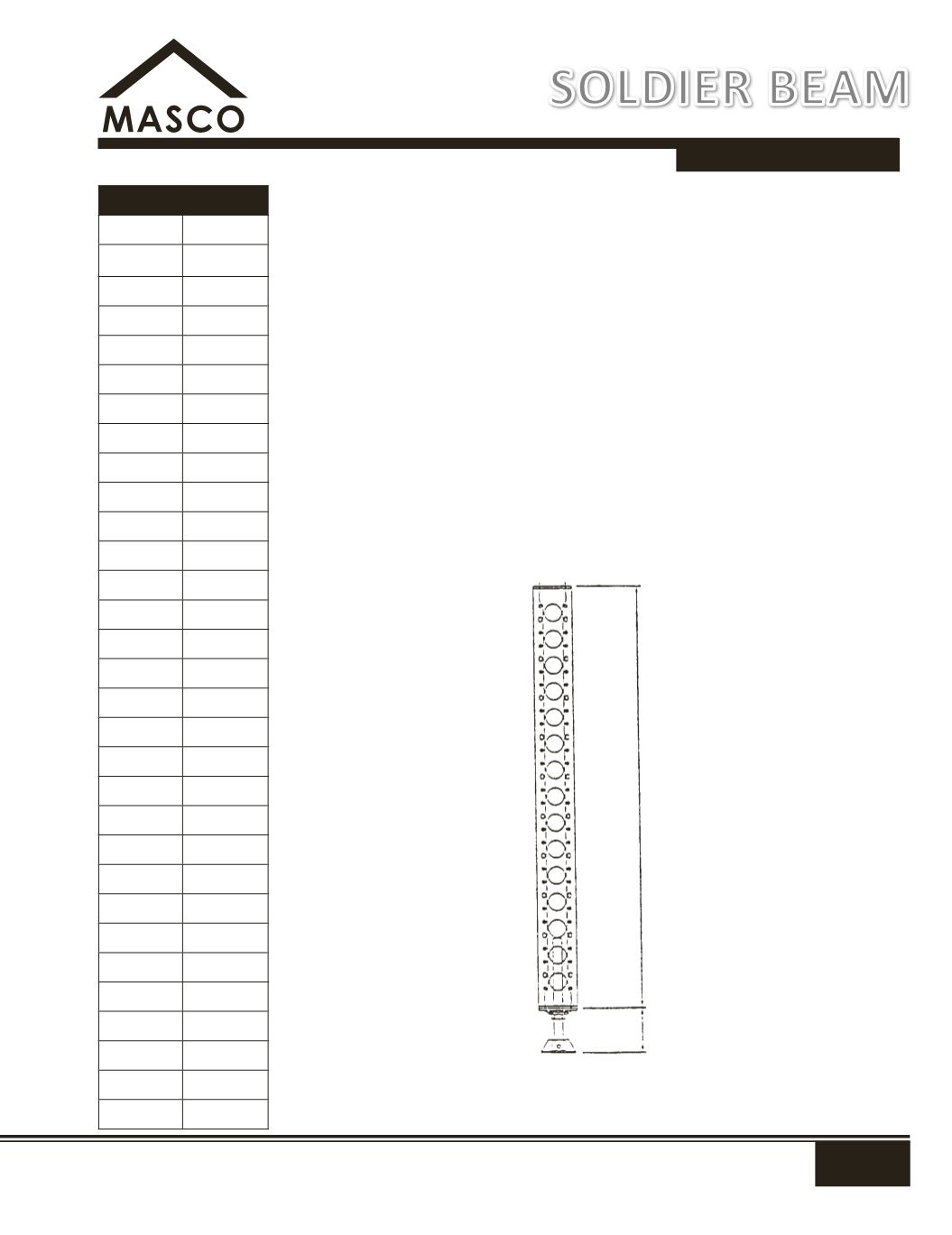

HORIZ. FORMING & HORING
SOLDIERS AS A POST SHORE
GENERAL NOTES:
All loads include a 3 to 1 factor of safety.
Load capacities are based on 12" strut jack extension.
Gangs shorter than 28'-0" did not vary more than 3/8" in
straightness.
Gangs 28'-0" and longer did not vary more than 1" in
straightness.
Post shore should be plumb to 1/8" in 3'-0" or 2" total.
Whichever is less.
All post shore lengths are unbraced.
Brace as required for erection purposes and stability.
Reference diagram for orientation of strut jack to the
strong axis of the soldier.
LENGTH
CAPACITY
2' - 0"
37.3 kips
↓
↓
12' - 0"
37.3 kips
13' - 0"
37.1 kips
14' - 0"
36.8 kips
15' - 0"
36.3 kips
16' - 0"
35.5 kips
17' - 0"
34.3 kips
18' - 0"
32.9 kips
19' - 0"
31.2 kips
20' - 0"
29.4 kips
21' - 0"
27.7 kips
22' - 0"
26.3 kips
23' - 0"
25.1 kips
24' - 0"
24.1 kips
25' - 0"
23.3 kips
26' - 0"
22.7 kips
27' - 0"
22.2 kips
28' - 0"
21.8 kips
29' - 0"
21.5 kips
30' - 0"
21.1 kips
31' - 0"
20.8 kips
32' - 0"
20.4 kips
33' - 0"
20.0 kips
34' - 0"
19.5 kips
35' - 0"
18.8 kips
36' - 0"
18.1 kips
37' - 0"
17.2 kips
38' - 0"
16.3 kips
39' - 0"
15.3 kips
40' - 0'
14.3 kips
LENGTH
1'-0"
SOLDIER BEAM
