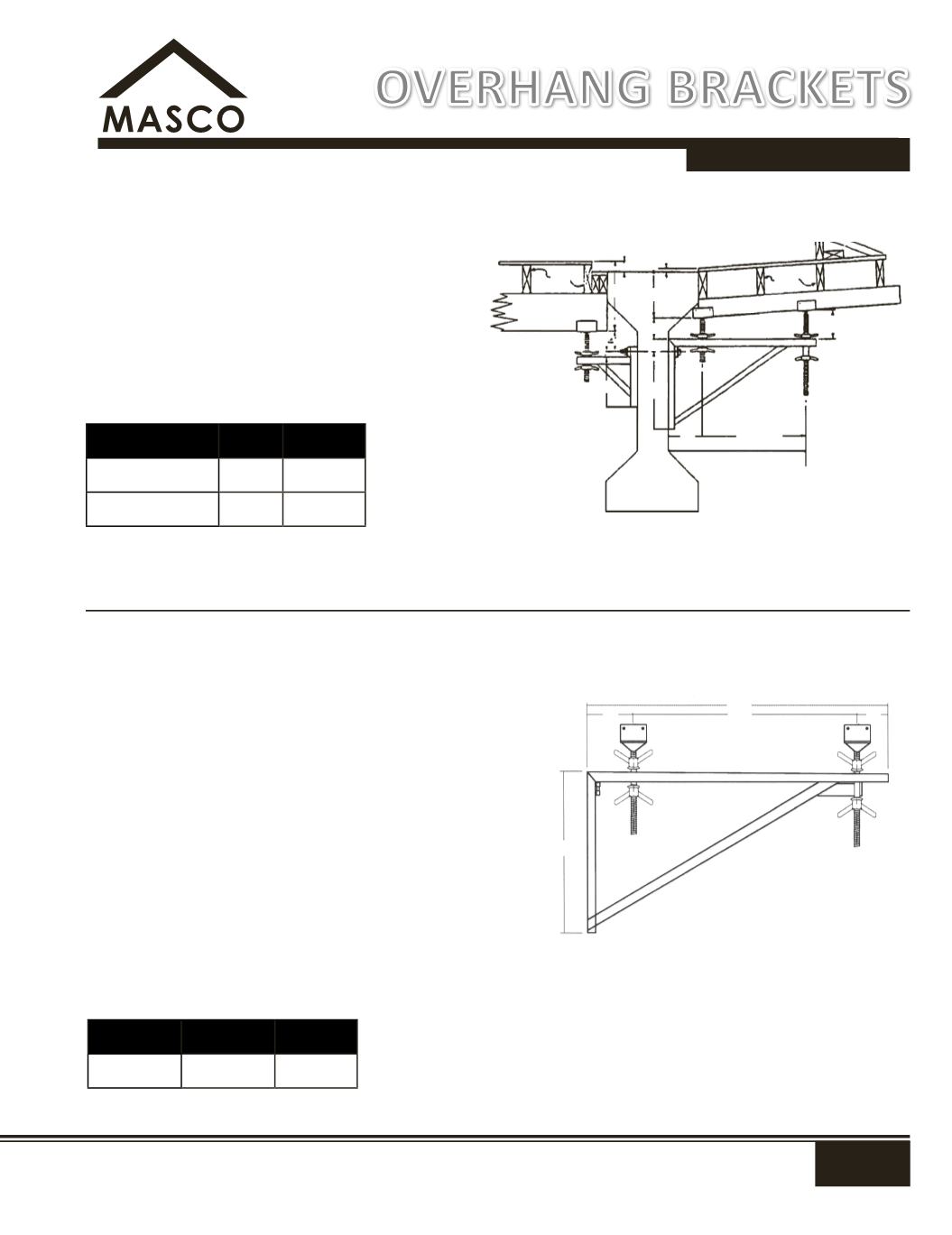

Overhang Brackets
Overhang brackets with up to
4,000 lb capacity,
depending on anchorage, reduces number of
hangers or brackets required. Forming for haunches or
fillets simplified. Eliminates cutting deck forms and joists
for hanger rods and welding of hangers. Inserts for 3/4"
high strength bolts should be positioned when girder
is cast or fabricated. Brackets should be bolted tightly
to girder.
No.
Size
Wt (lbs)
CFA WOB
42"
50.0
CFA WSB
10"
18.0
4" x 8"
2
½
"
1"
2" x 6"
2" x 10"
4" x 4"
5"
7"
2"
LARGE 35"
42"
7"
10"
5"
2
½
"
LARGE
22
½
"
14"
10"
HORIZ. FORMING & SHORING
C-49W Bridge Overhang Bracket
This bridge overhang bracket is engineered for West
Coast Bridge Construction. The screw jacks extend up
to 6". Steel support frame is stable to resist movement.
Product meets ANSI Specification A 10.9, Sections 6.5.1,
6.6.1, 7.2.1 and ACI 347 Specification 2.4. It has a rated
capacity of 4,000 lbs. Total load with an Anchor Safety
Factor (FOS) = 3:1. The total load spread between
both inner and outer jacks must not exceed 4,000 lbs.
Maximum load to the outer jack must not exceed 1,500
lbs. and the maximum load to the inner jack must not
exceed 3,000 lbs.
To achieve the bracket maximum load, the concrete
anchor and anchor bolt must be capable of
supporting a combined:
SWL Shear = 4,000 lbs.
SWL Pull-out = 3,830 lbs.
47"
35"
5"
7"
25"
No.
Description Wt (lbs)
DS WOBDS C-49W 45.0
OVERHANG BRACKETS
