HORIZ. FORMING & SHORING
Warning:
Overhang Brackets should be adjusted to proper grade during normal "dry run" operations.
DO NOT attempt an upward adjustment during the concrete pouring operations. Lowering the bracket adjustment
during the concrete pour is permissible.
No.
Description
Wt (lbs)
SY 43720
C-89L (90")
159.0
SY 43721
C-89 (72")
145.0
72" or 90" Standard Length
¾" Diameter Bolt Holder
Vertical Extension
Adjusting
Nut
Adjustment
Range
(Overall
Height)
4" (72"
Model)
6" (90"
Model)

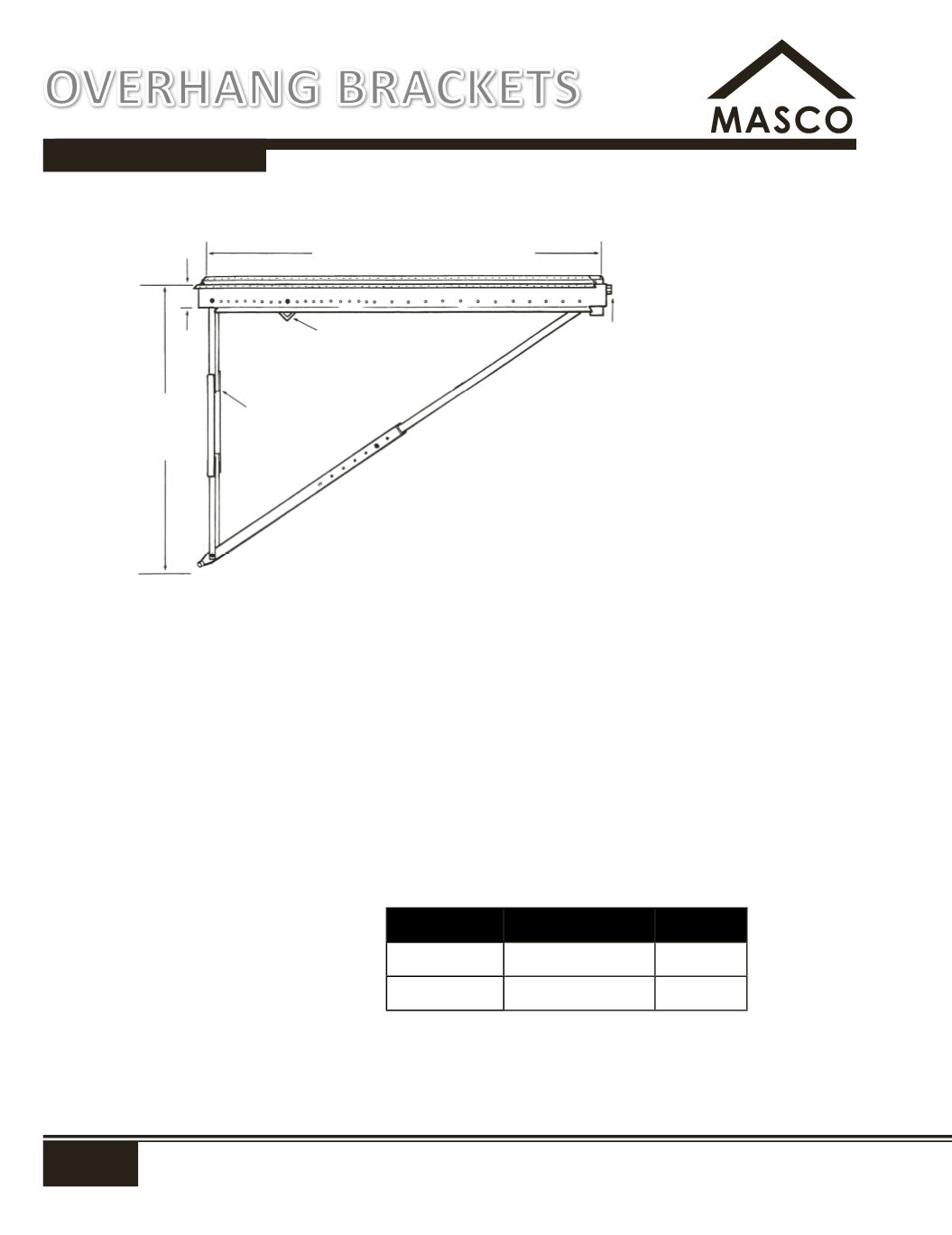

Heavy Duty Overhang Bracket
C-89 and C-89-L Heavy Duty Bridge Overhang
Brackets are designed for maximum adjustment
and strength to meet the rigors of heavy cantilever/
overhang applications. The C-89 bracket features
72" long, four inch horizontal channels and an overall
vertical adjustment range of 27
⅝
" to 66
¾
". The C-89-L
bracket has 90" long, six inch horizontal channels and
an overall vertical adjustment of 29
⅝
" to 68
¾
".
Both brackets come equipped with nail holes in the
top of the horizontal channels for attaching 2x6 or 2x8
lumber (flat) and both brackets have built-in guardrail
receptacles for 2x4 guardrail posts.
The C-89 and C-89-L brackets can be used equally
well on steel or precast concrete bridge girders with
the appropriate
¾
" C-60 45
o
Pres-Steel Hanger (Type
9-A). The brackets can be shipped "knocked down"
for easier handling and shipping and then preset on
the ground at the job site.
