SWL provides a factor of safety of approximately 2 to 1.

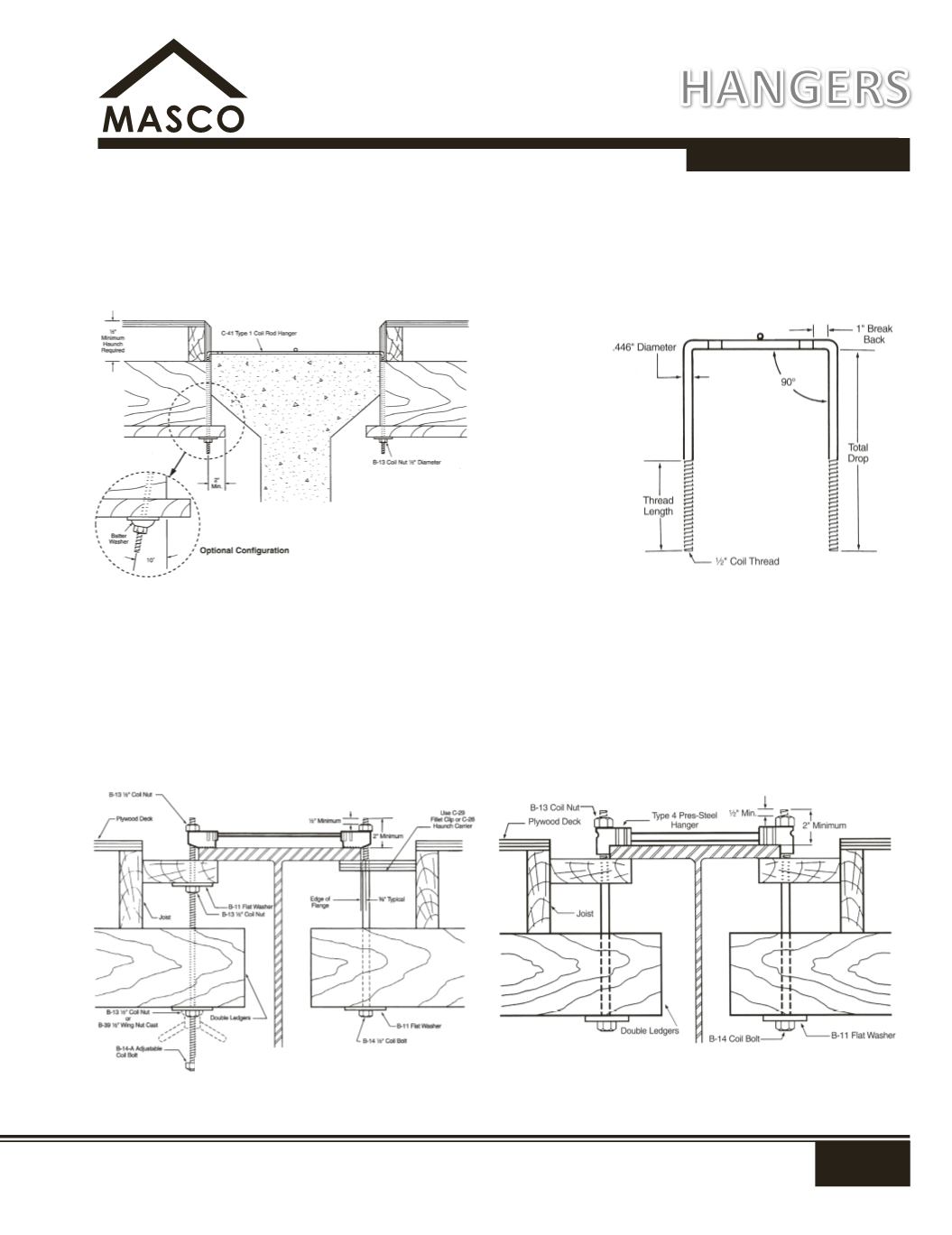

C-41 Coil Rod Type 1
The C-41 Coil Rod Hanger is a simple yet strong method of hanging formwork from structural steel beams with haunches of any height.
These hangers are designed to break back inside the concrete. Break back is accomplished by placing a length of pipe over the
exposed end of the hanger and working the end back and forth. Can be used to form haunches of 1/2" or more. SWL 4,500 per side.
Hangers must be equally loaded on both sides.
Note:
Hanger is fabricated 1/2" wider than flange width specified.
C-60 Pres Steel Type 4
The C-60 Pres-Steel Hanger-Type 4 is fabricated with two 90° 1/2"
interlock type end sections welded to a substantial wire strut. The
Type 4 hanger is a high strength hanger used to support bridge
deck interior formwork and is especially designed to react to lateral
force prevalent in many forming conditions. Safe working load is
6,000 lbs. per side. Hangers must be equally loaded on both sides.
C-60 Pres Steel Type 1
The C-60 Pres-Steel Hanger-Type 1 is used for a zero haunch
condition and consists of two 1/2" end sections welded to a
single wire strut. The hanger allows installation and adjustment
from the top of the formwork and works equally well on steel or
precast concrete beams. Safe working load is 3,500 lbs. per side.
Hangers must be equally loaded on both sides.
Note:
The C-60 Pres-Steel Hanger-Type 1 is designed to be used
with full bearing under the end sections. It is essential to check
the exact beam width dimensions before ordering.
TYPE 1
Adjustable coil bolt assembly
TYPE 4
Fixed length coil bolt assembly
HORIZ. FORMING & SHORING
HANGERS
