Bracket Extender
The C-54 Extender attaches to the horizontal
member of C-49 Bridge Overhang Brackets. It
extends the usable walkway working surface of
these brackets. For walkway, one C-54 Bridge
Overhang Extender is required for each bracket.
HORIZ. FORMING & SHORING

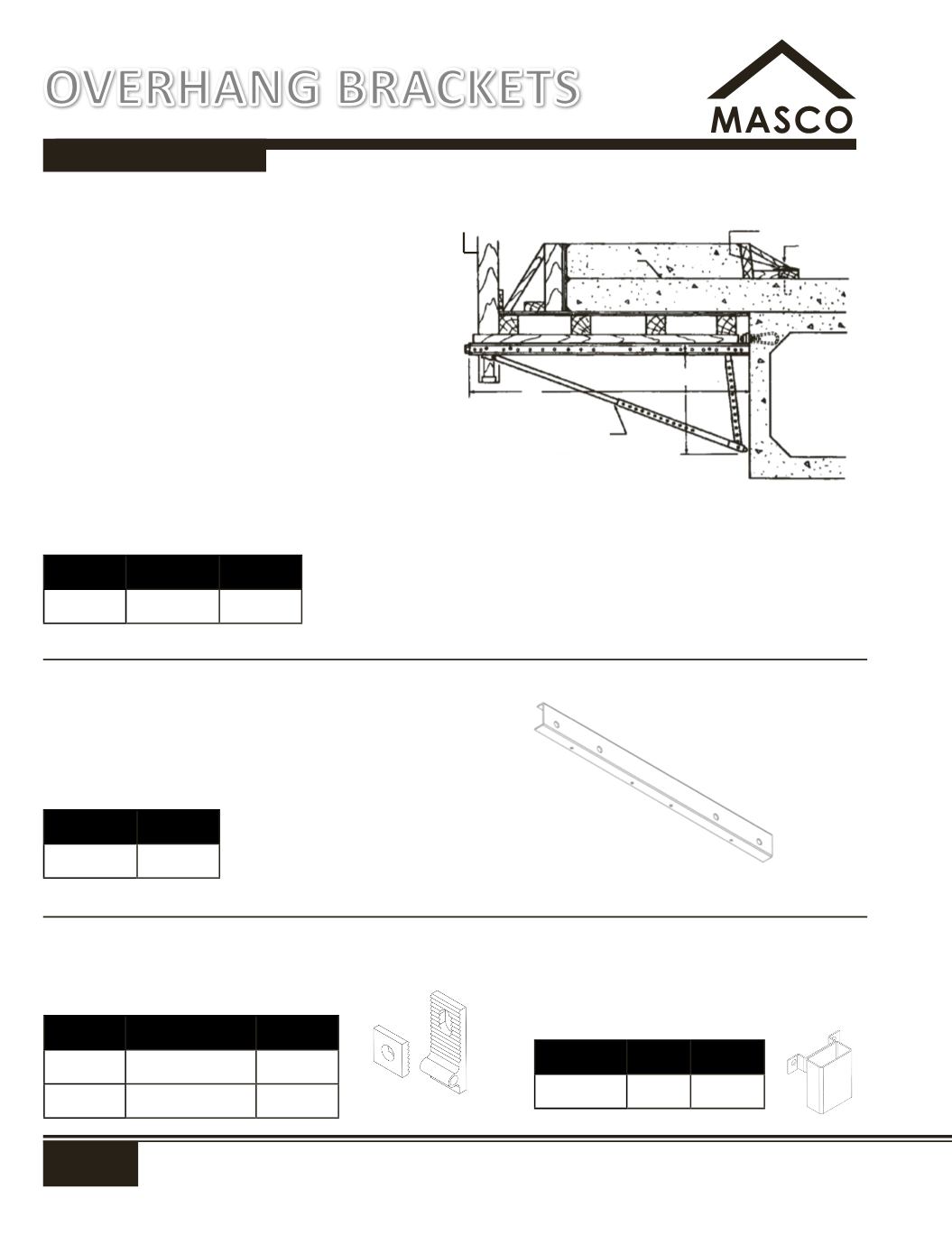

Adjustable Overhang Bracket
The Versatile Bridge Overhang Bracket features
maximum adjustability to meet the overhang forming
requirements of both steel and precast/prestressed
concrete bridge beams. The 22" of adjustment
provided by the diagonal leg combined with the
20" of adjustment in the vertical leg, both adjustable
in increments of 2", allows for maximum versatility
in overhang formwork design. Adjustment is easily
accomplished using one 1/2" NC Bolt and Nut per leg
meeting ASTM Specification A449. The adjustable nut
controls 21" of vertical movement at the outboard end
of the bracket to handle the various slopes encountered
on bridge overhangs. Overhang brackets set 1/4" to 1/2"
above finished grade allows for dead load deflections. If
required, final adjustment to grade may be made during
the placement of concrete. The adjusting nut also allows
the Overhang Bracket to be adjusted downward for
easier stripping of the overhang formwork.
ADJUSTMENT
PLATE
WALL
BRACKET
Wall Plate Assembly
For C-49 adjustable overhang bracket
used with 3/4" diameter bolt.
Guard Rail Receptacle
Attaches to the C-49 adjustable overhang
bracket with 2 each 1/2" dia. x 3" NC bolts
with nuts.
Job Built Guardrail
A-15 Steel Wedge
"J" Hook Tie
Bridge Overhang
Bracket
23"
54"
Const. Joint
2nd Pour
1st Pour
No.
Wt (lbs)
DS 60330
3.0
No.
Description Wt (lbs)
DS 95647 C-49
45.0
No.
Size
Wt (lbs)
DS 93790 Adjustable Plate 0.40
DS 93791 Wall Bracket
1.35
No.
Size Wt (lbs)
DS 60320
2 x 4
3.5
OVERHANG BRACKETS
