HORIZ. FORMING & SHORING

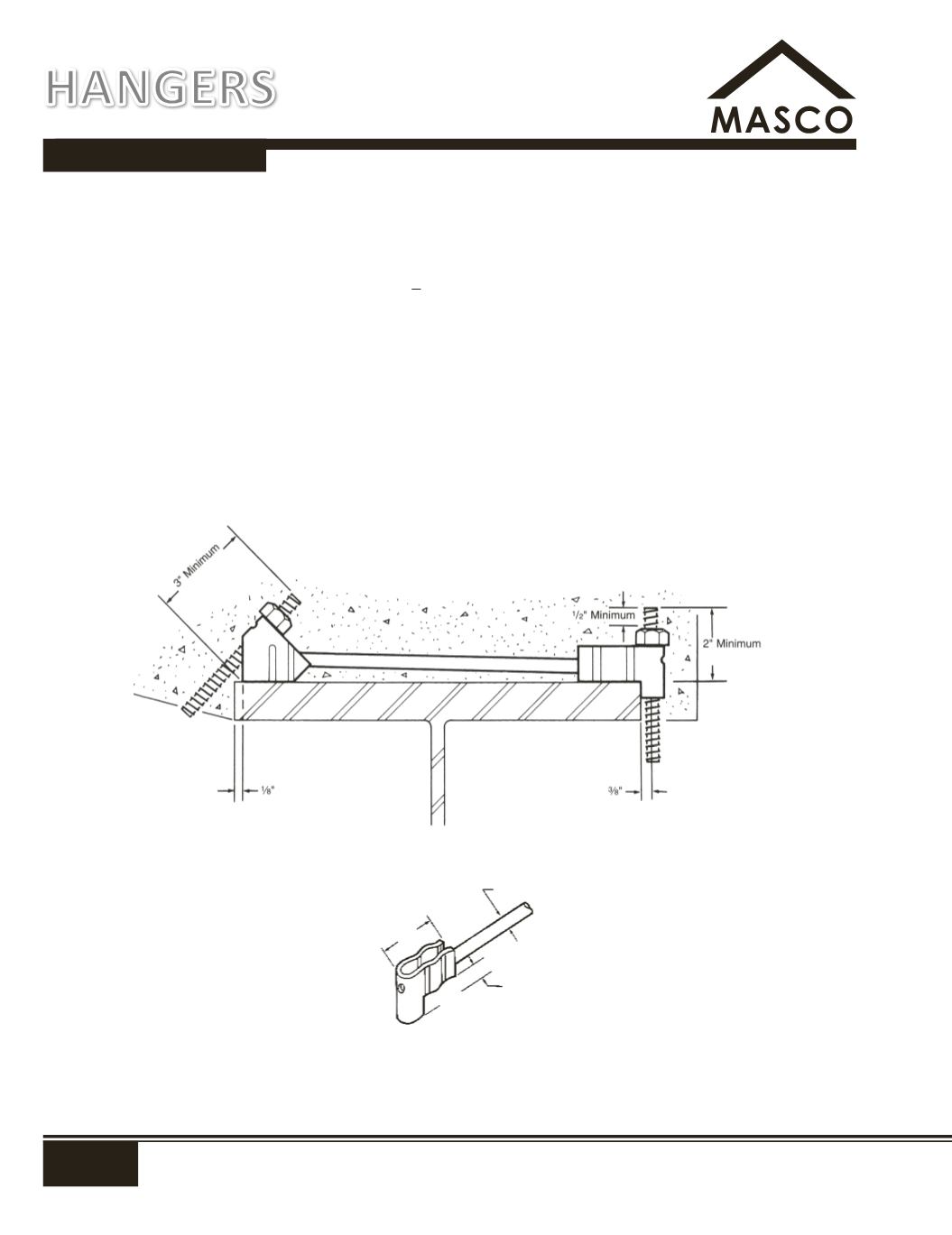

C-60 Pres-Steel Type 4A
The C-60 Type 4A Pres Steel Hanger is used to suspend bridge overhang brackets when a finishing machine is
supported on the overhang formwork. The user shall install the overhang brackets, hangers and form materials in such
a manner that the Coil Bolts or Coil Rods make a 45° + 5° angle with the top surface of the bridge beam.
Qualified personnel must accurately calculate the overhang bracket spacing so that the applied load passing
through the Coil Bolt or Coil Rod is equal to, or less than the safe working load of the hanger.
Interior span loads must be calculated to determine the proper hanger spacing. When calculating interior span loads,
always add a minimum of 50 pounds per square foot live load to the dead weight of the concrete. Safe working load
is 6,000 lbs. per side.
Note:
The C-60 Pres-Steel Hanger-Type 1 is designed to be used with full bearing under the end sections. It is essential
to check the exact beam width dimensions before ordering.
SWL provides a factor of safety of approximately 2 to 1.
.446 Diameter
⅝' Interlock
DETAIL OF 90
O
END SECTION
2
½
"
HANGERS
