VERTICAL FORMING SYSTEMS
Wall Ties

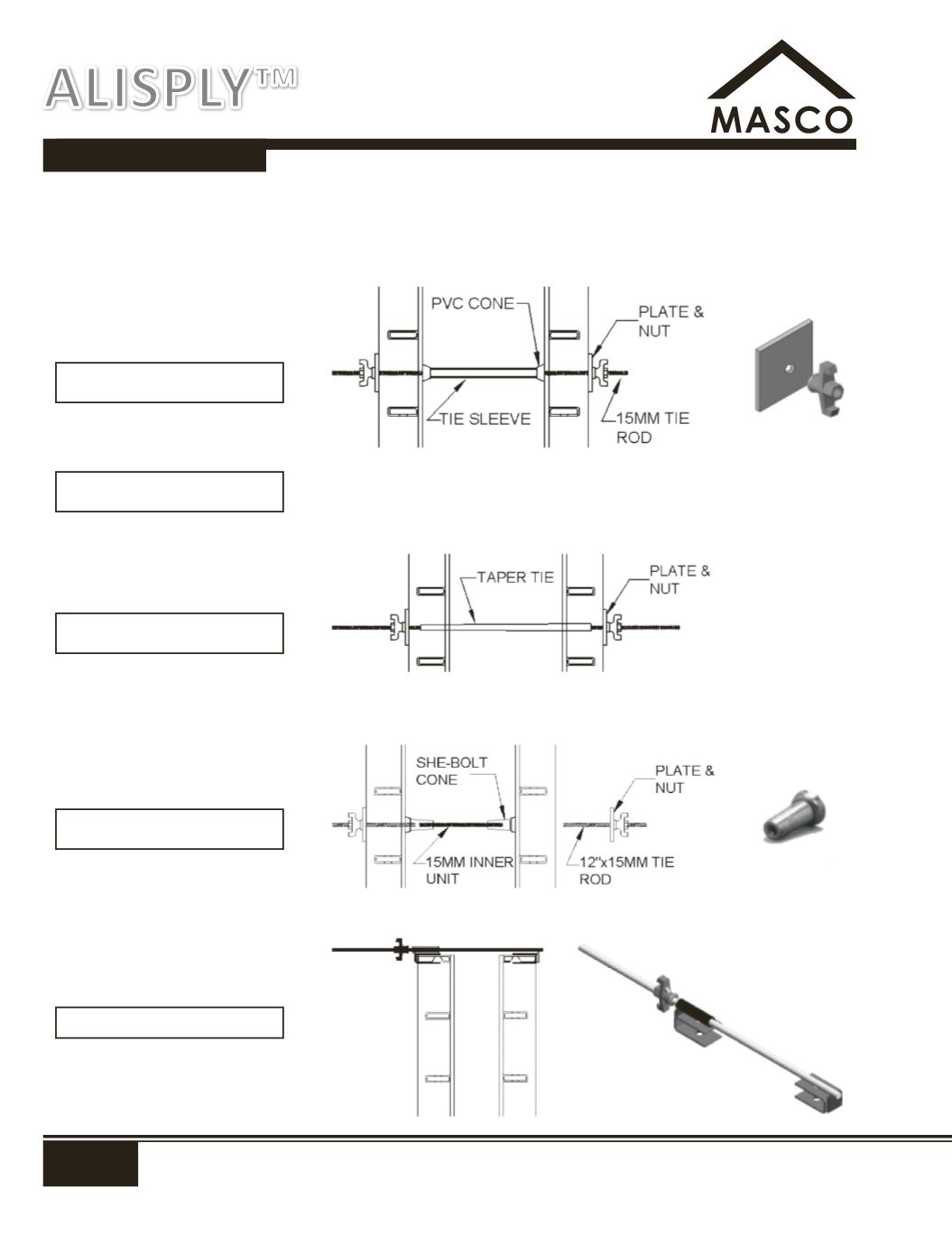

Wall Ties and their installation must be in compliance with industry standards and safe practices established by
the American Concrete Institute, The American National Standards Institute, The Occupational Safety and Health
Administration, and the Scaffolding, Shoring and Forming Institute. Illustrations and capacities of Taper Ties, Euro Thread
Bar, Top Tie and She-Bolt Ties are shown below.
SWL Capacity = 18,400 lbs
SWL Capacity = 19,100 lbs
SWL Capacity = 4,134
SWL Capacity = 18,400 lbs
15MM DCR BAR TIE
15MM THREAD BAR TIE
SWL Capacity = 19,100 lbs
15 MM TAPER TIE
⅝" to ¾" taper
(41" &49" Lengths w/ 11½" threading
each side + 1" ends)
SHE-BOLT CONE TIE
TOP TIE
SY 54500 - 0" TO 18" WALL THICKNESS
SY 54501 - 18" TO 36" WALL THICKNESS
TOP TIE
SHE-BOLT CONE
PLATE AND NUT
ALISPLY™
