VERTICAL FORMING SYSTEMS

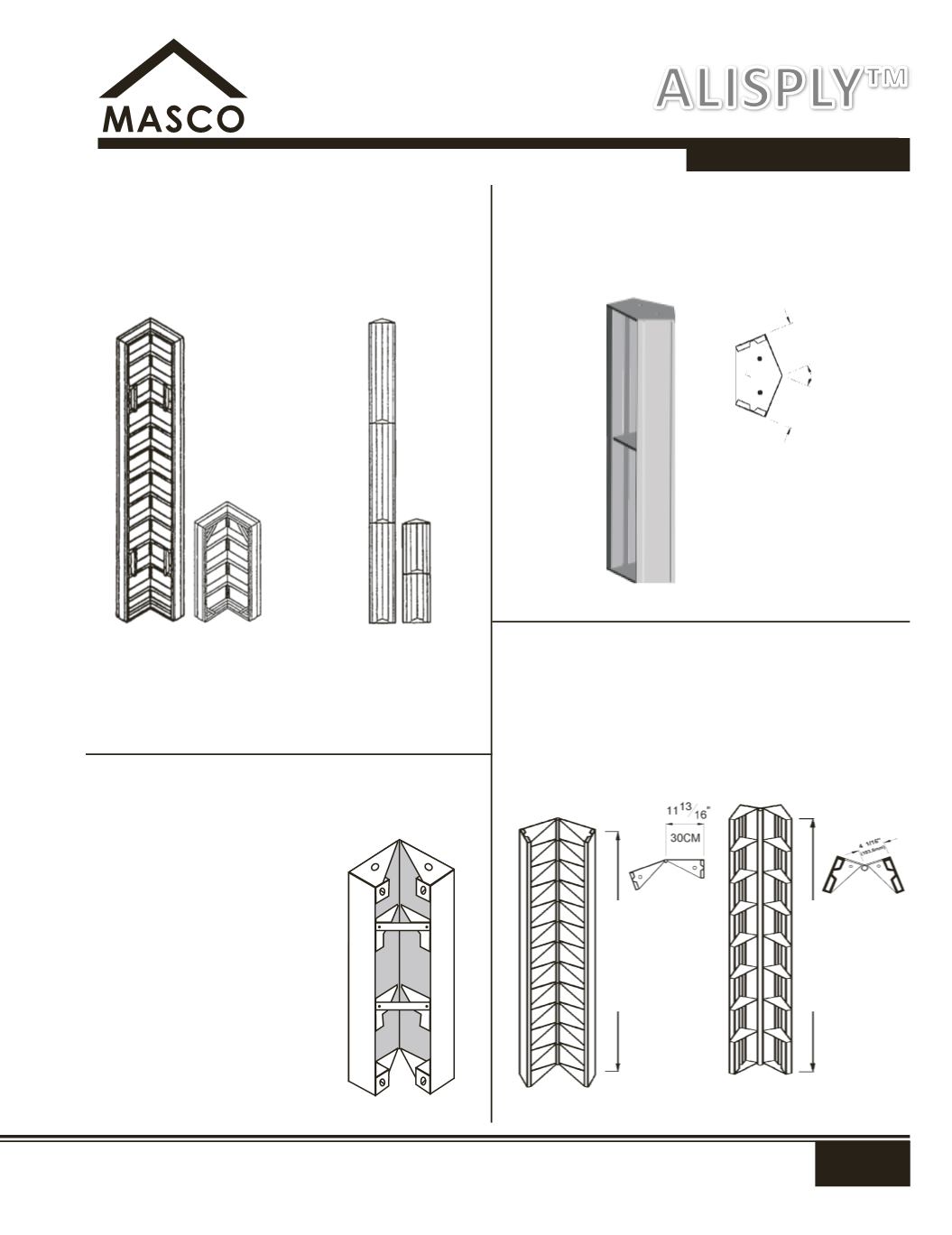

Standard Corners
Alisply
™
Standard 90° Inside and Outside Corners are available in
1 m and 3 m heights. The Inside Corners come in three face size
dimensions, 25 cm x 25 cm, 30 cm x 30 cm, and 35 cm x 35 cm
(approximately 10" x 10", 12" x 12", and 14" x 14"). Outside Corners
are constructed of reinforced galvanized steel.
Hinged Corners
The Inside Hinged Corner may be used to form inside corners
from 90° down to 295°. They are 30 cm x 30 cm (approximately
11-13/16" x 11-13/16") and are available in 1 m and 3 m heights.
The Outside Hinged Corner forms outside corners from 200° down
to 29°. The Outside Hinge has a dimension of 10.35 cm x 10.35 cm
(4" x 4"), and are available in 1 m and 3 m heights.
Caution
: Due to the inherent flexibility of hinges, corner forms must
be braced and blocked as required.
Bay Corners
Inside Bay Corners opposite Outside Hinge Corners form a
135° angle corner. The Inside Bay Corner has a 20 cm x 20 cm
(approximately 7-7/8" x 7-7/8") face dimension, and are available
in 1 m, 2 m and 3 m heights. Bay Corners can be used horizontally
or vertically to form 135° corners or to form wall haunches and “Y”
Walls
Standard 90
o
Corners
Inside Corners
Outside Corners
200
[7-7/8"]
200
[7-7/8"]
Bay Corners
Inside Hinged Corner
Outside Hinged Corner
Hinged Corners
1M & 3M Heights
1M & 3M Heights
Inside Flex Corner
This 30cm x 30cm flexible inside corner
for the Alisply
™
forming system helps
alleviate stripping issues associated
with the standard rigid inside corners for
Alisply
™
.
It has the ability to flex up to 3
o
after
the attached pins are placed in the
unlocked position. These pins can be
unlocked but stay with the form to
eliminate lost pieces. The corner comes
in the 2 standard heights of 1 meter and
3 meters.
SY 54535
30 x 30 x 100 | Inside Flexible Corner
SY 54536
30 x 30 x 300 | Inside Flexible Corner
ALISPLY™
