Panels and Fillers
Alisply
™
, a modular metric system, consists of a galvanized steel frame and a phenolic resin coated 15 mm (5/8")
plywood face. The plywood face is recessed into the steel frame and silicone caulk joint filler around the perimeter
protects the face from moisture and edge damage. Panels and fillers are designed based on a maximum allowable
concrete pressure of 1250 psf.
Note
: 1140 psf allowable when 200x300 panel is used.
The Alisply system is available in widths from 25 to 200 cm, and heights of 1 and 3 meters. A 100 x 200 cm panel is also
available, but without the filler heights. Crossmembers are spaced at approximately 25 cm (10 inches) on centers with
four tie locations per panel and filler. Alisply forms can be used horizontally or vertically, even within the same gang.
The siderail of the Alisply panels and fillers are uniquely designed to except the Alisply connecting clamps. The gang
size determines the number of clamps required.
200x300
PANEL
SY 54476
100x300
PANEL
SY 54475
80X300
PANEL
SY 54474
60X300
FILLER
SY 54473
50X300
FILLER
SY 54472
40X300
FILLER
SY 54471
35X300
FILLER
SY 54470
30X300
FILLER
SY 54469
25X300
FILLER
SY 54468
100X200
PANEL
SY 54477
100X100
PANEL
SY 54462
80X100
FILLER
SY 54461
60X100
FILLER
SY 54460
50X100
FILLER
SY 54459
40X100
FILLER
SY 54458
40X100
FILLER
SY 54458
35X100
FILLER
SY 54457
25X100
FILLER
SY 54455

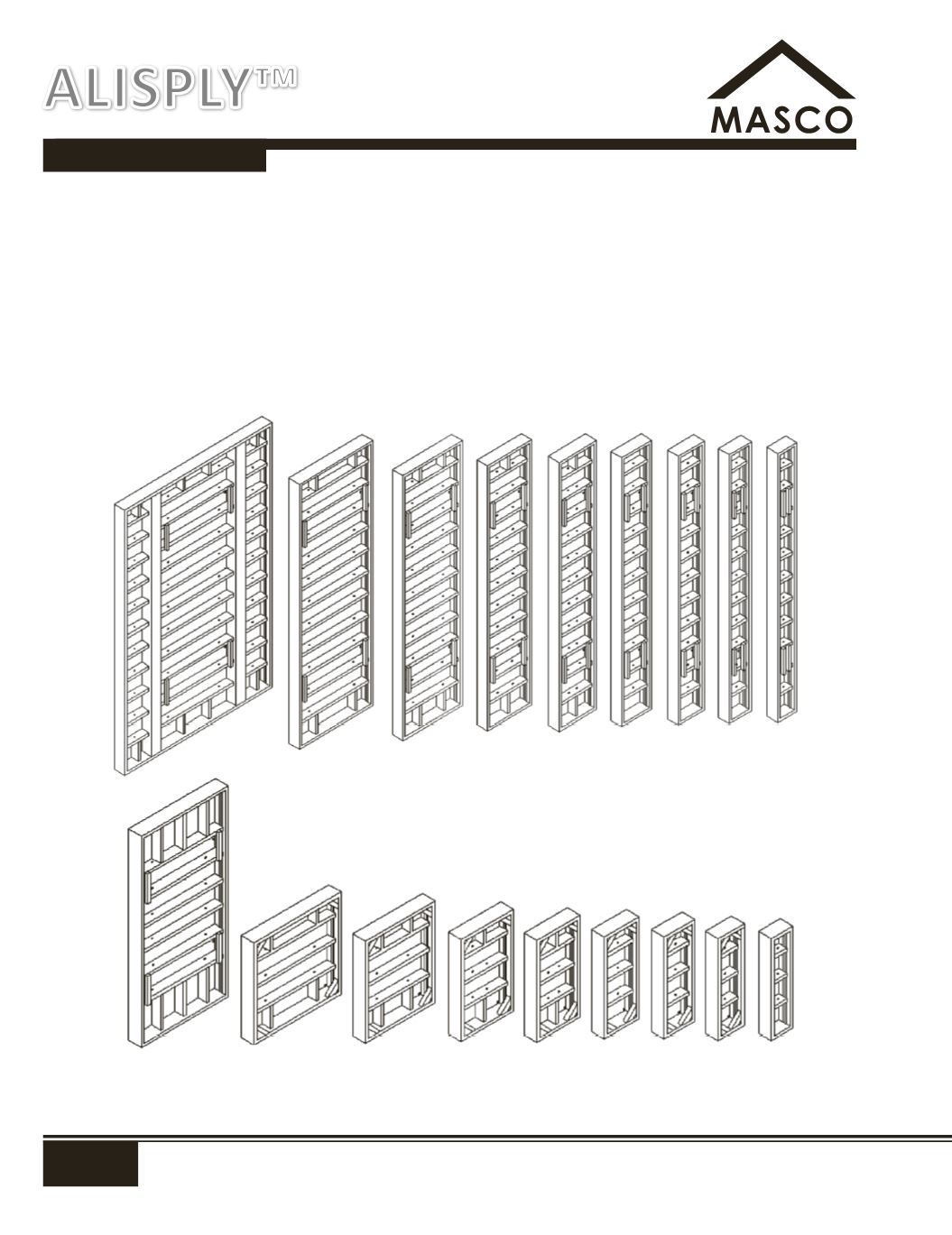

Alisply Panel & Filler Sizes
VERTICAL FORMING SYSTEMS
ALISPLY™
