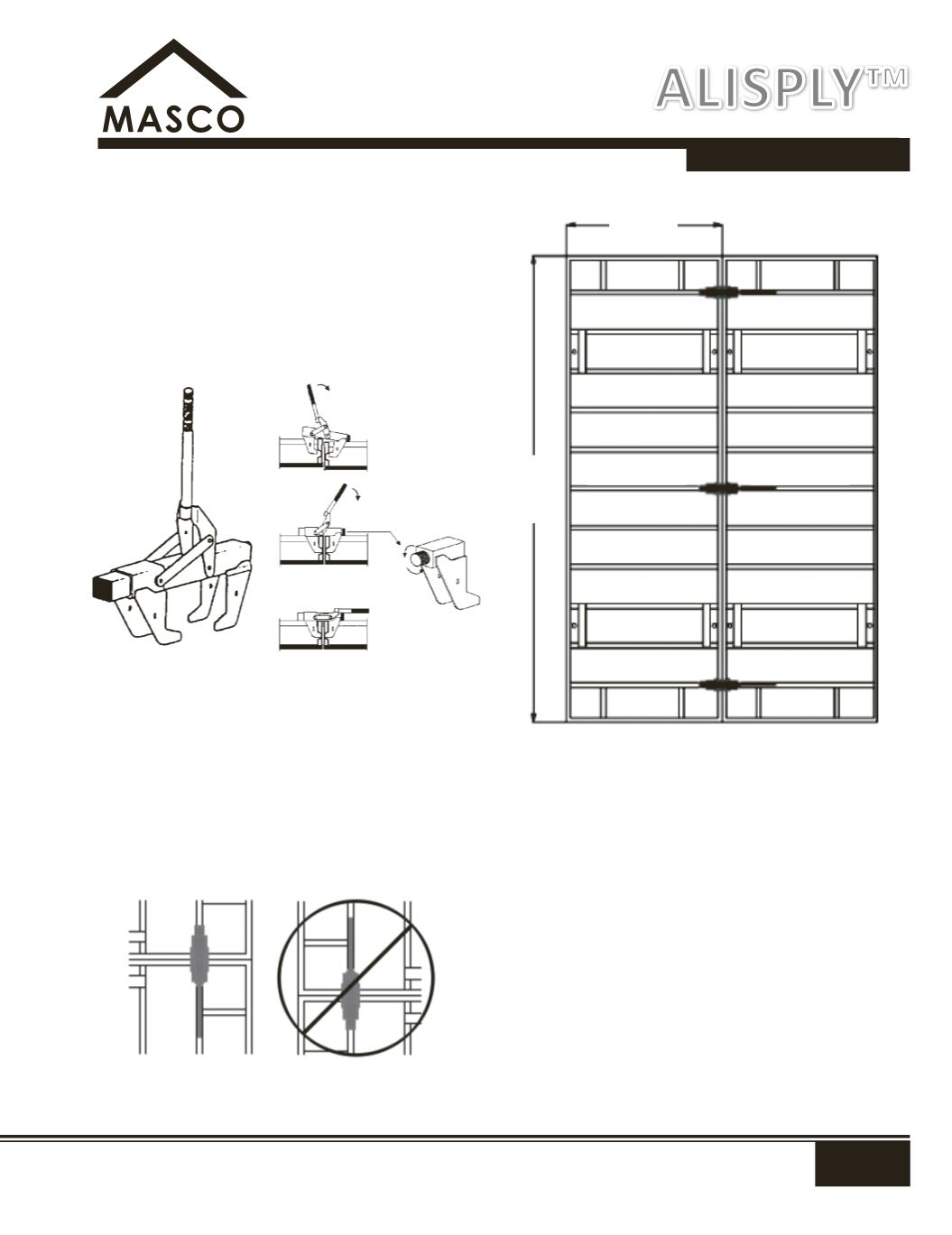

Connecting Clamps
Alisply clamps connect panels and fillers, and eliminate
the need for sockets wrenches or any other specials tools
typically required for other forming systems.
The number of clamps will depend on the size of the
gang. Typically, three clamps are required for a vertical
300 cm panel or filler. Additional clamps are required
at horizontal joints due to the forces transferred by the
weight and size of the gang.
Caution:
To avoid disengagement from the panel, all
clamp handles must be pointed in the down position at all
horizontal joints.
3' - 3
⅛
"
(1M)
100x300
Connecting Clamp and Attachment
SY 54550
VERTICAL FORMING SYSTEMS
Clamp Orientation for Horizontal Joints
Typical Connecting Clamp Configuration
for Vertical Joints
9' - 10
⅛
"
(3M)
3' - 3
⅜
"
(L )
100x300
ALISPLY™
