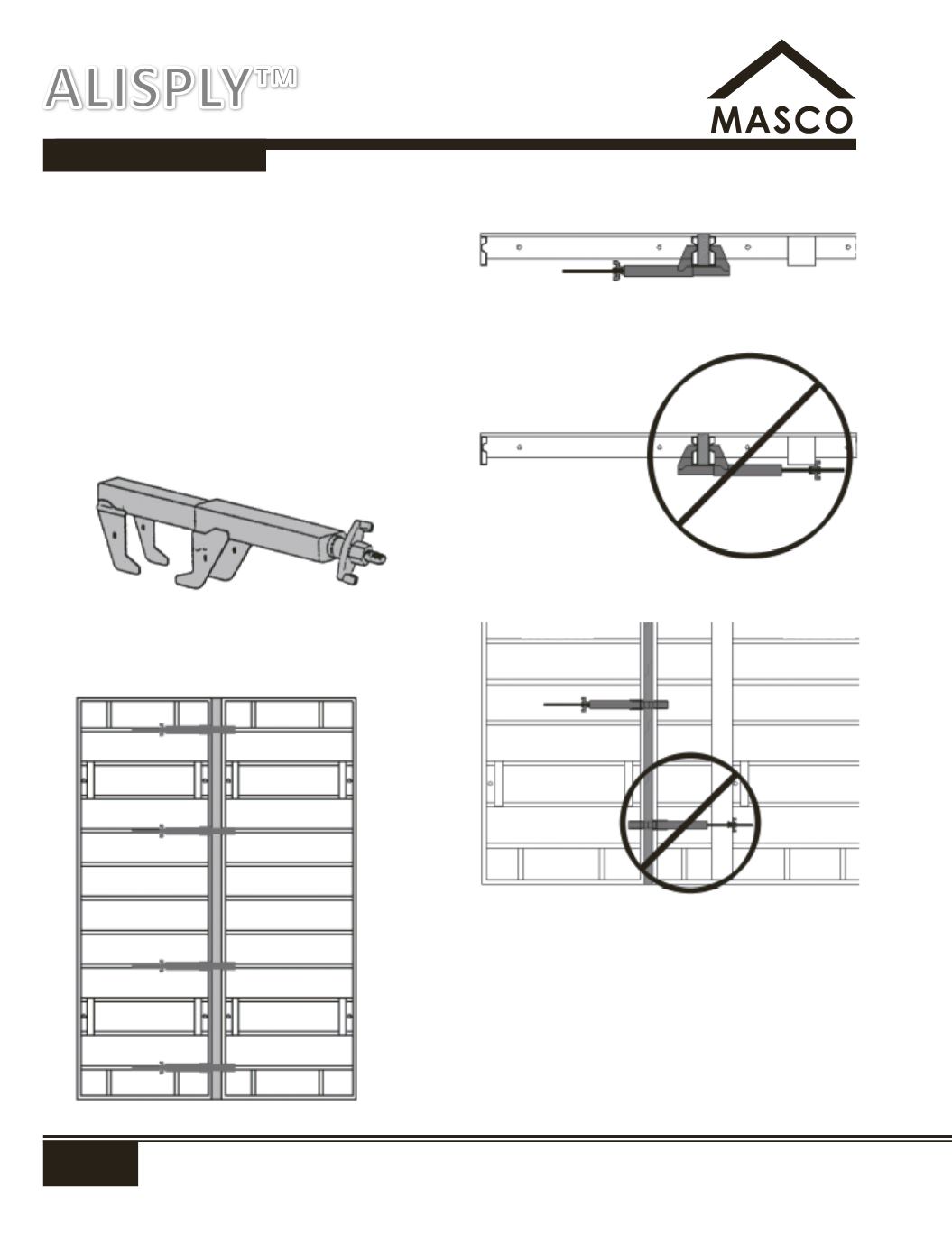

Adjustable Clamps
The Adjustable Clamp connects wood fillers up to 25 cm
(10") wide. The number of clamps required depend on
the size of the gang. Typically, four Adjustable Clamps are
required for a vertical 300 cm panel or filler.
The threaded end of the Adjustable Clamp only requires a
standard wing nut for final adjustment.
Note: Due to the clamp and panel interference, the Ad-
justable Clamp should not be used with the 200 cm x 300
cm panel unless used at end rail locations or the handles
are pointed away from the 200 cm x 300 cm panel.
100x300
100x300
Typical Adjustable Clamp Configuration
VERTICAL FORMING SYSTEMS
SY 54551
Adjustable Clamp
100x300
200x300
Adjustable Clamp Orientation
for Vertical Joints
Note:
Adjustable clamp cannot
be used adjacent to a
40cm filler when wing nut
end is oriented towards
40cm filler.
