Three-Piece Stripping Corner

Three-Piece Stripping Corners for Alisply™ are used when

gangs are confined between pilasters, intersecting walls

or core walls.

The 30 cm x 30 cm (11-13/16" x 11-13/16") Stripping Corner

consist of three elements: the 10½" x 10½" corner element,

and two 15/16" filler elements. The fillers are attached to

the corner element with 5/8" Fit-Up Bolts and nuts.

The filler elements have 11/16" x 3" slots at the same

elevations where there are 5/8" nuts welded to the inside

of the corner element that allow the inside corner element

to slide inward during the form stripping sequence.

In the set position 5/8" x 2" bolts and nuts must be bolted

at the hole at each end and at 30 cm (12") centers. In the

set position, the Three-Piece Stripping Corner is equivalent

to a standard 30 cm x 30 cm rigid corner.

TO STRIP THE THREE-PIECE STRIPPING CORNER:

Remove all Fit-Up Bolts except the Fit-Up Bolts at the

location where the filler element has the slotted hole and

at the corner element that has the welded nut.

Back off the remaining Fit-Up Bolts until the point of the

bolt is flush with the welded nut in the corner element.

Retract the gangform inward with turnbuckles or ratchets

until stripping clearance is about 2" between the poured

wall and form.

Caution

: During the stripping procedure, back the tie nuts

about 2" toward the end of the tie and do not remove the

ties until the crane is hooked to the gang and the gang is

free from the poured wall.

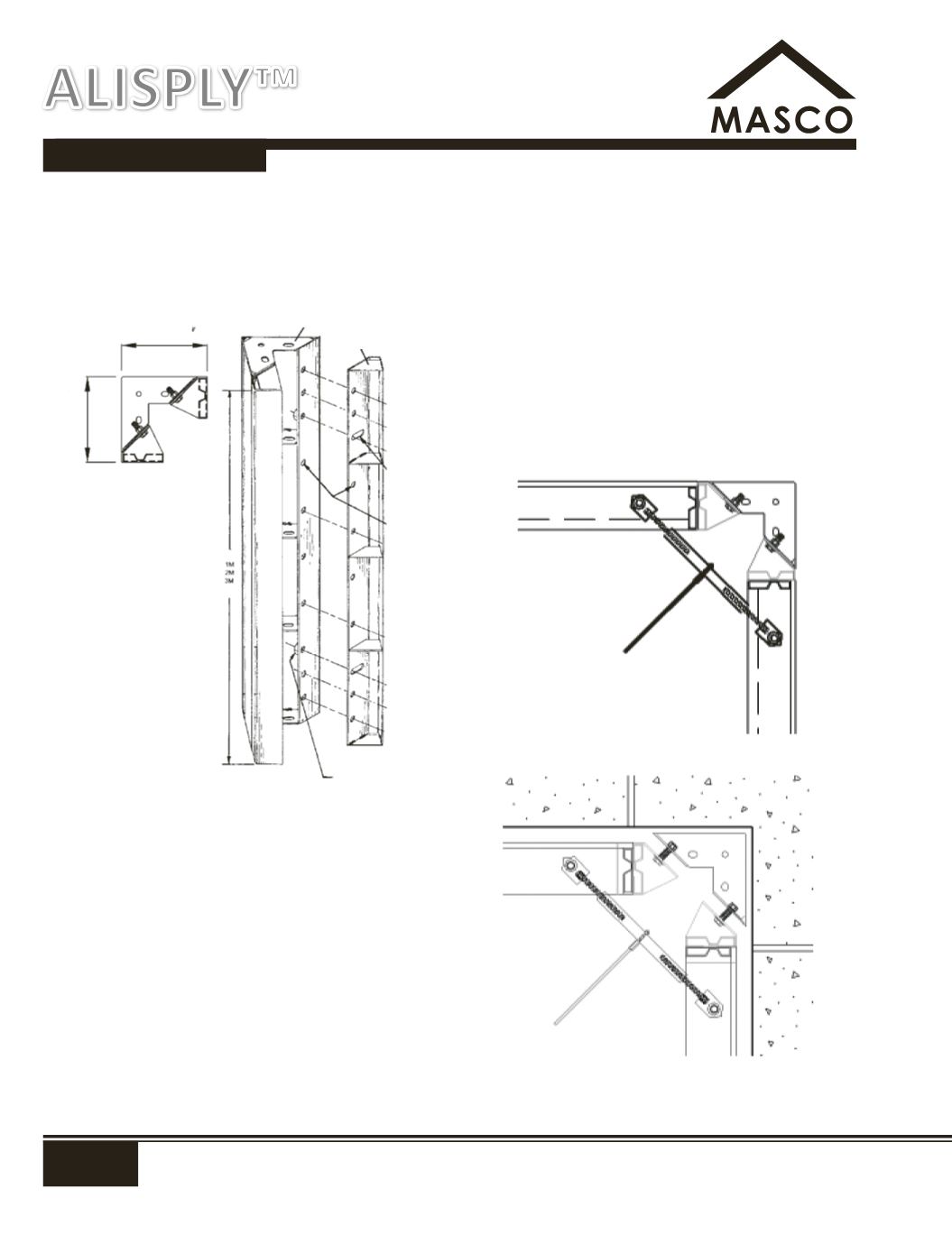

CORNER ELEMENT

(ONE PER ASSEMBLY)

FILLER ELEMENT

(TWO PER ASSEMBLY)

5/8

" CONTOUR WELDED

TO CORNER ELEMENT AT

LOCATION OF 11/16"" X 3"

SLOTS ON FILLER ELEMENT

11/16" X 3"

SLOT

11/16" DA.

HOLES

SET POSITION

STRIP POSITION

VERTICAL FORMING SYSTEMS

11'-13/16"

(30cm)

STRIPPING PROCEDURE

THREE-PIECE STRIPPING CORNER

ALISPLY™
