MASONS SUPPLY COMPANY
Oregon (800) 537-3407 ♦ Washington (800) 537-6216
Clackamas | Eugene | West Eugene | Hillsboro | Medford | Portland | Salem | Wilsonville | Ridgefield | Seattle | Tacoma | Woodinville
M A S C O . N E T
POUR IN PLACE
AS 9511
3" wide, 1/4" thick
1.17 lb/lf
NOTE:
Nose design
provides better fit
at former edge of
steel pan.
Sections not to scale

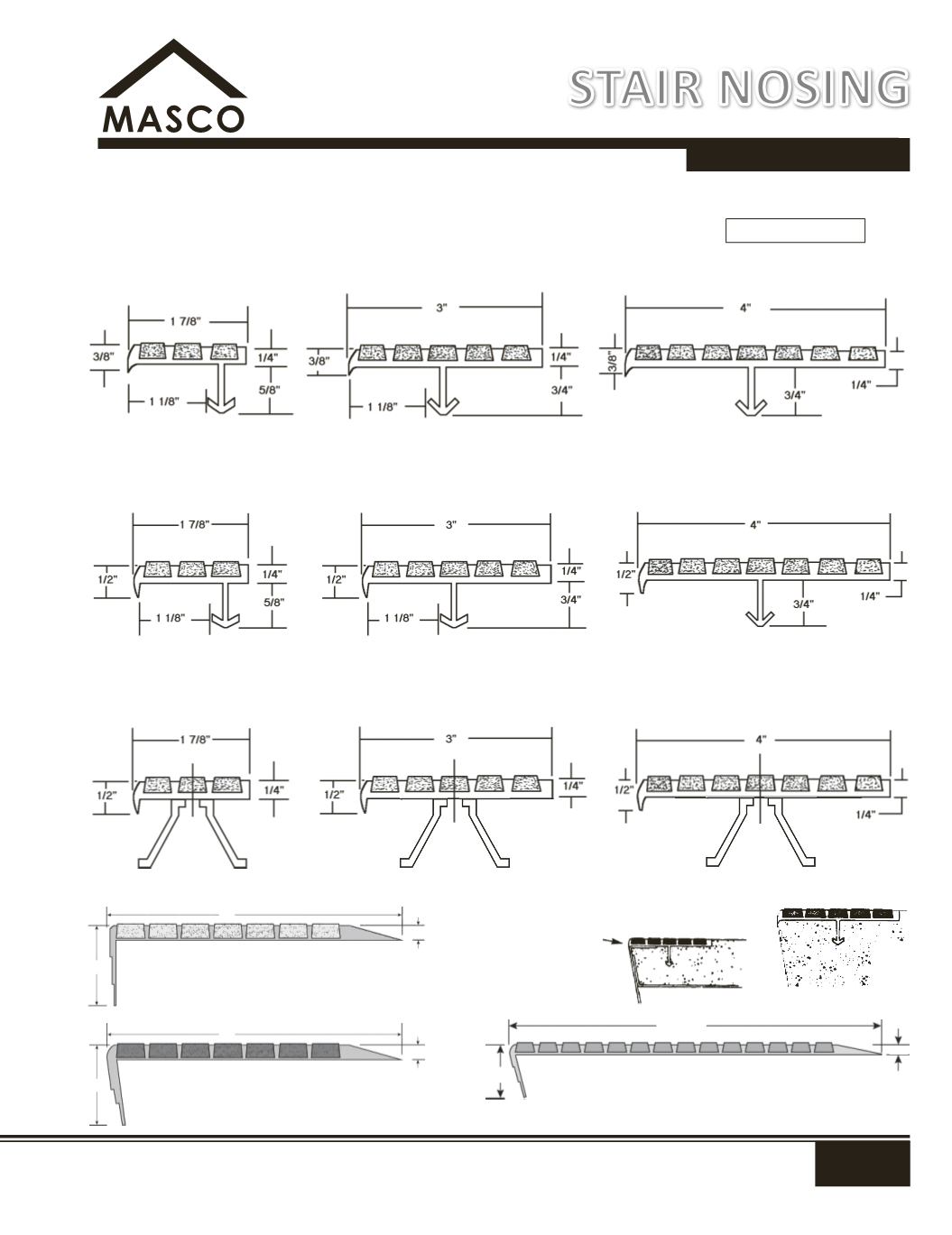

Profiles for New Concrete Stairs and Steel Pan
Poured concrete:
Install full step length less approximate 3" clearance.
Steel Pan:
Concrete filled, installed stringer to stringer less 1/8" clearance.
AS 9711
4" wide, 1/4" thick
1.50 lb/lf
AS 9311
1-7/8" wide, 1/4" thick
1.00 lb/lf
AS 3511
3" wide, 1/4" thick
1.17 lb/lf
AS 3711
4" wide, 1/4" thick
1.50 lb/lf
AS 3311
1-7/8" wide, 1/4" thick
1.00 lb/lf
FOR STEEL PAN STAIRS
FOR POURED CONCRETE STAIRS
FOR CONCRETE STAIRS
90 Degree Nose
83 Degree Nose
AS G4702
5" wide, 1/4" thick
1.00 lb/lf
AS SG4702
5" wide, 1/4" thick
1.00 lb/lf
AS SG500R (9") & AS SG505R (11")
9" & 11" wide, 1/4" thick
1.50 lb/lf
1-3/8"
1-3/8"
1-3/8"
5"
5"
9" & 11"
1/4"
1/4"
1/4"
RENOVATION TREADS
AS 3501
3" wide,
1/4" thick
1.17 lb/lf
AS 3301
1-7/8" wide,
1/4" thick
1.00 lb/lf
AS 3701
4" wide,
1/4" thick
1.50 lb/lf
STAIR NOSING
WING
ANCHOR
WING
ANCHOR
WING
ANCHOR
Requires
anchor, sold
separately.
Requires
anchor, sold
separately.
Requires
anchor, sold
separately.
