POUR IN PLACE
No.
Description
Wt
(lbs)
Outlet Adapters
ZN 886-E1
Closed End Cap
-
ZN 886-E2
2" No-Hub End Outlet
-
ZN 886-E3
3" No-Hub End Outlet
-
ZN 886-E4
4" No-Hub End Outlet
-
ZN 886-U2
2" No-Hub Bottom Outlet
-
ZN 886-U3
3" No-Hub Bottom Outlet
-
ZN 886-U4
4" No-Hub Bottom Outlet
-
Grate Options
ZN P6-DGC
Ductile Iron Slotted (C)
-
ZN P6-HPD
Heel-Proof Ductile Slotted Grate (B)
-
ZN P6-DGE
Ductile Iron Slotted (E)
-
Accessories
ZN 886-HDF
80" Heavy Duty Steel Frame
-
ZN 887-6X20
6"x20" Catch Basin
-
ZN 887-HDF-6X20 Heavy Duty Frame For 6"x20" CB
-
ZN 887-IA-HD-6X20 Inlet Adapter For 6"x20" CB w/HDF
-
ZN 887-INLET-6-NS Inlet Adapter For 6"x20" CB
-
6' 8" High Density Polyethylene Channel Base Sections
No.
'A' Shallow
Inv. (inches)
'B' Deep
Inv. (inches)
Flow
(gpm)
Wt
(lbs)
ZN 8601
3.50
4.10
93
-
ZN 8602
4.10
4.70
122
-
ZN 8603
4.70
5.30
152
-
ZN 8603N
5.30
5.30
-
-
ZN 8604
5.30
5.90
183
-
ZN 8605
5.90
6.50
214
-
ZN 8606
6.50
7.10
245
-
ZN 8606N
7.10
7.10
-
-
ZN 8607
7.10
7.70
276
-
ZN 8608
7.70
8.30
308
-
ZN 8609
8.30
8.90
339
-
ZN 8610
8.90
9.50
371
-
ZN 8611
9.50
10.10
403
-
ZN 8612
10.10
10.70
435
-
ZN 8612N
10.70
10.70
-
-
ZN 8613
10.70
11.30
467
-
ZN 8614
11.30
11.90
498
-
ZN 8615
11.90
12.50
530
-

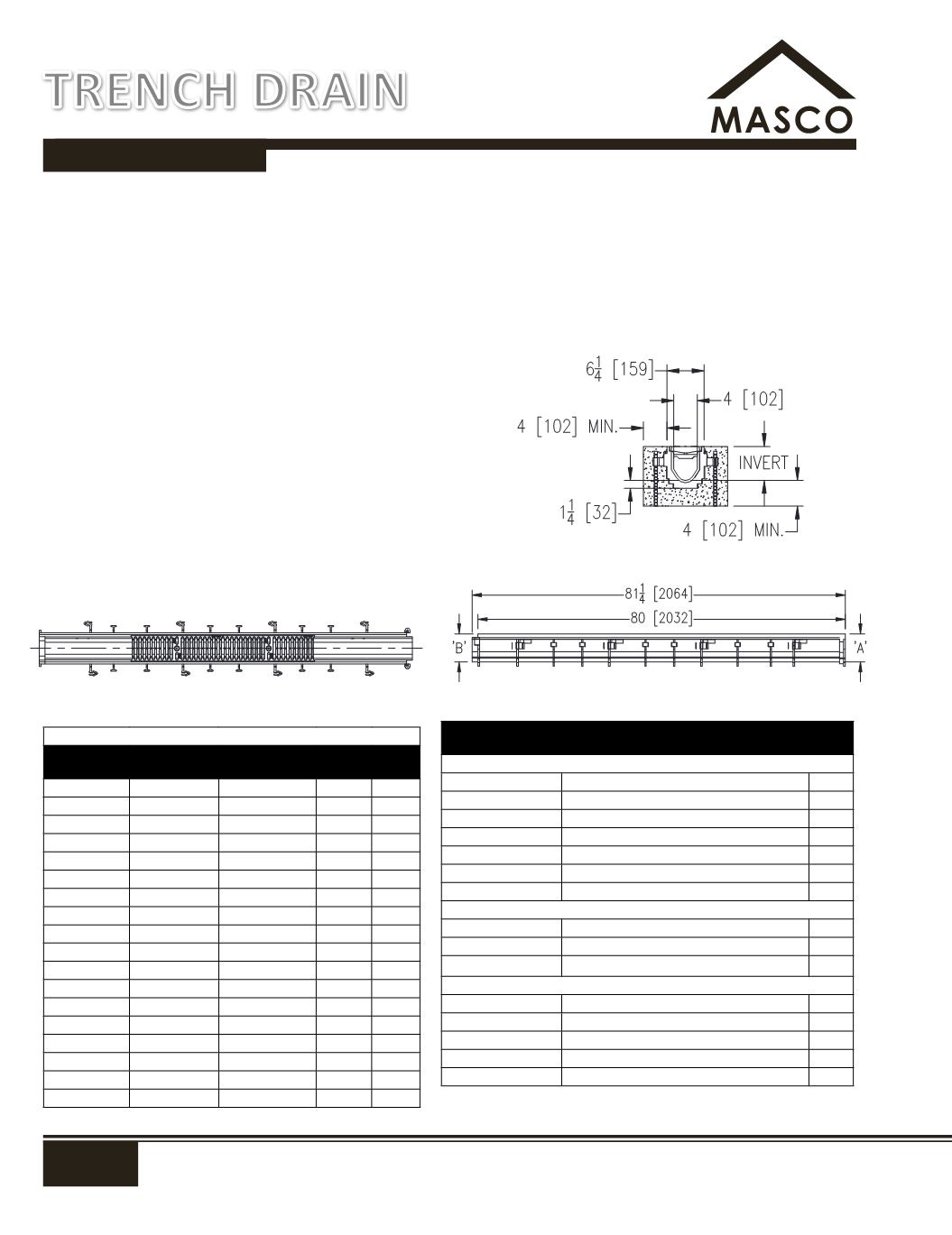

TRENCH DRAIN
Wide Reveal System
A pre-sloped, and/or neutral trench drainage system which comes
in modular lengths with integral top frame, inter-locking ends,
and a smooth, and radial self-cleaning bottom of various widths
(features depend on model). Combination tie-down/leveling
devices can be applied at various intervals. Uses a strong, positive
locking mechanical connection between sections.
6 inch Width (ZN 8601 - ZN 8614)
• Made of 0% water absorbent High Density Polyethylene
• HDF HD Steel frame
• Weigh less than 2.31 lbs per linear foot
• 6 inches (6-1/4”) wide
• 80 inch sectional length
• 1-1/2 inch bottom radius
• 4 inch depth
• .75% or .009" neutral bottom slope
• 20 inch, tie-down/leveling intervals
• Furnished with heavy-duty, Dura-coated cast iron grates
