POUR IN PLACE
3/8" x 3-1/4" opening
Plastic Drain
Channel Drains are a economical alternative to precast
concrete drains. Light weight and easy to install. UV inhibitors in
the grates, channel and component parts prevents fading and
cracking from the sun. All plastic grate and channel components
are chemically resistant, rust proof and maintenance free.
Channel Drains operate on the same principal as a roof gutter.
Mini, Spee-D and Micro drains connect like PVC pipe. Pro Series
injected Molded Channel have mechanical interlocking joints.
The channels easily connect to sewer and drain pipe fittings or
SCH 40 pipe and fittings. This system also offers a choice of outlets.
Water can be evacuated from the bottom or from the
end of the channel. It eliminates grading a deck surface to a
low area. Instead, the deck is gradually sloped in one direction
or plane, and the channel drain acts as a perimeter drain to the
edge of the slope. Most hardscapes experience more runoff
than landscapes due to the lack of water absorption. Channel
Drain systems provide more overall open surface area than
conventional area grates. Spee-D and Pro Series will handle light
automobile traffic at low speeds. Mini and Micro are designed
for foot traffic applications only.
For specific load information,
contact Masons Supply.

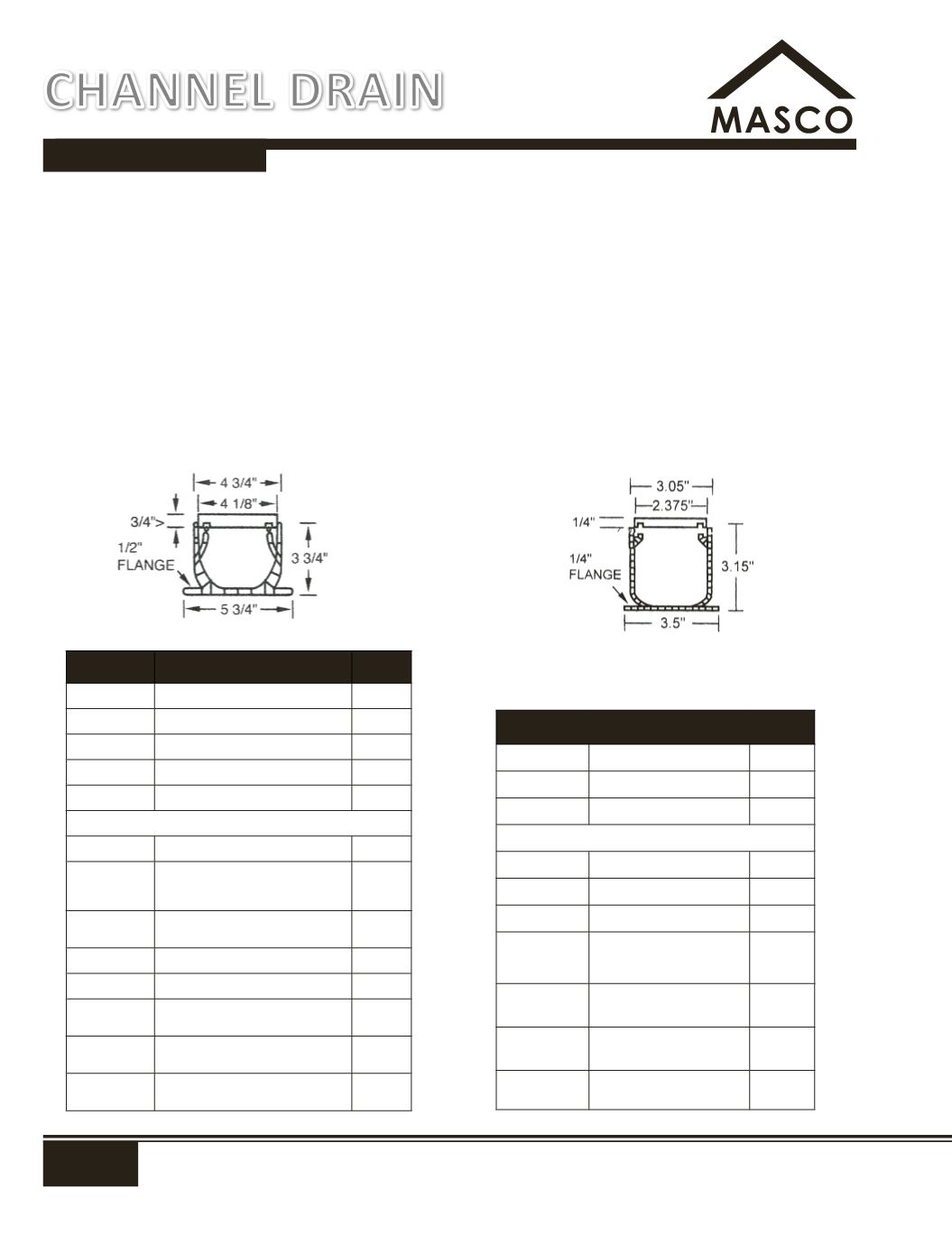

SPEED-D
No.
Description
Color
NDS 241
2' Grate
Grey
NDS 243
2' Grate
Black
NDS 400
4' Channel
Grey
NDS 401
10' Channel
Grey
ACCESSORIES
NDS 246
End Outlet w/2" Schedule 40 SPT
Grey
NDS 249
End Outlet w/3" & 4" Offset
(Connects to 3" S&D Pipe, 4"S&D
Fittings)
Grey
NDS 234
2' Channel w/Fabricated 3" & 4"
Spigot (Bottom Outlet with Strainer) Grey
NDS 247
Solid End Cap
Grey
NDS 248
Coupler
Grey
NDS 2381
90° Elbow Channel
w/Grey
Grate
NDS 2301
45° Elbow Channel
w/Grey
Grate
NDS 2371
Tee Channel
w/Grey
Grate
MINI
No.
Description
Color
NDS 541
3' Grate
Grey
NDS 500
6' Channel
Grey
Accessories
NDS 548
Coupler
Grey
NDS 547
Solid End Cap
Grey
NDS 546
End Outlet w/2" Sch. 40
Grey
NDS 550
3' Channel w/2" Sch. 40
Spigot Bottom Outlet
Grey
NDS 5380
90
° Elbow Channel
w/Grey
Grate
NDS 5300
45° Elbow Channel
w/Grey
Grate
NDS 5370
Tee Channel
w/Grey
Grate
SPEED-D
1/4" x 15/16" opening
MINI
CHANNEL DRAIN
