VERTICAL FORMING SYSTEMS
The Wonderwale system
bridges
the gap between all-wood forms
and plate girder type steel panels
by combining the best of both
systems into one modular package.
Wonderwale merges the versatility of
wood, its lighter weight per square foot
and its simplicity of onsite modification,
with large tie spacing, modularity and
ease of accessory attachment of steel
forms. The typical wonderwale panel
will weigh 50% less than the steel panel
it replaces and will be capable of
handling the same pour pressure.

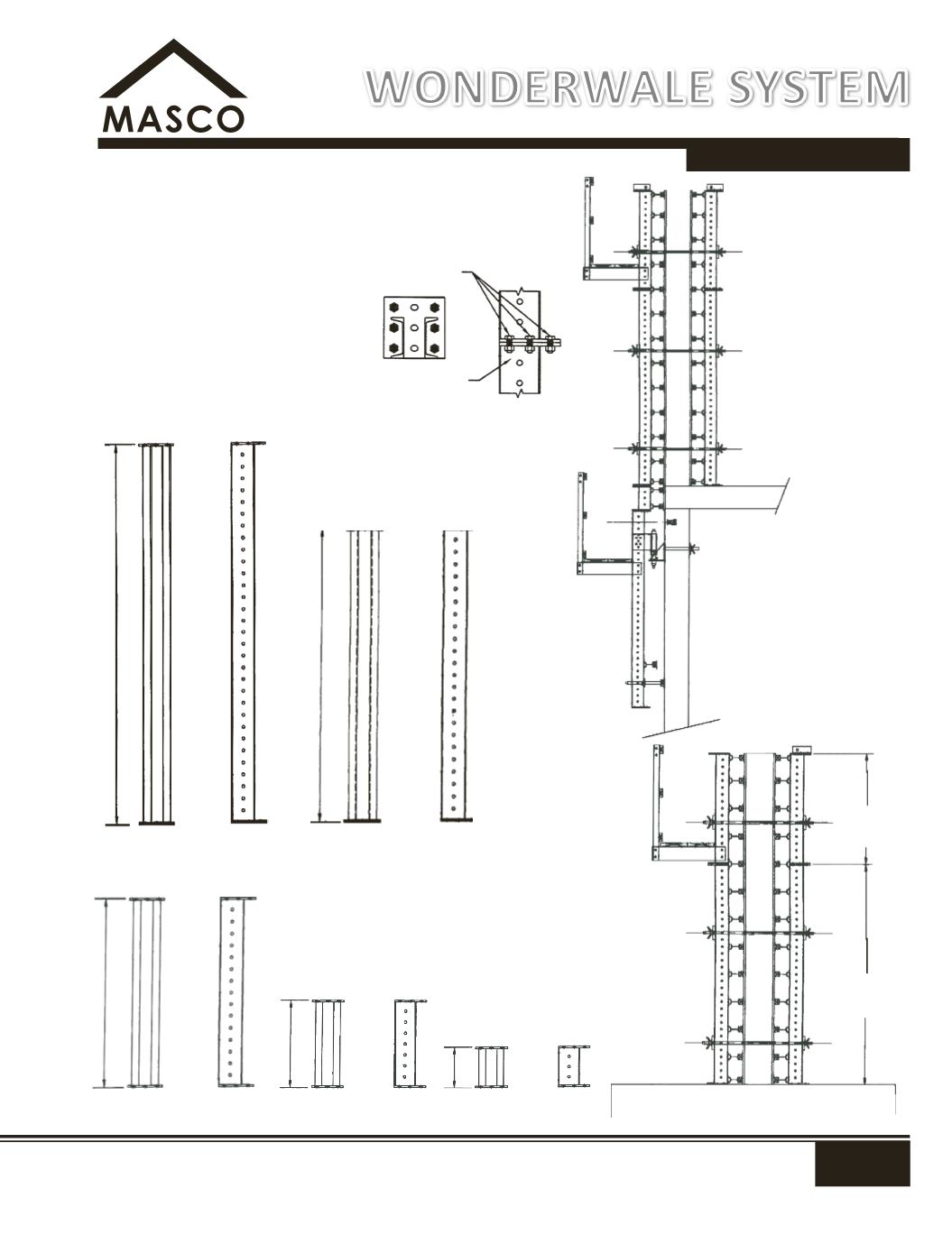

Shearwall Section
Typical Wall Section
6 EACH
¾
"ø 2" SPEED
BOLT AND NUT
DBL. C6 PAFCO WALE
PAFCO C6 WALE CONNECTION
Side View
PAF 1414
Elevation
39 lbs.
Side View
PAF 1333
Elevation
56 lbs.
Side View
PAF 1313
Elevation
89 lbs.
Side view
PAF 1330
Elevation
121 lbs.
PAF 1328
Elevation
159 lbs.
Side view
8'-0"
4'-0"
6'-0"
2'-0"
1'-0"
8'-0"
4'-0"
WONDERWALE SYSTEM
