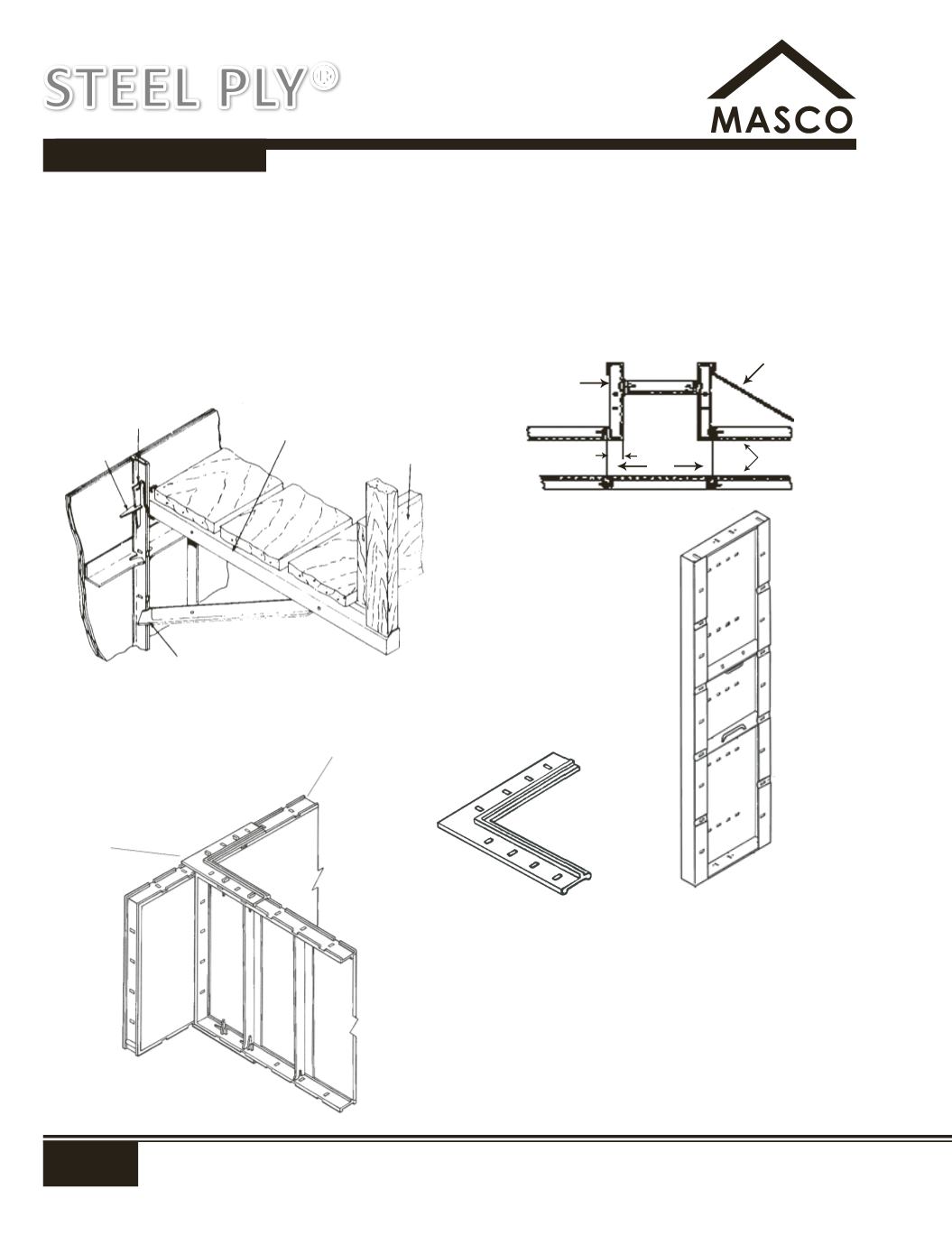

Scaffold Bracket
The Steel-Ply
®
Scaffold Bracket assembly provides a
safe access platform for above-grade applications.
The Scaffold Bracket is quickly attached to form
work with a Wedge Bolt and the attached S-Wedge.
Scaffold planking, toe boards and guard rails
(by contractor) complete the work platform.
Note: Do not use the Scaffold Bracket to support
concrete soffit forms or for temporary storage of
equipment and materials.
Pilaster Forms
Pilaster of less than 12 inches are formed quickly and
easily using the Steel-Ply
®
Forming System and Pilaster
Forms. The Pilaster Form eliminates the need for using
inside and outside corners with specific filler sizes.
Pilaster Forms can be used to form concrete pilasters
from 1 to 12 inches deep in 1 inch increments.
VERTICAL FORMING SYSTEMS
WEDGE
BOLTS
PILASTER
BRACE
PANELS
TIES
3"
SCAFFOLD BRACKET
S WEDGE ON CHAIN
WEDGE BOLT
CLEVIS STRADDLES SIDE RAILS
TOE PLATE
Footing Corner Bracket
Footing, pad and slab forming with Steel-Ply is made easy with the
Footing Corner Bracket and the Stake Plate. Two Footing Corner
Brackets at each corner, one on top and one on the bottom hold the
panels firmly, and at virtually any dimension that your job requires
(2" increments). The Stake Plates are then positioned along the top
edge of the Steel-Ply panels as needed for steel stakes to hold the
forms in place against the concrete pressure. Either 3/4" round or I-
beam steel stakes can be used with the Stake Plate. The Stake Plates
can be located midway between Steel-Ply crossmembers and end
rails to provide access for a stake puller.
STEEL-PLY
FORM
FOOTING
CORNER
STEEL PLY®
