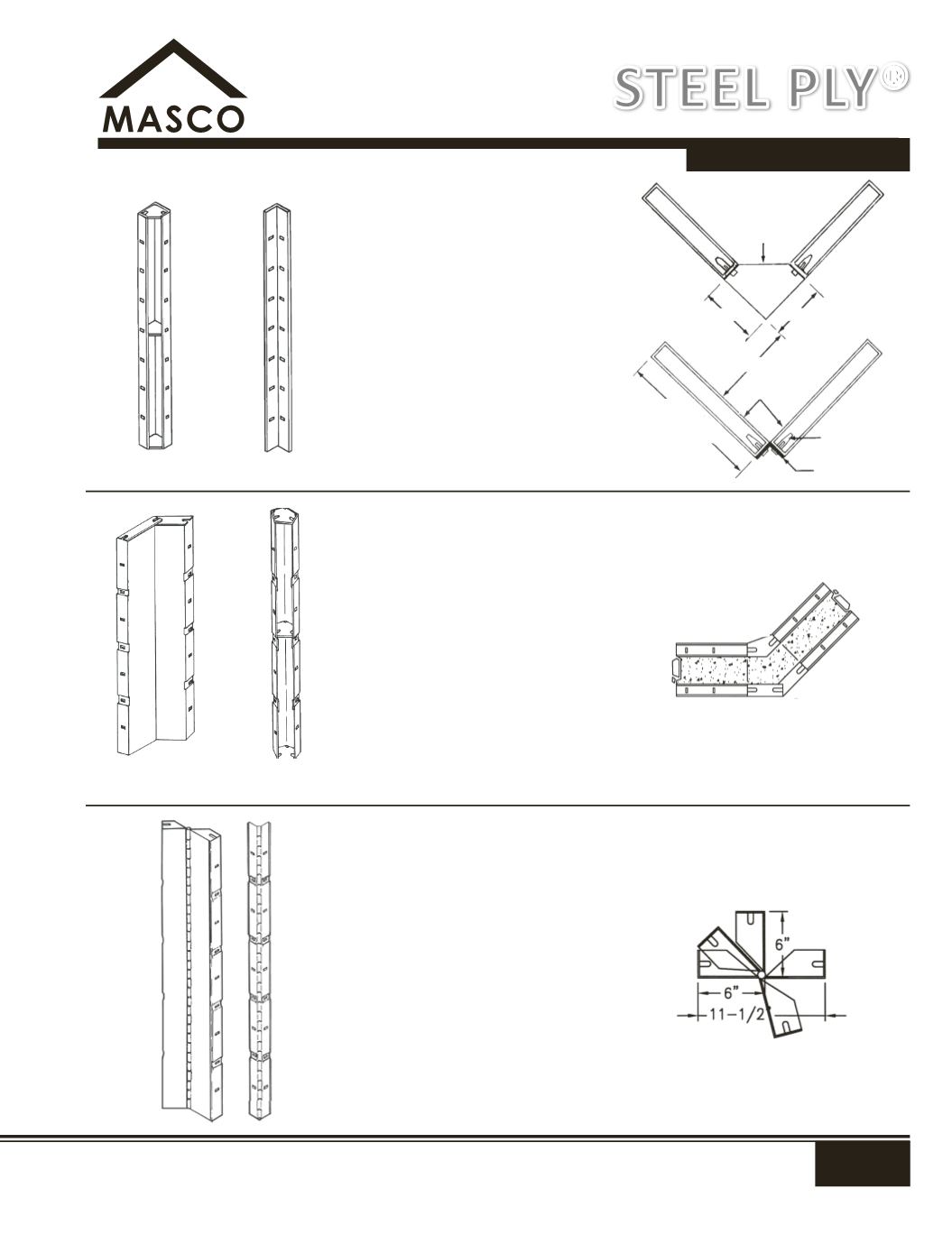

Bay Corners
Standard 135 Inside and Outside
Bay Corners simplify forming. Attach
them to Steel-Ply
®
panels and fillers
with Wedge Bolts for quick and easy
assembly. Inside and Outside Bay
Corners are available in five standard
lengths.
Hinged Corners
In most wall applications, Inside Hinged
Corners are used opposite Outside
Hinged Corners to achieve the desired
angle. The Inside Hinged Corner may
be used to form inside corners as
narrow as 45º . The Outside Hinged
Corner will form outside corners from 5º
to 135º . Filler sizes needed to make up
dimensions will vary depending on the
angle being formed.
VERTICAL FORMING SYSTEMS
OUTSIDE
BAY
CORNER
INSIDE BAY
CORNER
INSIDE BAY
CORNER
INSIDE
CORNER
OUTSIDE BAY
CORNER
Inside and Outside Corners
Reusable steel corners, built to precise
tolerances, minimize errors by eliminating
measures, sawing and fitting. Both Inside
and Outside Corners are available in
five lengths and can be set with either
end up or down to reduce the time and
labor required.
INSIDE CORNER
WALL THICKNESS
FILLERS
WEDGE BOLTS
OUTSIDE CORNER
INSIDE CORNER
FILLER WIDTH =
WALL THICKNESS +
4″ OR 6″
4″ OR 6″
4″ OR 6″
STEEL PLY®
