INSERTS

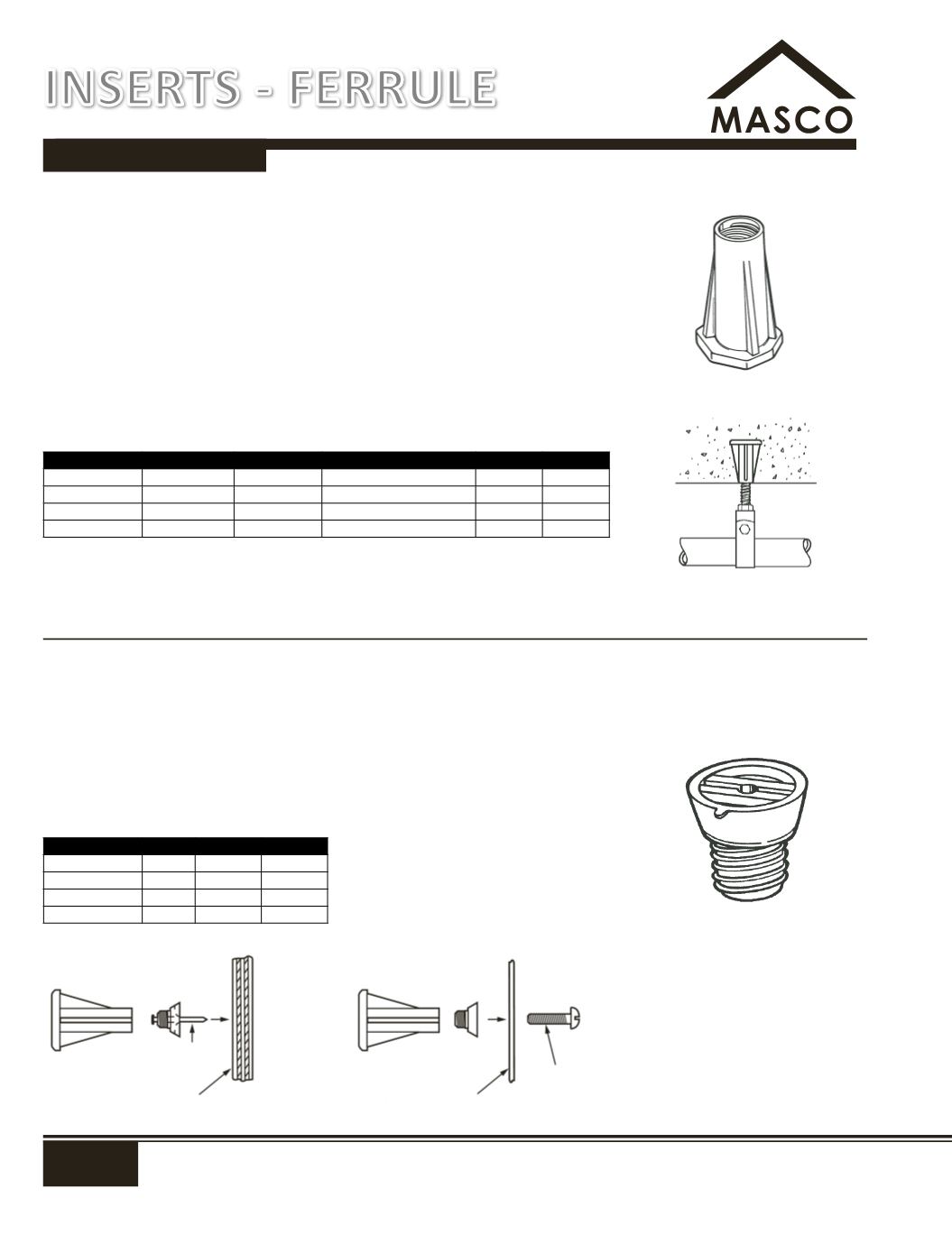

NC Precast Concrete Inserts
Star Inserts are precision die-cast of zinc alloy and have excellent resistance to
atmospheric conditions. These inserts are particularly suited for use in precast
concrete elements and can be quickly secured to the form with an appropriately
sized NC bolt. The Star Insert can also be nailed to the form utilizing the Star
Adapter Plug.
Star Inserts are excellent inserts for securing machinery and equipment, for
suspending piping and supporting railing/poles.
Two different types of inserts are available:
Standard
- Insert has a closed bottom to prevent concrete from entering the insert.
Open Bottom
- Threads run the full depth of the insert.
Star Adapter Plug
The Star Adapter Plug is available in all Star Insert diameters. The plug is a
setting plug for installing the insert into precast forms. Its use effectively seals
the insert against concrete seepage. Before each use, coat the side of the
plug as well as the threaded portion with a form release or water resistant
grease. This will allow the plug to be easily removed from the concrete. The
plug may be ordered with a 1/8" diameter smooth hole, for use in nailing to
wood forms or a #8-32 threaded hole for attaching to steel forms.
WOOD FORM
NAIL
STEEL FORM
#8-32
No.
Size
Length
*SWL Tension (lbs)
Wt (lbs)
Qty/Ctn
CFI FS38
3/8"
1-3/8"
1,200
0.25
400
CFI FS12
1/2"
2-7/8"
2,050
0.30
50
CFI FS58
5/8"
2-7/8"
2,500
0.40
50
CFI FS34
3/4"
3"
3,125
0.50
50
No.
Size Wt (lbs)
Qty/Ctn
CFI FSP38
3/8″
.02
500
CFI FSP12
1/2″
.04
100
CFI FSP58
5/8″
.08
100
CFI FSP34
3/4″
.11
100
*SWL provides a factor of safety of approximately 3:1.
Minimum concrete compression strength 3,000 psi.
INSERTS - FERRULE
