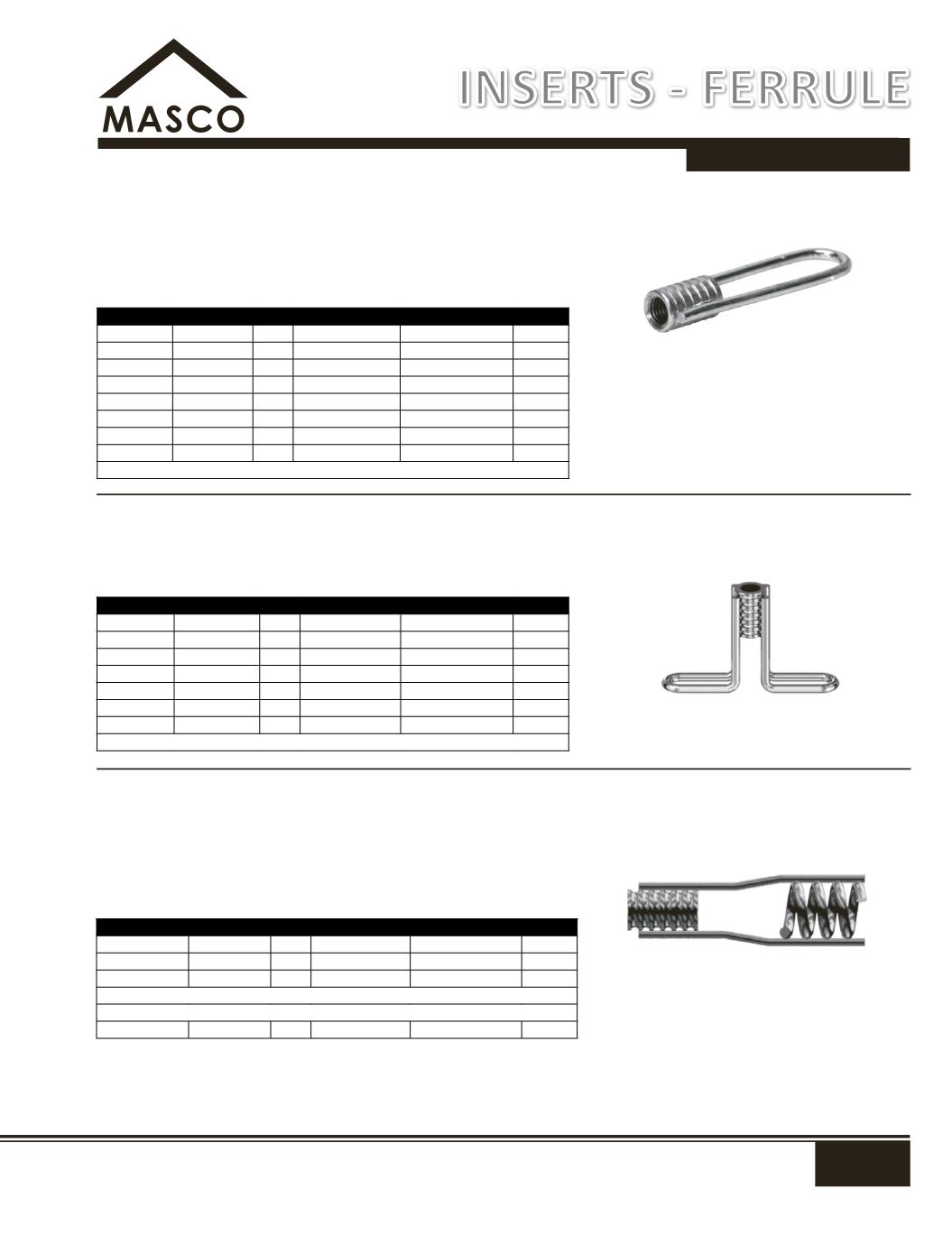

Straight Ferrule Loop
The Ferrule Loop Insert is manufactured by welding a wire loop to a steel
ferrule which has been machined from bar stock. One end of the ferrule is
closed, while the other end is drilled and tapped to accept an NC threaded
bolt. Typically, this insert is used to attach a precast wall panel to a building
frame, as well as provide attachment of other structural elements that may
be required.
Thin Slab NC (Wing Insert)
The Flared Thin Slab Insert was designed for use in thin precast concrete elements
or for conditions where a longer insert cannot be used. This insert is closed at
the back end of the ferrule to keep concrete from getting into the threads. The
ferrule will accept only NC threaded bolts of appropriate diameters.
Open Coil Insert N/C Thread
The Expanded Coil Ferrule Inserts were developed as a more effective means
for increasing the insert's tensile capacity, without increasing its depth of
embedment. By increasing the width of the base, the volume of the resisting shear
cone is significantly increased. The expanded pitch coils welded to the more
deeply embedded end of the insert serve to distribute the applied loads over
a larger volume of concrete. Available in longer lengths, as required. Minimum
spacing between inserts is twice the corner spacing.
SWL is based on 1/2" set back from face of concrete SWL provides a factor of safety of approximately 3 to 1 in 3,000 psi
normal weight concrete. Consult manufactures data on values on shear and reduced edge distance. Not for use as a
lifting insert. Note: Masons Supply does not recommend 1/2" diameter bolts for lifting/handling of precast concrete.
No.
Size
Wire SWL Tension (lbs) Min. Edge Distance Wt (lbs)
CFI FLS124 1/2" x 4-1/8"
.223 3,000
9"
.25
CFI FLS126 1/2" x 6-1/8"
.306 4,000
9"
.38
CFI FLS584 5/8" x 4-1/8"
.223 3,000
9"
.35
CFI FLS586 5/8" x 6-1/8"
.306 5,000
11"
.48
CFI FLS344 3/4" x 4-1/8"
.223 3,000
9"
.54
CFI FLS346 3/4" x 6-1/8"
.306 5,000
11"
.67
CFI FLS786 7/8" x 6-1/8"
.306 5,000
11"
.75
CFI FLS16 1" x 6-1/8"
.306 5,000
11"
.75
Other sizes and galv available on request.
No.
Size
Wire SWL Tension (lbs) Min. Edge Distance Wt (lbs)
CFI FTS122 1/2" x 1-7/8"
.223 1,200
6"
0.25
CFI FTS582 5/8" x 2-7/16"
.306 2,500
7"
0.44
CFI FTS342 3/4" x 2-7/16"
.306 2,650
6"
0.48
CFI FTS343 3/4" x 3-5/8"
.306 4,500
9"
0.66
CFI FTS12 1" x 2-7/16"
.306 3,080
6"
0.86
CFI FTS13 1" x 3-1/2"
.375 4,500
8"
1.00
CFI FTS14 1" x 4-5/8"
.306 6,500
11"
1.10
Other sizes and galv available on request.
No.
Size
Wire SWL Tension (lbs) Min. Edge Distance Wt (lbs)
CFI FOC34
3/4" x 4-5/8"
.375 4,250
6"
0.55
CFI FOC1
1" x 5-5/8"
.440 6,250
8"
1.20
CFI FOC114 1-1/4" x 7-5/8" .440 9,920
10"
3.20
Other sizes and galv available on request.
Hot Dipped Galv
CFI FOC34HDG 3/4" x 4-5/8"
.375 4,250
6"
0.60
