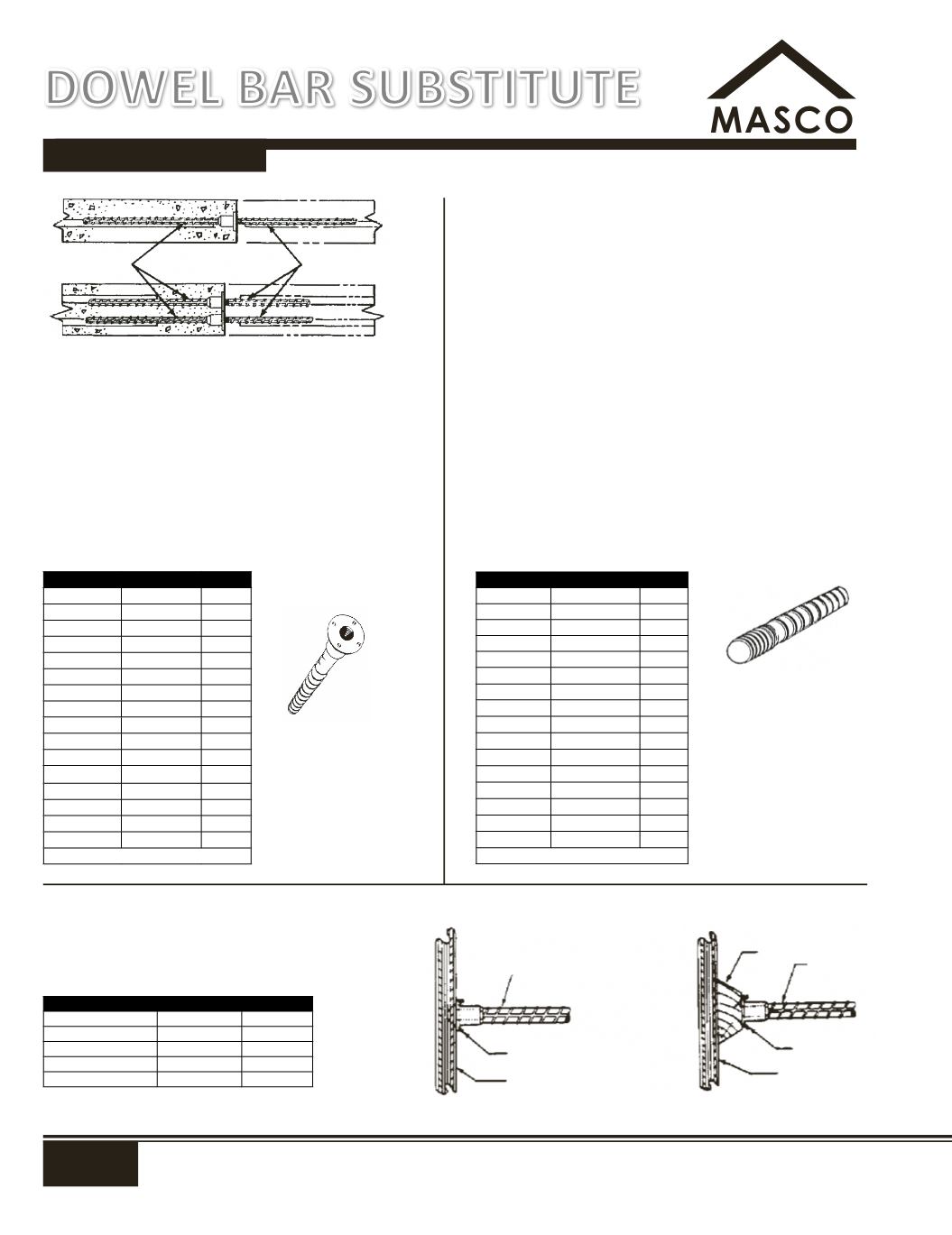

SPLICING
DB-SAE
The DB-SAE Splicer is a one-piece unit integrally
forged from grade 60 rebar material. It is available in
#4 through #11 size and is designed to achieve 150
percent of specified yield (full mechanical ultimate).
Meets ASTM A706. DB-SAEs are available straight (cut
to length), hooked, double-ended, thread-ended
or bolt-headed in plain or epoxy coated. It is also
possible to order the Splicer with a reduced washer
and/or a clipped washer. Stock sizes are in #4 thru
#8 Bar. We can bend to requirements. Other sizes
available upon request.
Dowel-In
DI's are manufactured from grade 60 rebar
material and available in sizes corresponding to
the DB-SAE Splicer. It is available in #4 through
#11. Meets ASTM A706. The end of the Dowel-In
is enlarged by forging before threading so that
the cross-sectional area of the bar is not reduced
during threading operations, thus assuring a
strength capacity of 150 percent of the specified
yield. Dowel-Ins are configured to facilitate easy
installation of the splice. They can be easily
assembled by hand. On large projects, such as
highway paving, a centrifugal chuck on an electric
or air powered drill motor will speed installation.
Dowel-Ins are available straight or hooked, plain or
epoxy coated. Stocked sizes #4 thru #8.
ICC and SWL information available on request.
Combination DI/DB-SAE
Combination Dowel-In on one end and
DB-SAE on the other end. Designed for
emergency field adjusted lengths.
Dowel-In
DB-SAE
No.
Size
Wt (lbs)
RC 424DI
#4 x 24"
1.40
RC 430DI
#4 x 30"
1.70
RC 436DI
#4 x 36"
2.00
RC 448DI
#4 x 48"
2.80
RC 524DI
#5 x 24"
2.10
RC 530DI
#5 x 30"
2.60
RC 536DI
#5 x 36"
3.20
RC 548DI
#5 x 48"
4.20
RC 624DI
#6 x 24"
3.00
RC 630DI
#6 x 30"
3.75
RC 636DI
#6 x 36"
4.50
RC 648DI
#6 x 48"
6.00
RC 730DI
#7 x 30"
5.15
RC 736DI
#7 x 36"
6.15
RC 748DI
#7 x 48"
8.20
RC 848DI
#8 x 48"
10.70
Other sizes available on request.
No.
Size
Wt (lbs)
RC 4120COMBO #4 x120"
7.00
RC 5120COMBO #5 x120"
10.60
RC 6120COMBO #6 x120"
15.40
RC 7120COMBO #7 x120"
20.60
RC 8120COMBO #8 x120"
27.00
No.
Size
Wt (lbs)
RC 424DB #4 x 24"
1.50
RC 430DB #4 x 30"
1.90
RC 436DB #4 x 36"
2.20
RC 448DB #4 x 48"
3.00
RC 524DB #5 x 24"
2.30
RC 530DB #5 x 30"
2.80
RC 536DB #5 x 36"
3.30
RC 548DB #5 x 48"
4.30
RC 624DB #6 x 24"
3.40
RC 630DB #6 x 30"
4.20
RC 636DB #6 x 36"
4.90
RC 648DB #6 x 48"
6.40
RC 730DB #7 x 30"
5.20
RC 736DB #7 x 36"
6.25
RC 748DB #7 x 48"
8.30
RC 848DB #8 x 48"
10.90
Other sizes available on request.
DB-SAE
NAIL
FORM FACE
NAILED TO FORM FACE
KEY
DB-SAE
NAIL
FORM FACE
TYPICAL SETTING METHODS
NAILED TO KEY
DOWEL BAR SUBSTITUTE
