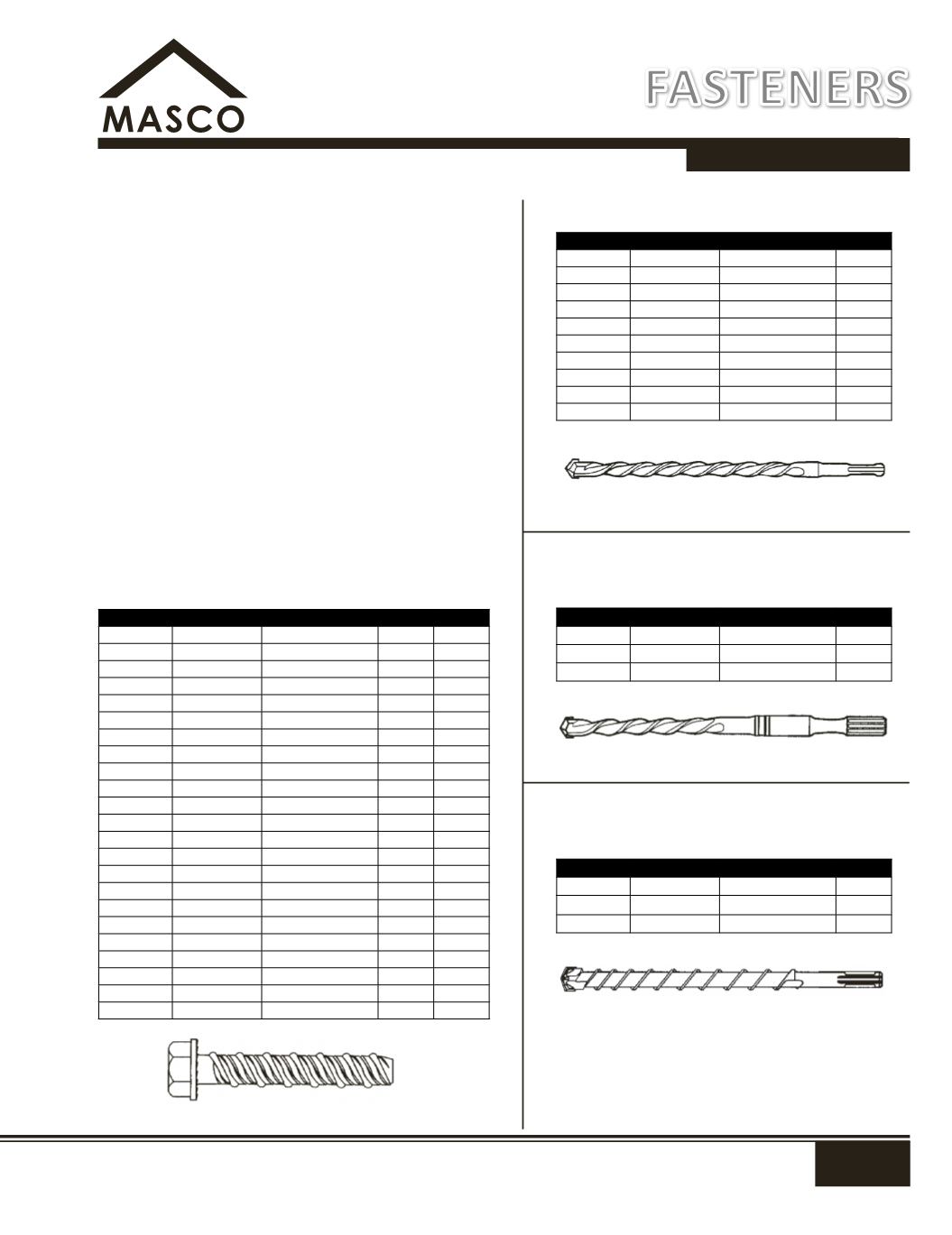

FASTENERS
FASTENERS
ICC and SWL information available on request.
Wedge-Bolt
Wedge-Bolt anchors are one piece units featuring a finished hex
head formed with an integral washer, a patented dual lead
thread, and a chamfered tip. A one piece design eliminates the
possibility of lost anchor parts or improper assembly. Wedge-Bolt
anchors are vibration resistant. Unlike traditional anchors that
have a small expansion mechanism, the double lead threads
grip a large portion of the embedment length and there are
no expansion forces to pulverize the concrete. For additional
vibration resistance, the ratchet teeth on the underside of the
hex washer head lock against the fixture. Wedge-Bolt anchors
are easy to remove, leaving a neat clean hole. Unlike traditional
anchor types, they can be removed to accommodate
installation errors such as improperly drilled or unclean anchor
holes. Can be installed at a shallower embedment than
traditional wedge or sleeve anchors reducing the chance of
striking reinforcing bars or embedded cables. Drilling time and
bit wear can be reduced resulting in significant savings. These
anchors are versatile and can be used in a variety of base
materials. This eliminates the need to stock assorted anchor
types and learn a variety of installation procedures. Wedge-
Bolt anchors are manufactured from heat treated carbon steel
that is plated with commercial bright zinc and a supplementary
chromate treatment in accordance with ASTM Specification
B-633,SC1,Type III.
Wedge Bolts must be used with Wedge Bits.
Carbon Steel - Zinc Plated
Spline Wedge-Bit
SDS-Max Wedge-Bit
SDS-Plus Wedge-Bit
No.
Size
Usable Length
Wt (lbs)
RL 1312
1/4" x 4"
2"
.09
RL 1314
1/4" x 6"
4"
.11
RL 1316
3/8" x 6"
4"
.17
RL 1318
3/8" x 8"
6"
.21
RL 1320
1/2" x 6"
4"
.23
RL 1322
1/2" x 10"
8"
.36
RL 1324
5/8" x 8"
6"
.38
RL 1326
5/8" x 12"
10"
.52
RL 1328
3/4" x 8"
6"
.42
RL 1330
3/4" x 12"
10"
.57
No.
Size
Usable Length Wt (lbs)
RL 1340 1/2" x 13"
8"
1.00
RL 1344 5/8" x 13"
8"
1.10
RL 1348 3/4" x 13"
8"
1.20
No.
Size
Usable Length Wt (lbs)
RL 1354 1/2" x 13"
8"
1.00
RL 1356 5/8" x 13"
8"
1.10
RL 1358 3/4" x 13"
8"
1.20
No.
Size
Min. Embed.
Std Box Wt (lbs)
RL 7204
1/4" x 1-1/4"
1"
100
.025
RL 7206
1/4" x 1-3/4"
1"
100
.033
Rl 7208
1/4" x 2-1/4"
1"
100
.043
RL 7210
1/4" x 3"
1"
100
.055
RL 7220
3/8" x 1-3/4"
1-1/2"
50
.08
RL 7222
3/8" x 2-1/2"
1-1/2"
50
.11
RL 7224
3/8" x 3"
1-1/2"
50
.12
RL 7226
3/8" x 4"
1-1/2"
50
.15
RL 7240
1/2" x 2"
1-3/4"
50
.14
RL 7242
1/2" x 2-1/2"
1-3/4"
50
.155
RL 7244
1/2" x 3"
1-3/4"
50
.21
RL 7246
1/2" x 4"
1-3/4"
50
.25
RL 7248
1/2" x 5"
1-3/4"
25
.28
RL 7250
1/2" x 6"
1-3/4"
25
.34
RL 7260
5/8" x 3"
2-1/2"
25
.28
RL 7262
5/8" x 4"
2-1/2"
25
.30
RL 7264
5/8" x 5"
2-1/2"
25
.39
RL 7266
5/8" x 6"
2-1/2"
25
.47
RL 7280
3/4" x 3"
2-1/2"
20
.48
RL 7282
3/4" x 4"
2-1/2"
20
.56
RL 7284
3/4" x 5"
2-1/2"
20
.70
RL 7286
3/4" x 6"
2-1/2"
20
.86
RL 7288
3/4" x 8"
2-1/2"
10
1.00
