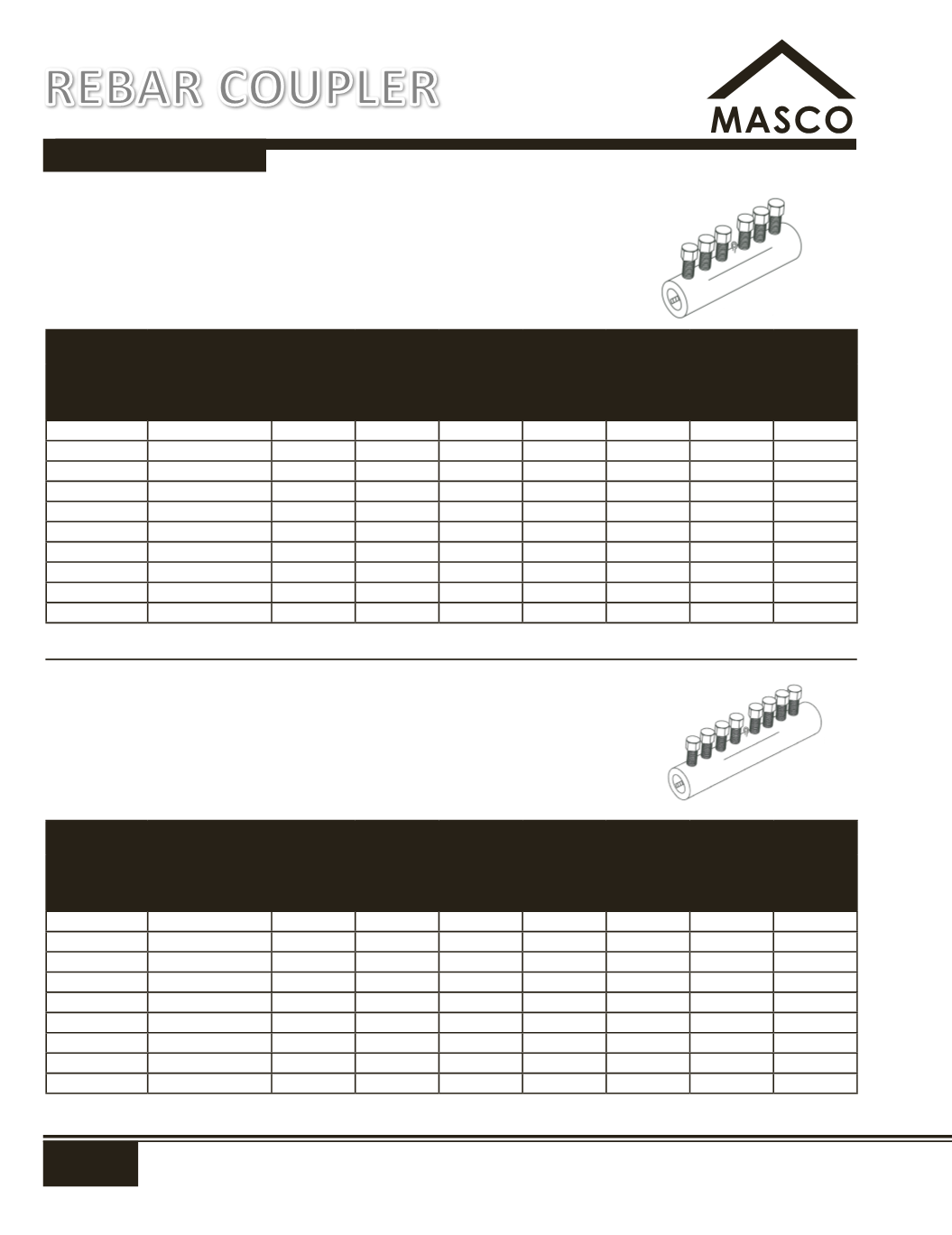

SPLICING
Barlock S/CA-Series Couplers
Designed for use in most tension and compression applications. They are
available in rebar sizes #4 through #18 and exceed 135% of specified yield of
Grade 60 rebar. S/CA couplers are an approved Caltrans “Service” splice and
are recognized by ICC, ACI and most State departments of Transportation. S/CA
couplers are available in transition sizes, weldable half couplers and epoxy coated.
Coupler
Designation
For Use on
Rebar Size
(in./mm)
Tube Specifications
Bolt Specifications
Min. % Fy
Outside
Diameter
(in.)
Length (in.) Weight (lbs.) Bolt Qty.
Head Size
(in.)
Nominal
Shear
Torque*
BS 4SCA
#4–13M
1.3
3.9
1.0
2
0.5
40
135
BS 5SCA
#5–16M
1.7
4.5
1.8
2
0.5
80
135
BS 6SCA
#6–19M
1.9
6.3
3.5
3
0.5
80
135
BS 7SCA
#7–22M
1.9
8.0
4.1
4
0.5
80
135
BS 8SCA
#8–25M
2.2
10.2
7.6
4
0.625
180
135
BS 9SCA
#9–29M
2.9
9.0
11.4
3
0.75
280
135
BS 10SCA
#10–32M
2.9
11.5
15.5
4
0.75
350
135
BS 11SCA
#11–36M
3.1
14.0
20.5
5
0.75
350
135
BS 14SCA
#14–43M
3.5
16.5
26.0
6
0.75
350
135
BS 18SCA
#18–57M
4.3
27.1
60.0
10
0.75
475
135
Barlock L-Series Couplers
Similar to the standard Coupler but is designed for use when higher loads are
required, such as extreme tension/compression application and/or seismic
loading conditions. L-Series couplers are available in rebar sizes #4 through #14
and exceed 160% of specified yield of Grade 60 rebar. L-series couplers are
approved for use by most state DOTs, are recognized as an ICC Type 2 seismic
splice, and meet ACI specifications. L-Series couplers are also available in
transition sizes, weldable half couplers and epoxy coated.
Coupler
Designation
For Use on
Rebar Size
(in./mm)
Tube Specifications
Bolt Specifications
Min. % Fy
Outside
Diameter
(in.)
Length (in.) Weight (lbs.) Bolt Qty.
Head Size
(in.)
Nominal
Shear
Torque*
BS 4BLL
#4-13M
1.3
5.5
1.6
3
0.5
40
160
BS 5BLL
#5-16M
1.7
6.3
2.8
3
0.5
80
160
BS 6BLL
#6-19M
1.9
8.0
4.5
4
0.5
80
160
BS 7BLL
#7-22M
1.9
9.8
5.5
5
0.5
80
160
BS 8BLL
#8-25M
2.2
12.3
9.5
5
0.625
180
160
BS 9BLL
#9-29M
2.9
11.5
15.5
4
0.75
280
160
BS 10BLL
#10-32M
2.9
14.0
19.5
5
0.75
410
160
BS 11BLL
#11-36M
3.1
16.5
24.0
6
0.75
410
160
BS 14BLL
#14-43M
3.5
19.1
32.0
7
0.75
410
160
*Foot pounds
*Foot pounds
