SPECIALTY PRODUCTS
SKYLIGHTS
Skylight Curb Mount
Plastic skylights shall be standard units, as
manufactured by Dur-Red Products. They shall
be factory fabricated, each consisting of a one
or two piece acrylic plastic dome, extruded
aluminum retaining frame and curb frame
sloping condensation gutter for drainage. The
retaining frame shall have a minimum thickness
of .070. Skylights may be specified with either
clear or white translucent acrylic single dome,
or double dome clear over white.
Skylight Self-Flash
Plastic skylights shall be standard units, low
silhouette self flashing skylight as manufactured
by Dur-Red Products. The skylight shall be factory
assembled units each consisting of a one or two
piece acrylic plastic dome formed from white
translucent or clear colorless acrylic material,
single dome or double dome clear over
white,self flashing curb frames with 2-3/4" roof
flange ready to provide for nailing to roof deck.
No.
Curb Opening
DUR 2828S 22-1/4" x 22-1/4"
DUR 3636S 30-1/4" x 30-1/4"
DUR 4242S 37" x 37"
DUR 5252S 46-1/4" x 46-1/4"
DUR 6060S 55" x 55"
DUR 8080S 75" x 75"
DUR 9898S 92-1/2" x 92-1/2"
DUR 55102R 48" x 96"
For Type of metal, follow product number
with A (aluminum) or G (galvanized).
No.
Curb Opening
DUR 2828SF 22-1/4" x 22-1/4"
DUR 3636SF 30-1/4" x 30-1/4"
DUR 4242SF 37" x 37"
DUR 5252SF 46-1/4" x 46-1/4"
DUR 6060SF 55" x 55"
DUR 8080SF 75" x 75"
DUR 9898SF 92-1/2" x 92-1/2"
DUR 55102SF 48" x 96"
For Type of metal, follow product number
with A (aluminum) or G (galvanized).

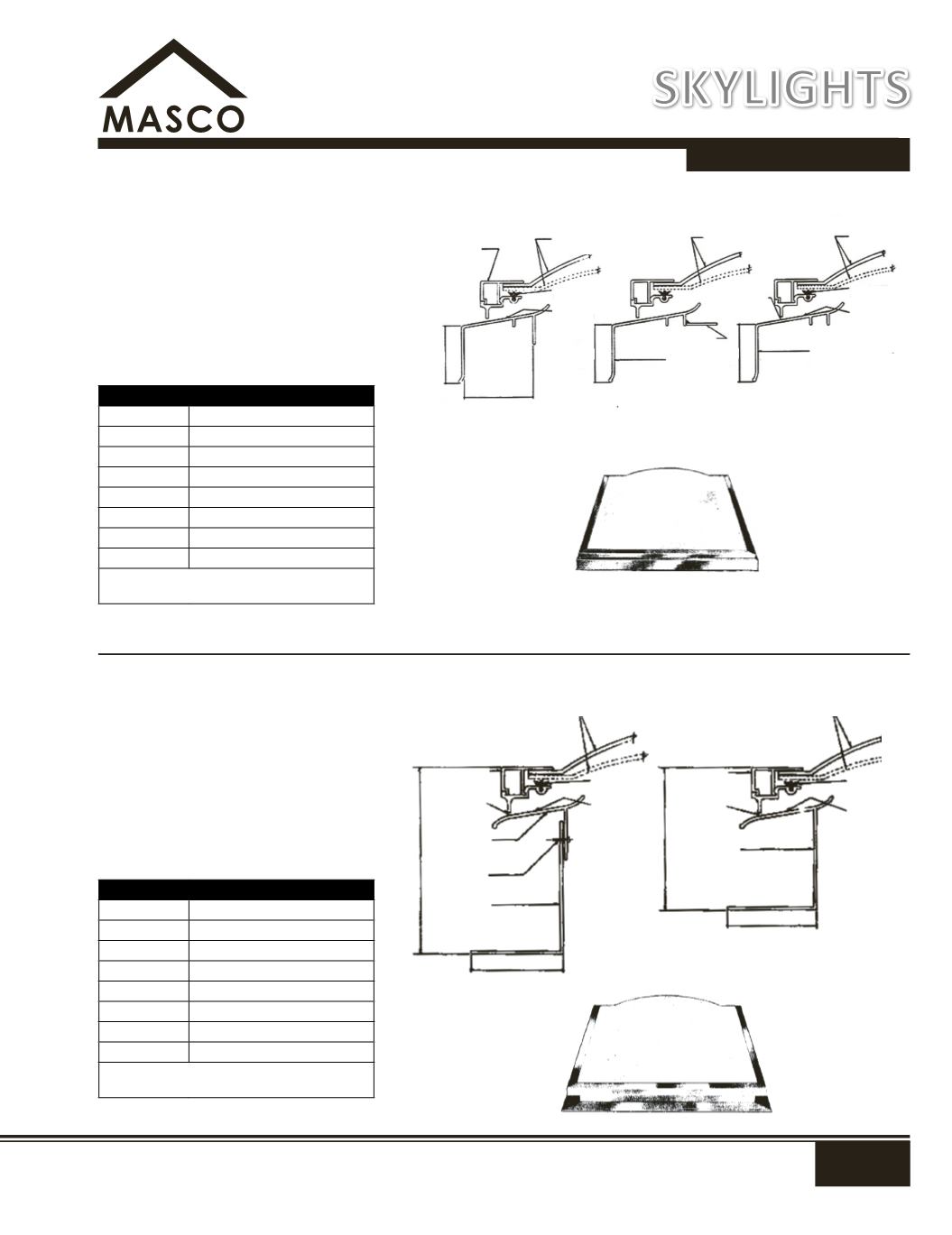

ACRYLIC DOME TIP
ACRYLIC DOME TIP
6063-T5 EXTRUDED
ALUM. RETAINING
CAP
CONDENSATION
DRAIN LOUVER
6063-T5 EXTRUDED
ALUM. SELF FLASHING
FRAME
SHEET METAL
SCREW
FORMED METAL
CURB FRAME
VINYL GASKET
8" O.C.
10" SLOPING
CONDENSATION
GUTTER
8"
6" or 8"
6063-T5 EXTRUDED
ALUM. RETAINING
CAP
CONDENSATION
DRAIN LOUVER
6063-T5 EXTRUDED
ALUM. SELF FLASHING
FRAME
2
¾
"
4"
VINYL GASKET
8" O.C.
10" SLOPING
CONDENSATION
GUTTER
"B"
"A"
"C"
ACRYLIC DOME
TYP.
ACRYLIC DOME
TYP.
ACRYLIC DOME
TYP.
6063.T5 EXTRUDED
ALUM. RETAINING
CAP
VINYL GASKET
8" O.C.
10" SLOPING
CONDENSATION
GUTTER
1
⅝
" CURB INSIDE FASTENING
4" CURB INSIDE FASTENING
OUTSIDE FASTENING
ANGLE CLIP
CONDENSATION
DRAIN LOUVER
6063-T5 EXTRUDED
ALUM.CURBMOUNTED
FRAME
10" SLOPING
CONDENSATION
GUTTER
6063-T5 EXTRUDED
ALUM.CURBMOUNTED
FRAME
VINYL GASKET
8" O.C.
2
½
"
2"
2"
2"
