SPECIALTY PRODUCTS

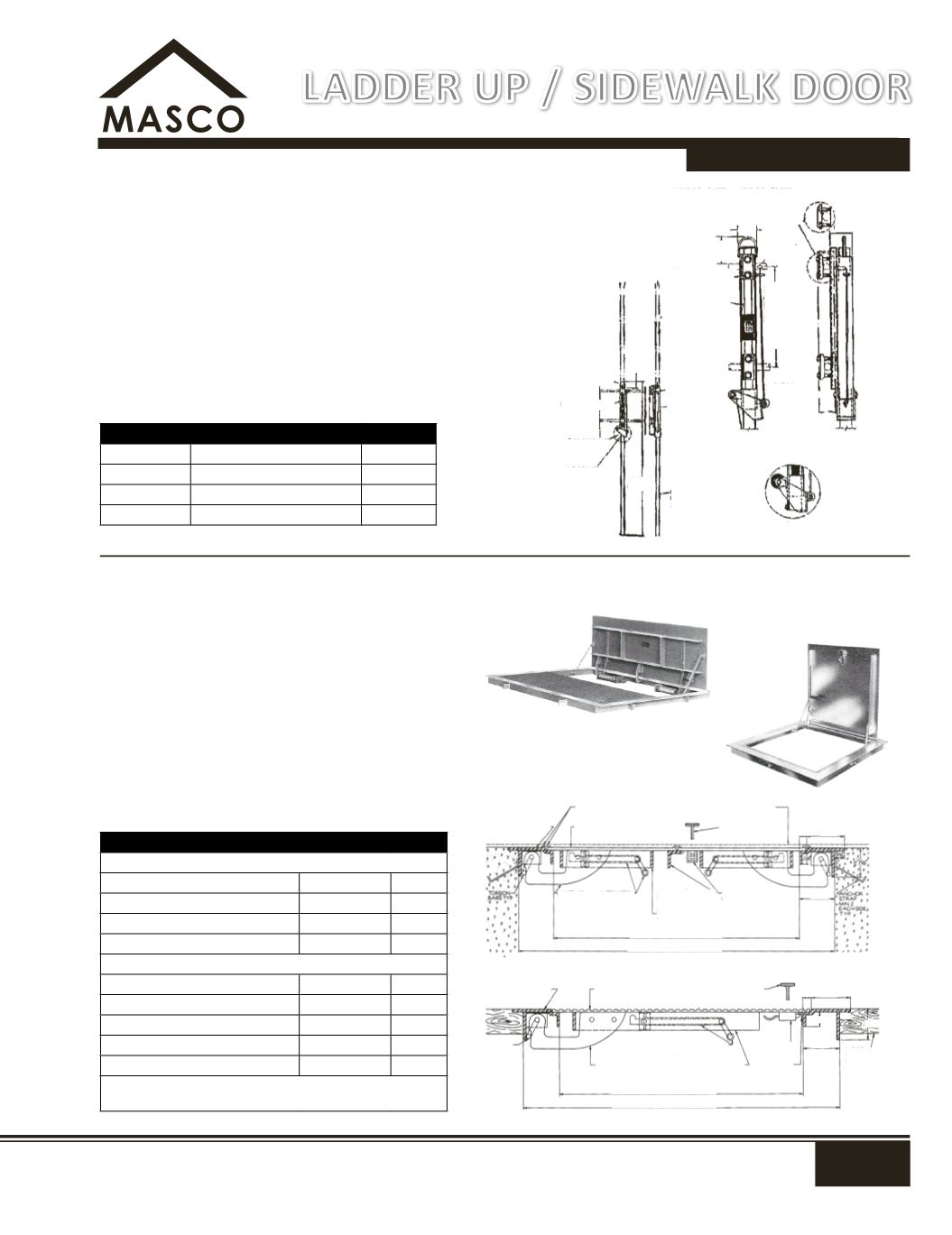

LADDER UP / SIDEWALK DOOR
Ladder Up
The Ladder Up safety post attaches quickly and easily to
fixed ladders in new or existing construction. It is shipped
in an individual carton, fully assembled with four bolts
for securing to the top two rungs (round or square) of the
ladder. It is ready to use in minutes providing a special
measure of convenience and security. It provides the
ladder user with the safety of being able to enter or exit
as through the ladder extended beyond the floor or roof
level. The spring balanced safety post moves easily up and
down. After the hatch is opened the post is raised to its
fully open position where it locks automatically. A handy
release lever allows it to be returned to its lowered position.
Sidewalk, Pit & Floor Door
Sidewalk Pit and Floor Door for interior and exterior Type SLG
Type, DLG Door applications. Door leafs of 1/4" diamond
pattern steel floor plate with reinforcing bars welded to
leafs, to support from 150# to H2O liveload per sq. ft. Gutter
frame is 1/4" carbon steel channel power brake shape
3-1/2" high x 3" wide, fully welded and ground smooth for
absolute weathertightness, with 1-1/2" continuous anchor
flange, a 1-1/2" tank flange for drainage welded to gutter
channel located in right hand corner. Lid hardware is
equipped with heavy strap hinge of 12 gauge steel and has
a one-point latch, inside and outside handles, "heavy-duty"
adjustable chrome vanadium torsion springs and lifting bar,
automatic hold-open arm with vinyl handle grip. Hardware
is cadmium plated, and factory coat of primer applied to
steel frame and leafs.
SPLIT-LEAF, HEAVY DUTY GUTTER
SINGLE-LEAF, HEAVY DUTY GUTTER
No.
Description
Wt (lbs)
LU 1
Steel, black enamnel
24
LU 2
Steel, hot dip galvanized 24
LU 3
Type 304 Stainless Steel
24
LU 4
Aluminum, mill finish
14
No.
Description Wt (lbs)
Split-Leaf, Heavy Duty Gutter
DUR 4040DLG
4'0" x 4'0"
450
DUR 4060DLG
4'0" x 6'0"
618
DUR 5050DLG
5'0" x 5'0"
645
DUR 5070DLG
5'0" x 7'0"
875
Single-Leaf, Heavy Duty Gutter
DUR 2020SLG
2'0" x 2'0"
177
DUR 2626SLG
2'6" x 2'6"
235
DUR 2630SLG
2'6" x 3'0"
275
DUR 3030SLG
3'0" x 3'0"
300
DUR 3636SLG
3'6" x 3'6"
385
For type of metal follow product number with S (Steel),
G (Galvanized).
CLAMP BRACKET MAY BE REVERSED
TO ACCOMMODATE RUNG SIZES OF
¾
"
TO 1
¼
"" WITH STANDARD 2" BOLTS FURNISHED.
LARGER RUNGS WILL REQUIRE LONGER BOLTS.
STAINLESS STEEL
MOUNTING
BOLTS
⅜
X 2"
ADJUSTABLE
MOUNTING
CHANNEL
42" EXTENSION
VINYL LIFT
HANDLE
HIGH STRENGTH
SQ TUBING
HIGH STRENGTH
SQ TUBING
SIDE VIEW
FRONT VIEW
PULL-UP
LOOP
INSTRUCTIONS
BALANCING
SPRING
LOCK UP
BRACKET
VIEW WITH
SAFETY POST
UP AND LOCKED
SIDE VIEW
FRONT VIEW
RELEASE ROD
ADJUSTABLE
MOUNTING
FITS
LADDERS
WITH RUNG
SPACING UP
TO ABOUT 14"
CENTER TO
CENTER
2
¼
"
FROM TOP
OF RUNG
2
¼
"
LADDER
RUNG
2
¾
"
5' 1
⅓
"
3/16" EXTRUDED ALUM.
FRAME TYP.
FLOOR COVERING
1/4" ALUM. SMOOTH
PLATE COVER
FLOOR COVERING
REMOVABLE OUTSIDE
KEY HANDLE
3/4" 3-1/2"
3-3/8"
TWO-POINT
LOCKING UNIT
1-1/2"X 1-1/2"X 3/16"
ALUMREINFORC
INGBAR
1/4"ALUM.REINFORCING
BAR TYP
CLEAROPENINGDIMENSIONS
MASONRYOPENINGDIMENSIONS
HINGEARM
TYP
AUTOMATIC
HOLDOPENARM
WITHREDVINYLGRIP
MASONRY OPENING DIMENSIONS
CLEAR OPENING DIMENSIONS
HINGE ARM TYP
1/4" ALUM. DIAMOND
PATTERN PLATE COVER
REMOVABLE OUTSIDE
KEY HANDLE
3/16" EXTRUDED ALUM.
FRAME TYP.
TORSION
BARS
STOP PLATE
ONE-POINT
LOCKING UNIT
3/4" 3-1/2"
1-1/4"
3-3/8"
WOOD
BLOCKING
AUTOMATIC
HOLDOPENARM
WITHREDVINYLGRIP
1/4"ALUM.REINFORCING
BAR TYP.
7/8"
2-11/16"
