TIEING/HANDSET
Cleats

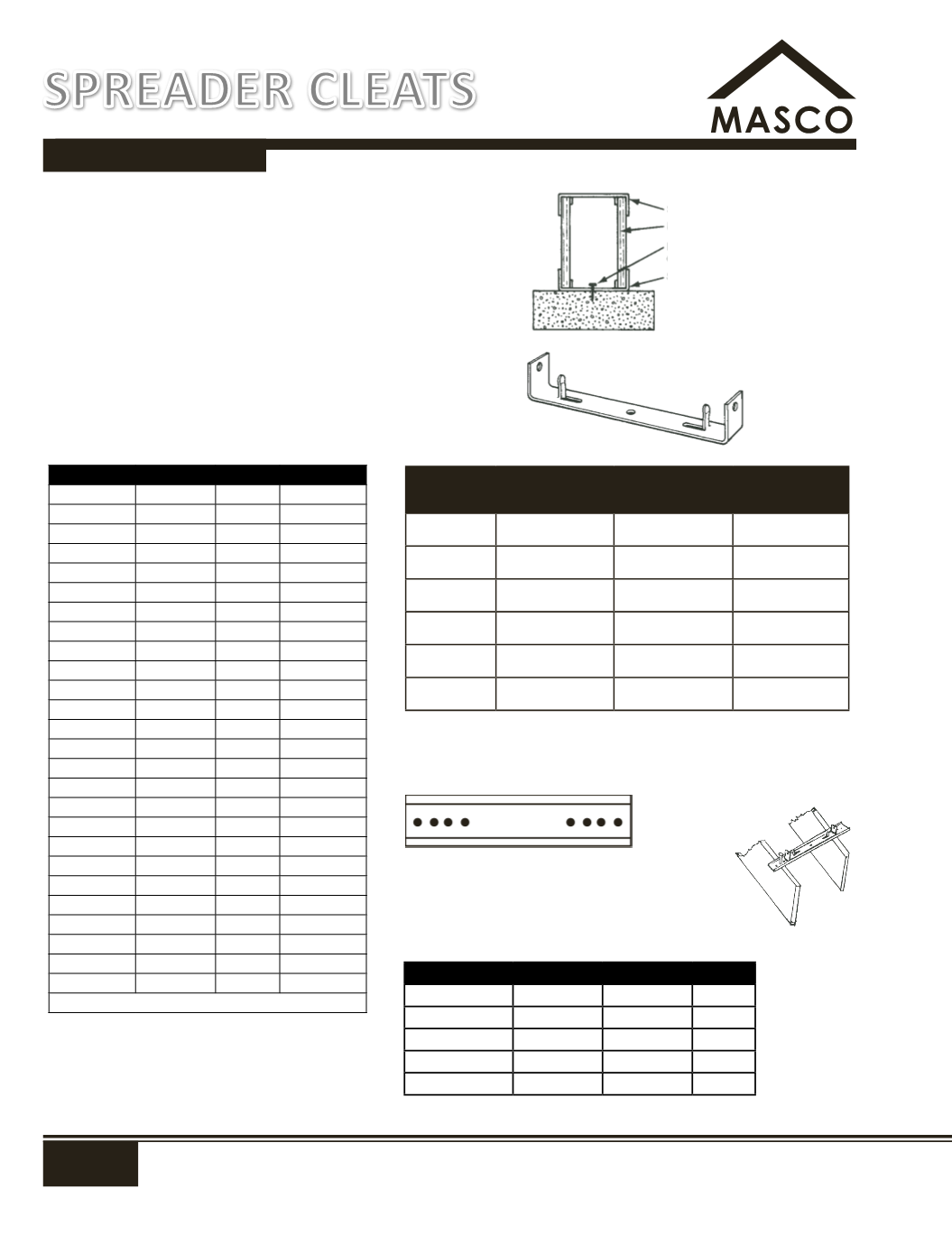

Spreader Cleats are used for forming
foundations up to 32" high. Space cleats at 32"
maximum centers for form panels up to 24" high.
For form panels over 24" and up to 32" high,
space cleats at 24" centers maximum. Caution
must be used with 3/4" thick panels 18" or higher
as extreme deflection may occur, unless snap
ties are also used. The stamped metal cleat
is available with 3/4" and 1-1/8" for plywood
panels. 2" for dimension lumber. SWL 750 lbs.
Monostrap
For single pour, inverted foundation. Used with
spreader cleats. Cleats install inside channel.
Monostrap length is equal to footing width plus 3".
20 pieces per bundle.
SWL provides a factor of safety of approximately 2 to 1
NOTE: The cleat spacings and rates of pour listed are the maximum
permissible for each size cleat. Masons Supply will not be responsible or
liable for form failures where themaximumcleat spacingor recommended
rate of pour has been exceeded.
Wall
Thickness
Panel
Thickness
Pours up to
24" Height
Pours up to
32" Height
6"
3/4" 1-1/8" 1-5/8"
32" Max Spacing 24" Max Spacing
8"
3/4" 1-1/8" 1-5/8"
32" Max Spacing 24" Max Spacing
10"
3/4" 1-1/8" 1-5/8"
32" Max Spacing 24" Max Spacing
12"
3/4" 1-1/8" 1-5/8"
32" Max Spacing 24" Max Spacing
14"
3/4" 1-1/8" 1-5/8"
32" Max Spacing
16"
3/4" 1-1/8" 1-5/8"
32" Max Spacing
Spreader Cleat
Plywood Panel
Nail Cleats to
Green Footing
Spreader Cleat
No.
Actual Size Footing Size Wt (lbs)
CT 15M
15"
12"
0.55
CT 17M
17"
14"
0.60
CT 19M
19"
16"
0.75
CT 23M
23"
20"
0.90
CT 27M
27"
24"
1.0
No.
Size
Qty/Ctn Wt/Ctn (lbs)
CT 634R
6" x 3/4"
100
35.0
CT 6118R 6" x 1-1/8"
100
38.0
CT 6158R 6" x 1-5/8"
100
42.0
CT 6414R 6" x 4-1/4"
50
35.0
CT 834R
8" x 3/4"
100
42.0
CT 8118R 8" x 1-1/8"
100
45.0
CT 8158R 8" x 1-5/8"
100
48.0
CT 8414R 8" x 4-1/4"
50
36.0
CT 1034R 10" x 3/4"
100
50.0
CT 10118R 10" x 1-1/8" 100
52.0
CT 10158R 10" x 1-5/8" 100
56.0
CT 1234R 12" x 3/4"
100
57.0
CT 12118R 12" x 1-1/8" 100
59.0
CT 12158R 12" x 1-5/8" 50
33.0
CT 1434R 14" x 3/4"
50
32.0
CT 14118R 14" x 1-1/8" 50
34.0
CT 14158R 14" x 1-5/8" 50
36.0
CT 1634R 16" x 3/4"
50
36.0
CT 16118R 16" x 1-1/8" 50
38.0
CT 16158R 16" x 1-5/8" 50
39.0
CT 1834R 18" x 3/4"
50
40.0
CT 18118R 18" x 1-1/8" 50
42.0
CT 18158R 18" x 1-5/8" 50
44.0
CT 2434R 24" x 3/4"
50
50.0
CT 24118R 24" x 1-1/8" 50
52.0
CT 24158R 24" x 1-5/8" 50
53.0
Other sizes available on request.
SPREADER CLEATS
