TIEING/HANDSET
Loop-Coil
™
Tie

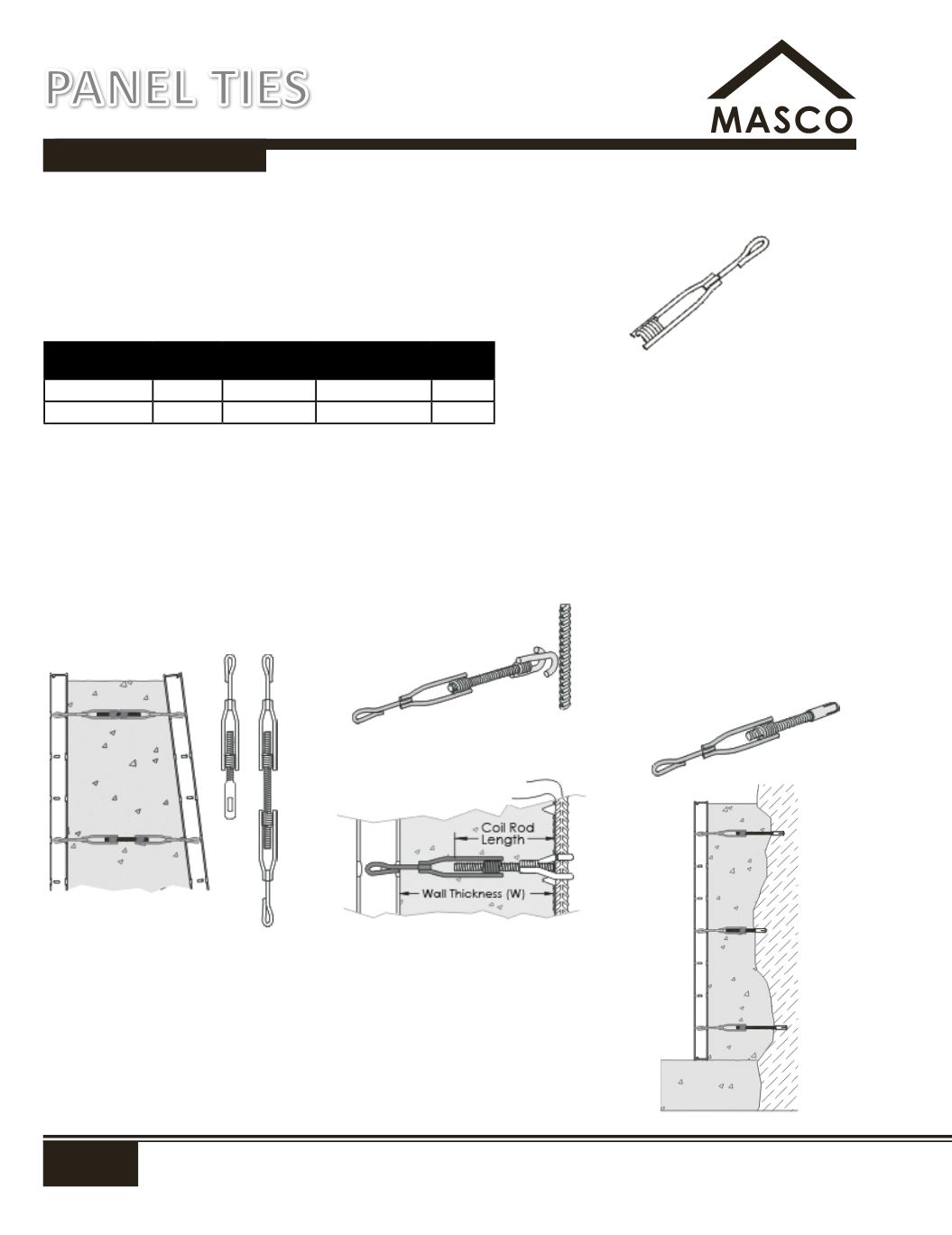

A multipurpose tie for modular form systems. Has a heavy-duty
loop panel tie on one end and a 1/2" rod adapter on the other.
Snaps off like normal loop panel tie. It is a low cost solution for
one-sided forming and adjustable-length ties. Welded to rigorous
standards using computer-controlled equipment: each tie is as
strong as a standard heavy-duty panel tie. 100 Pieces per carton.
CAUTION:
DO NOT BEND ANY PORTION OF LOOP-COIL TIES. DISCARD ANY BENT OR DAMAGED TIES.
Adjustable-Length Ties
Loop-Coil
™
Ties allow you to make
adjustable-length ties from off-the-shelf
components. Use a single tie and
reusable gang waler rod for ties down
to 4" length. Or, thread two ties back-
to-back onto a length of standard
1/2" coil rod for adjustable-length ties
for 8" walls and up.
Blind Side Walls
Form a blind side wall of any width
by simply threading a Loop-Coil Tie
and a Rebar Hook onto a length
of 1/2" coil rod. This fast way of
connecting to the rebar studs used to
back up Stay-Form
®
panels eliminates
costly, labor-intensive, custom-made
hook ties.
One-sided Forming
Loop-Coil
™
Ties provide a convenient
way to do one-sided forming. Secure
lengths of 1/2" coil rod into drilled
holes in existing wall with drop-in
anchors, rock anchors, epoxy, or
other means. Then screw on Loop-
Coil
™
Ties to proper wall thickness and
attach to modular forming panels.
Other standard 1/2" coil rod hardware
(Rebar Hooks, Coil-Lags
™
, toggle
bolts, plate washers and nuts, etc.)
can be used to secure to sheet piling,
plywood, or other materials.
No.
Size Rod SWL on
Tension (lbs) Min 1 Side Wall
Wt (lbs)
SD LC6
1/2" Coil
2,800
6"
0.28
SD LC6NC 1/2" NC 2,800
6"
0.28
SD LC6
Rebar Stud
Stay-Form
®
Panel
SWL provides a factor of safety of approximately 2 to 1.
PANEL TIES
