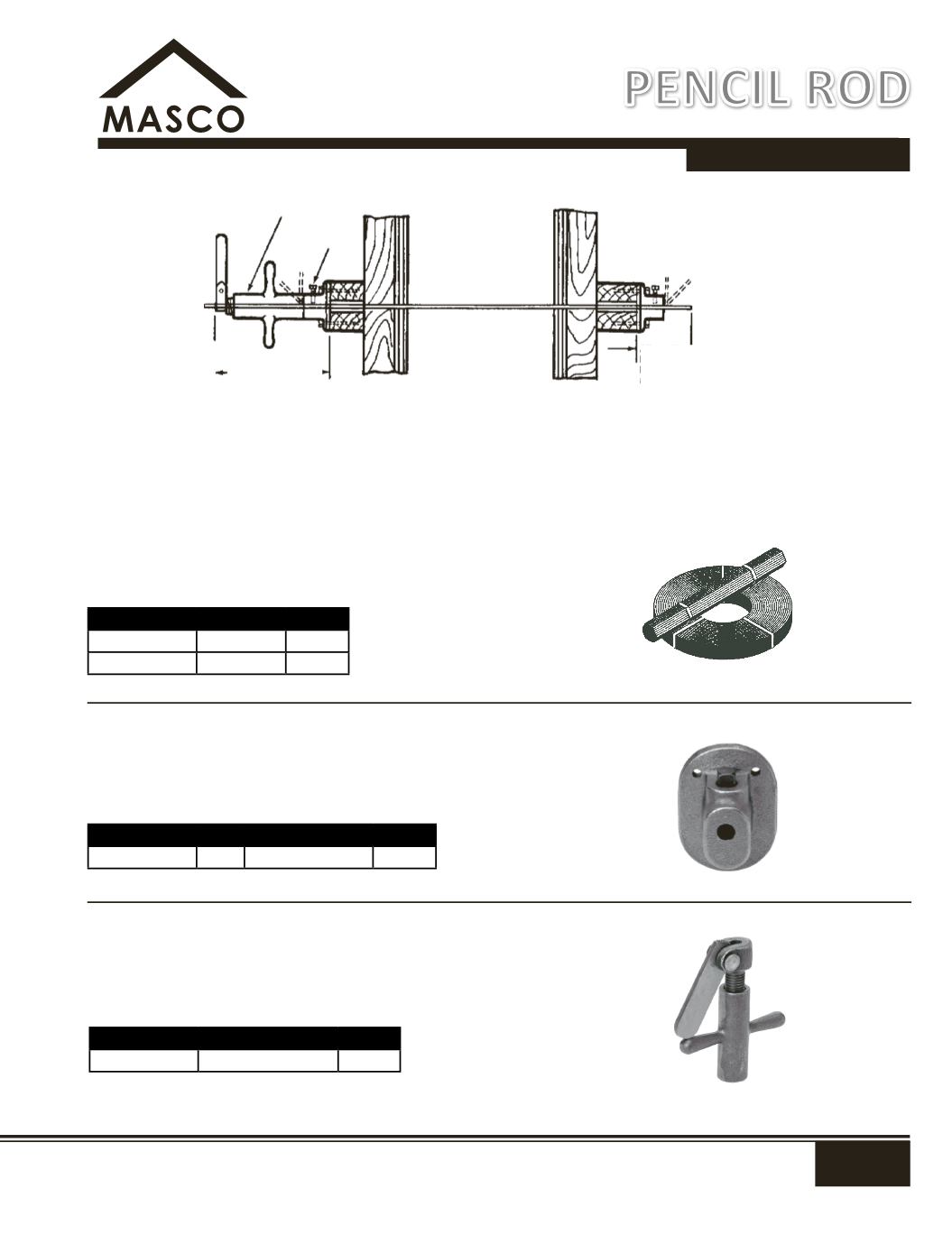

Pencil Rod
¼
" pencil rod is available in coil form or bundles of 20 ft. straight
lengths. If using coiled wire, must be straightened on jobsite
before using.
Rod Clamp
Set Screw Clamps available for
¼
" diameter rods. Fabricated
from ductile material suitable for use with mild steel wire rods
serving as the form tie. The spreader action is by some other
external means.
Tightening Wrench
This is required to draw wire tie rod up tight and hold it in position
until the set-screw in the rod clamp is tightened. A needed
accessory to the rod clamp.
SWL provides a factor of safety of approximately 2 to 1
The Pencil Rod System
is most commonly used in battered
walls and foundations of unusual width where snapties are not
practical. Pencil rod is simple and economical where surface
appearance and clean breakback are not essential.
TIGHTENING WRENCH
ROD CLAMP
ALLOW 9" FOR
TIGHTENING
WRENCH AND CLAMP
ALLOW 4"
PAST WALE
BEND ROD
AT 90 DEGREES
No.
Size
Wt (lbs)
W 14P
Coil 100 lbs.
0.14/lf
W 20PR
20' lengths
2.80/pc
No.
Size SWL Tensions (lbs) Wt (lbs)
DS 1RC
1/4"
1,125
0.40
No.
Size
Wt (lbs)
DS 1RODW 1/4" rod
1.30
PENCIL ROD
TIEING/HANDSET
