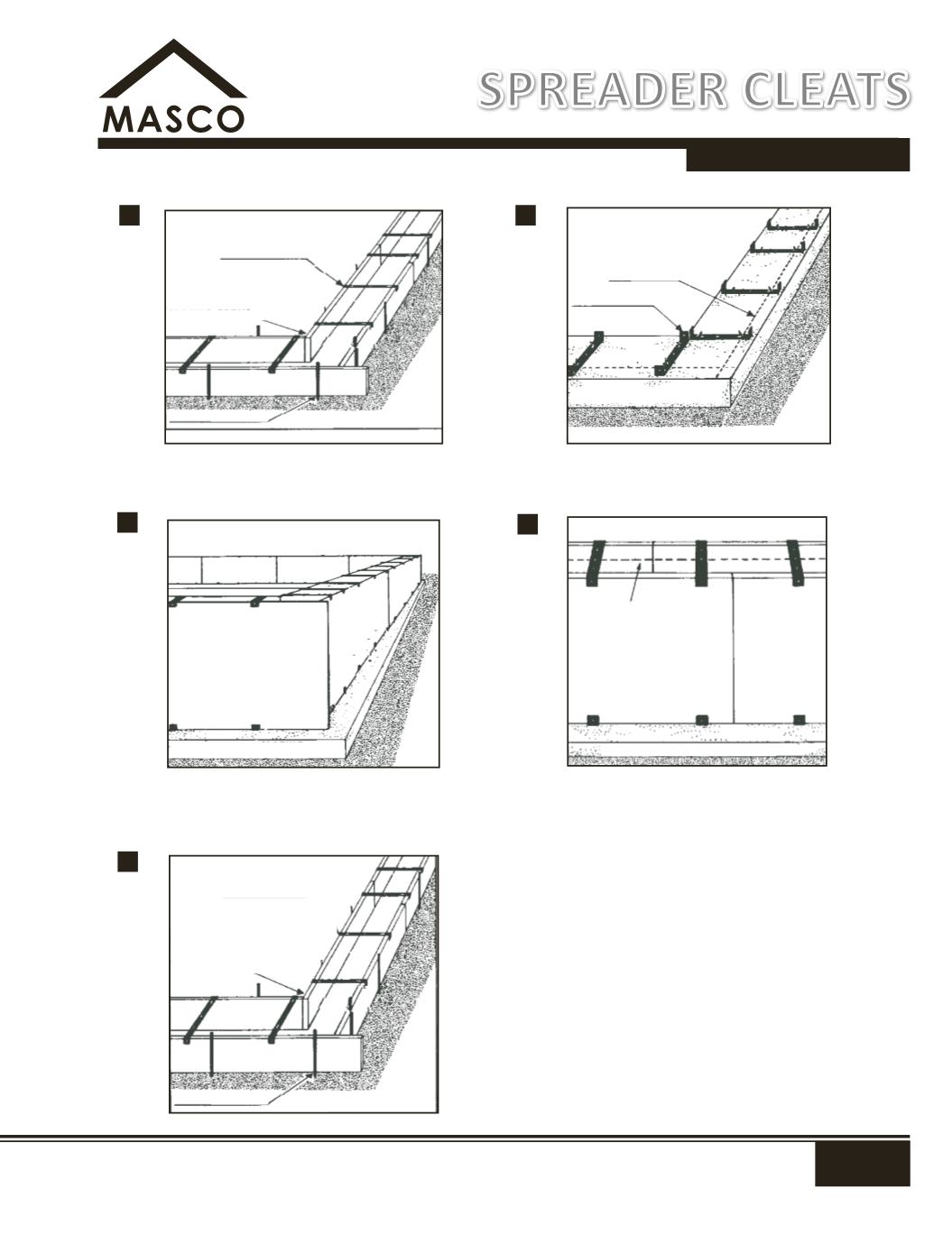

Footing Forms in position using Cleats & Stakes.
Cleats on building line, ready to set panels.
Nail corner clips
Panels held by Cleats top and bottom, ready for
grade, final alignment and pouring concrete.
Proper clip spacing on joint, showing
natural off-set of panel from a corner
start. Use same spacing top and bottom.
Sheet metal pan held in place by Cleats.
Pan eliminates cutting of inside panels and
provides starting point for stripping.
CLEATS
TOP AND BOTTOM
CLEATS
TOP AND BOTTOM
CLEATS
TOP AND BOTTOM
1
2.
FOOTING FORMS
CLEATS
FOOTING FORMS
BUILDING LINE
CLEATS
FOUNDATION
GRADE LINE
PANELS
CONCRETE FOOTING
CONCRETE FOOTING
STAKES
STAKES
CONCRETE FOOTING
SPREADER CLEATS
TIEING/HANDSET
