MASONS SUPPLY COMPANY
Oregon (800) 537-3407 ♦ Washington (800) 537-6216
Clackamas | Eugene | West Eugene | Hillsboro | Medford | Portland | Salem | Wilsonville | Ridgefield | Seattle | Tacoma | Woodinville
M A S C O . N E T
TIEING/HANDSET
Modular Panel Ties
Masons offers a comprehensive line of panel ties for handset or gang
formed applications where clean breakbacks and smooth concrete
surfaces are required. While S-panel ties provide a standard 1" breakback
that is easily patched. They are also offered with #30 durometer neoprene
water seals, as well as 1½" breakback cones, that can be supplied on
either or both ends of the tie-depending upon specifications. Stainless
steel is available for architectural applications, as well. All panel ties are
manufactured to demanding tolerances, with thorough testing from raw
material to final product.

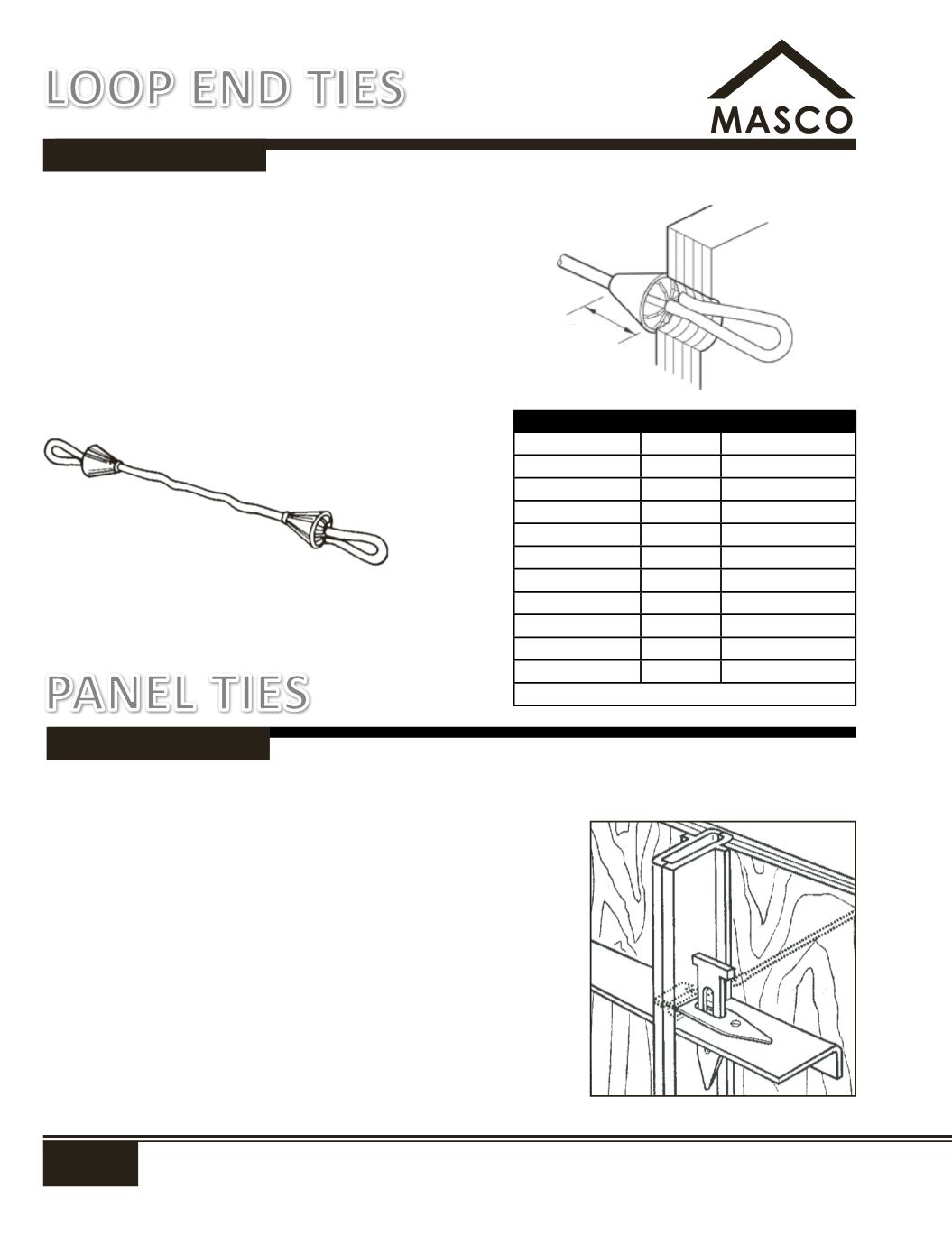

Loop End - Camlock
The self-centering loop ties are fabricated from
medium carbon wire. Loops are electrically welded
to insure consistent, safe working loads. This tie is
fabricated utilizing a unique style of plastic cone.
Cone is designed with a protruding back section
which fits snugly into a 13/16"dia. hole drilled in
the plywood form. Self-centered cone causes
the drilled hole to be totally covered by the cone,
greatly reducing the grout leakage through the
form tie hole. 100 pieces per carton. SWL 2,250 lbs.
SWL provides a factor of safety of approximately 2 to 1.
TIEING/HANDSET
No.
Size
Wt/Ctn (lbs)
GT 44060
6"
20.6
GT 44080
8"
22.0
GT 44010
10"
25.0
GT 44012
12"
27.0
GT 44014
14"
29.0
GT 44016
16"
31.0
GT 44018
18"
33.0
GT 44020
20"
35.0
GT 44022
22"
37.0
GT 44024
24"
40.0
GT 44036
36"
45.0
Other sizes and neoprene washers are available on request.
PLYWOOD
25 mm (1")
BREACK BACK
LOOP END TIES
PANEL TIES
