CASTinTACT
®
Additional information available on
www.CASTinTACT.comCASTinTACT
®
A dependable long term solution meeting ADA Federal Guidelines for
detectable warning. Designed for exterior use at the bottom of curb
ramps and other locations such as depressed corners, raised crosswalks,
raised intersections, borders of medians and islands, the edge of transit
platforms, and sidewalks where railroad tracks cross as required under
Section 504 of the Rehabilitation Act of 1973 and the American with
Disabilities Act - 28 CFR Part 35 Title II and 28 CFR 36 Title III.
CASTinTACT
®
- High strength cementitious concrete panels - enhanced
with microsilica - 3 dimensionally reinforced with structural fibrillating
monofilament fibers.
Cementitious concrete panels offer dimensional stability and compatibility
to concrete; similar co-efficient of expansion as base. Superior strength,
durability andabrasion resistanceachievedwith an engineeredmix design.
Microsilica enhanced to increase compressive strength and reduce
permeability to chloride ion intrusion; resists severe exposure to wet
freeze thaw damage and de-icing chemicals.
Three dimensional reinforced with fibrillating monofilament fibers to
increase flexural strength, ductility and toughness.
Panels are architectural finished to enhance concrete work. Full depth
UV and weather proof integral colors provides long term visual contrast.
Textured concrete finish for wet and dry slip resistance.
CASTinTACT
®
panels are uniquely installed in a patented early entry-fast
set method that takes 10 minutes.
Panels are recessed flush to surface
and bond to concrete base becoming a integral and permanent part
of the walking surface. Because they are concrete, they offer long term
durability, compatibility, similar coefficient of expansion as the concrete
base, and easy to clean, maintain and repair.
0.9"
0.20"
1.0"
0.60"
0.25"
RADIUS
0.1875"
0.1875"
Wedge
anchor
locks into
concrete

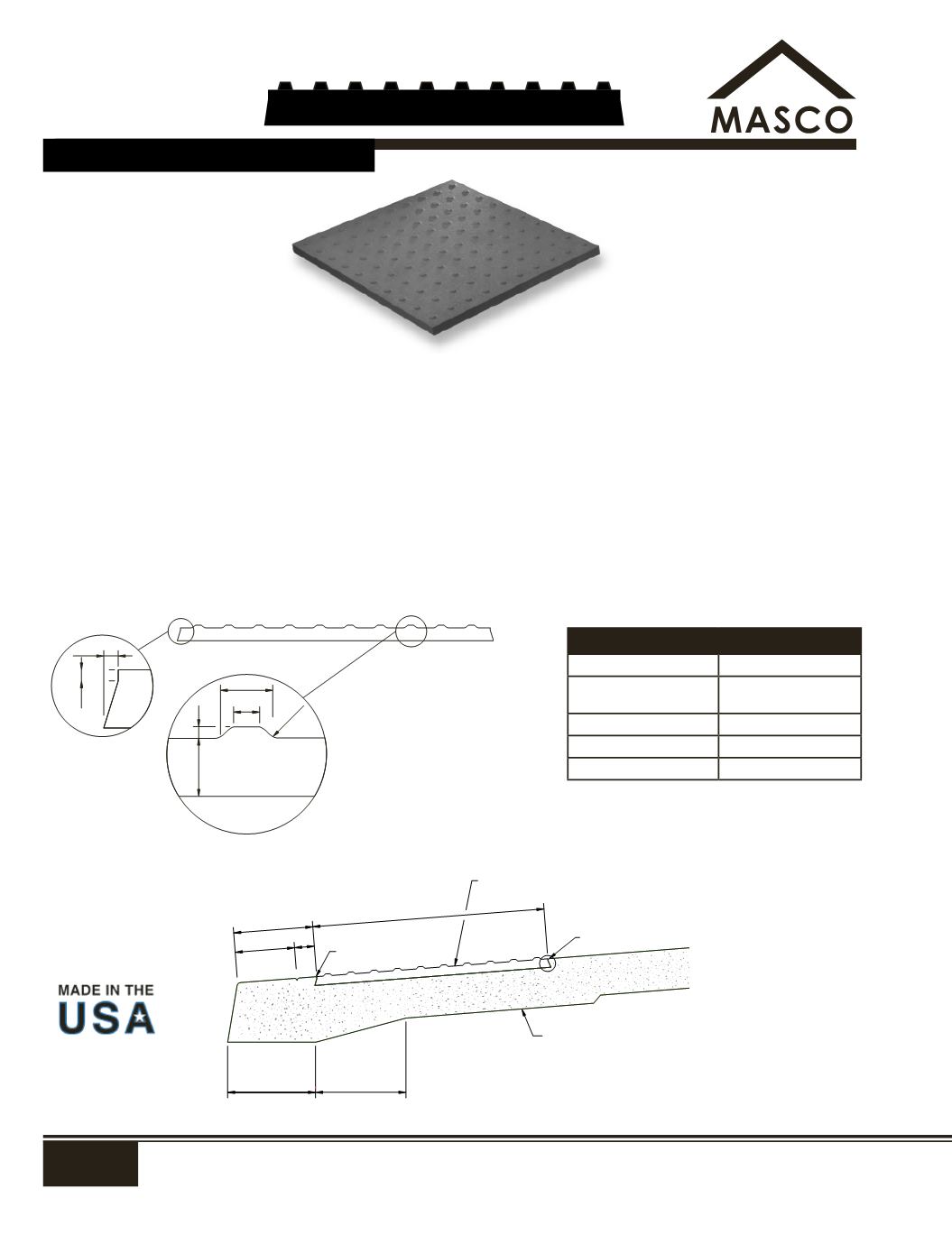

Dome Specifications
Dome Base
0.9"-1.4" (23-36 mm)
Dome Top
50-65% of the base
diameter
Dome Height
0.2" (5 mm)
Dome Spacing
1.6" min - 2.4" max
Base to Base Spacing 0.65" (17 mm) min
Place CASTinTACT
®
3 at the
bottom of curb ramps and
other blended transitions.
Install across the full width
of ramp a minimum 24" in
depth and set back 8" from
curb line.
CASTinTACT
®
- Installed Cross Section
600 (24")
200 (8")
THICKEN SLAB UNDER TACTILE PANEL
WEDGE ANCHOR DESIGN
MASCO CASTinTACT 3
®
DETECTABLE WARNING PANEL
225 (9")
300 (12")
150 (6")
50
1/8" RADIUS
(2")
MA O CASTINTAC
®
DET CTABLE WARNING PANEL
T ICKEN SLAB UNDER T CTILE PANEL
EDGE ANCHOR DESIGN
Concrete Tactile Warning Panels
