TILT-UP/PRECAST
TILT-UP
Tilt-up 3 system
Offers the Tilt-Up contractor an economical, strong method
to lift, handle and place concrete tilt-up wall panels.
The System features a design that utilizes the same lifting
hardware for both face lift and edge lift applications.
This system is a high quality, high strength, quick connect
disconnect.
T-90-F Face Lift insert
Furnished as an assembly, complete with the strong
forged foot insert, wide spread, stable plastic base,
floating rebar clip and plastic locator setting plug. The
face lift insert is easy to position and tie to the rebar
mat. The rebar clip provides a quick, positive method of
fastening the insert to the rebar mat. The clip slips onto
the body of the insert where it floats with any movement
of the rebar mat, preventing misalignment of the insert
due to fluctuations of the rebar mat.
T-92 lifting hardware
Consists of a clutch body, curved bolt/release arm
and high strength bail. The bail is designed to readily
align itself to the pull of the rigging. Once the hardware
is properly engaged and under load, the hardware
cannot be disengaged. Remote ground release is
easily accomplished after the load has been relaxed.
The hardware is designed to service both face lift and
edge lift system conditions. SWL is 15,000 lbs. with an
approximate factor of safety of 5 to 1.
DO NOT use with seeded aggregate 1/2" or larger as aggregate may "pop out" during the erection process, resulting in a reduced insert
safe working load.

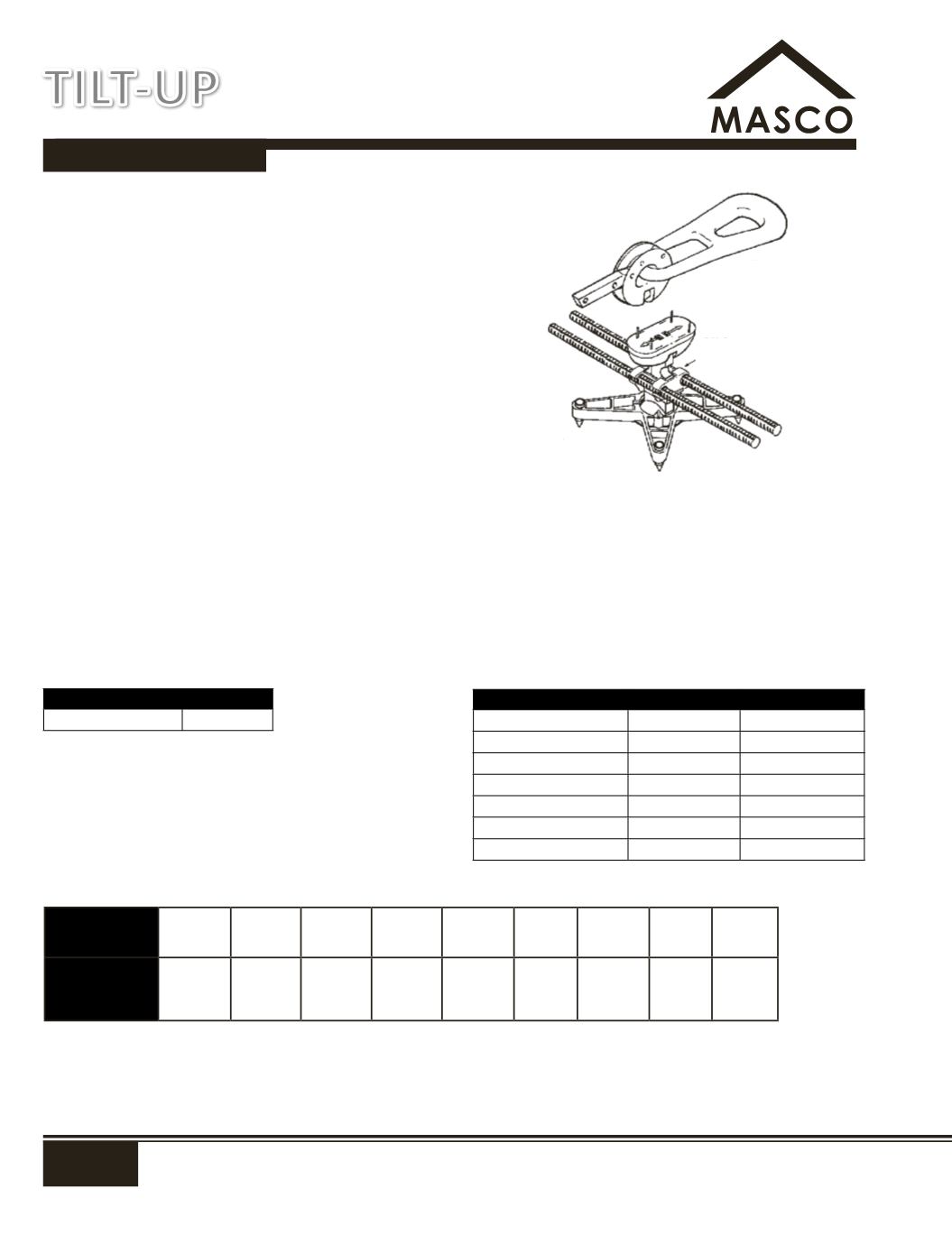

T-90-F face Lift Insert
T-90-C
Floating Rebar Clip
T-92 Lifting
Hardware
Structural Panel
Thickness
5"
5-1/2"
6"
6-1/4"
6-1/2"
7"
7-1/4"
7-1/2"
8"
Insert Safe
Working Load
(lbs)
8,000
10,000
12,000
12,500
13,000
15,000
15,000
15,000 15,000
T-90-F Face Lift Insert Selection Chart:
No.
Wt (lbs)
DS 122026
10.0
No.
Size
Wt (lbs)
DS 5FL
5"
1.60
DS 512FL
5-1/2"
1.65
DS 6FL
6"
1.70
DS 612FL
6-1/2"
1.75
DS 7FL
7"
1.80
DS 712FL
7-1/2"
1.85
DS 8FL
8"
1.90
SWL provides a factor of safety of approximately 2 to 1 in 2,500 psi normal weight concrete.
Consult manufacturers data on values on shear and reduced edge distance.
