TILT-UP/PRECAST
TILT-UP
Set
Body
Lid

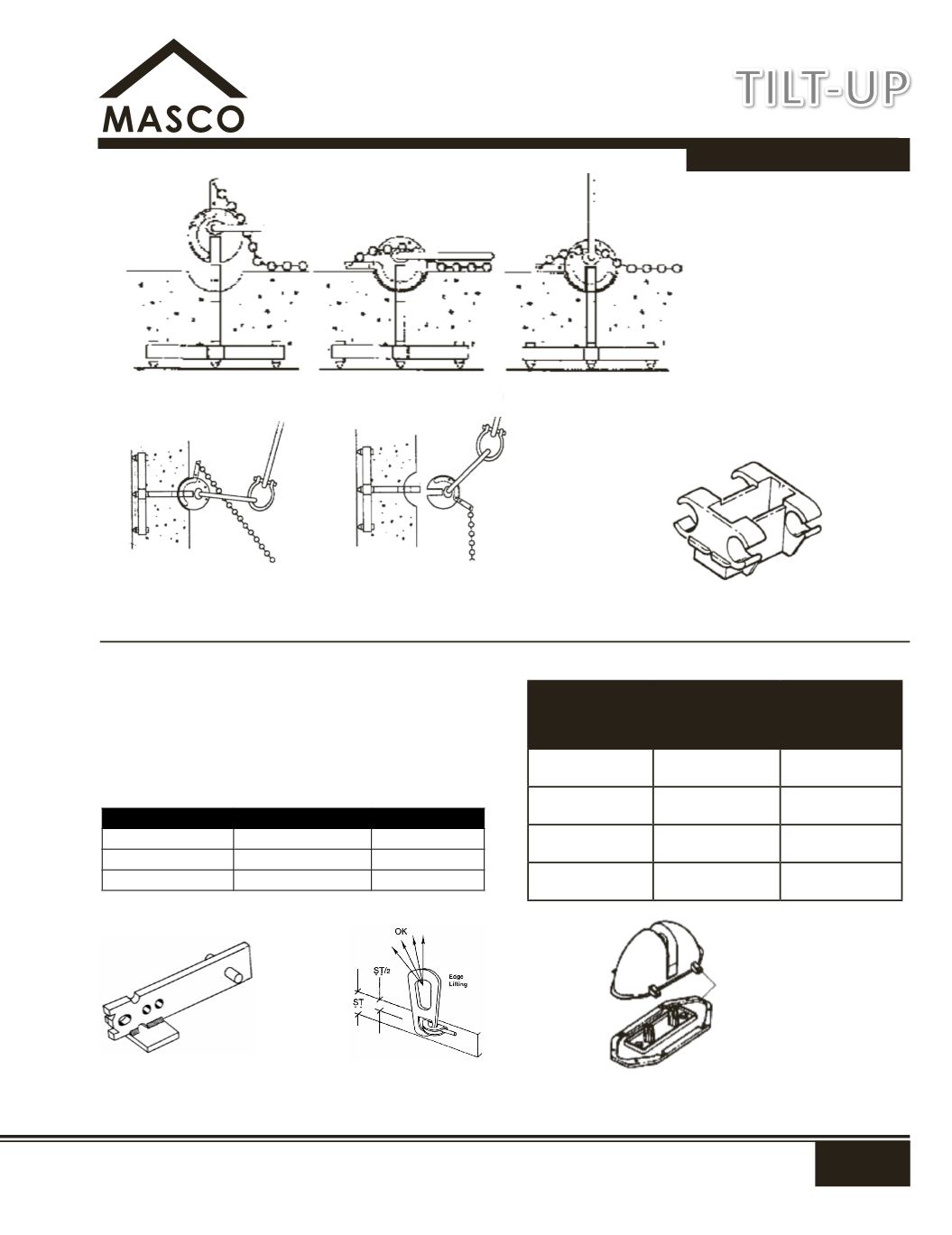

T-90-E Edge Lift Insert
Has an integral shear plate for maximum transfer of
shear load into the concrete. The insert is furnished with a
disposable recess plug that is used to attach the assembly
to the panel form. Make certain that the crane applies
the lifting load in a direction toward the top of the panel
or perpendicular to the casting bed. DO NOT allow the
crane to apply a load toward the bottom of the panel.
SWL provides a factor of safety of approximately 2 to 1 in 2,500 psi normal weight concrete.
Consult manufacturers data on values on shear and reduced edge distance.
The crane line should be
slackened slightly to permit the
release of the lifting hardware.
To release the hardware, apply
a quick, even downward force
to the release line.
T-90-E
Edge Lift Insert
T-90-C
Rebar Clip
Structural Panel
Thickness
Shear
Safe Working
Load (lbs.)
Tension
Safe Working
Load (lbs.)
4"
4,300
4,700
5"
5,250
5,900
6"
6,200
7,000
7"
7,050
8,200
T-90 Edge LIft Chart:
No.
Size
Wt (lbs)
DS FL147
2 ton
2.25
DS FL148
4 ton
5.41
DS FL149
8 ton
10.50
P-99-D
Disposal Recess
Plug
Top of Panel
Top of Panel
Top of Panel
Tilt-Up 3 Hardware in open
position.
Hardware nested in the insert void and
Bolt/Release arm engaged.
Installation Completed.
