TILT-UP/PRECAST
TILT-UP

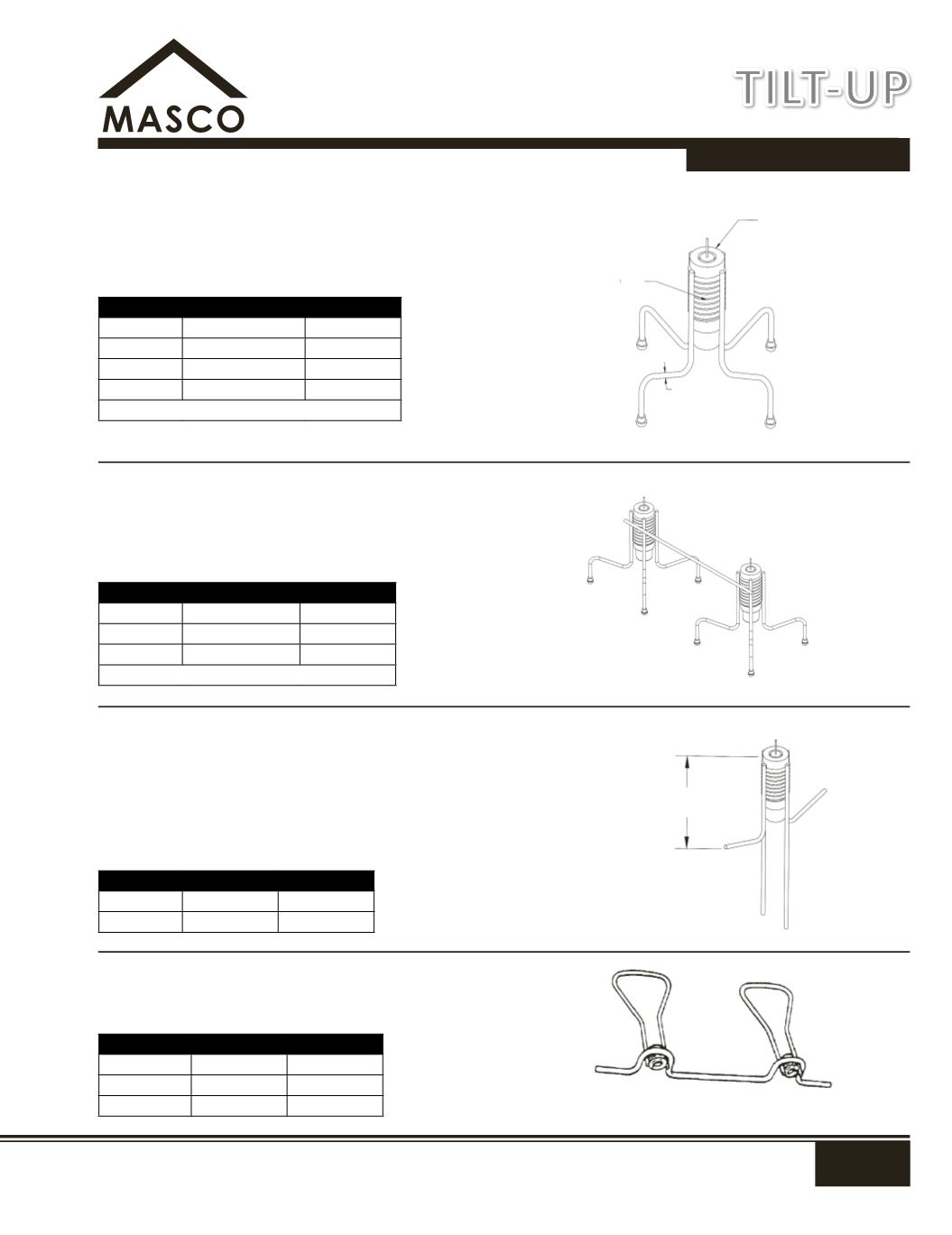

Edge Pick-Up Insert
Edge pick insert is used in the edge of precast or tilt up panels for
lifting purposes. It is available with 3/4" or 1" dia. coils and uses
standard coil bolts for setting and lifting.
Slab Brace Anchor
Slab Anchors are 3/4" diameter inserts designed for anchoring
wall braces to the floor slab. Slab Anchors have two legs that are
pushed into the subgrade. Slab Anchors are designed for use
in concrete slabs with a minimum thickness of 5" and minimum
strength of 2,500 psi. Care must be taken when positioning the
anchors. The horizontal strut bends must rest atop the subgrade
for proper positioning. Do not allow the bends to be pushed into
subgrade.
Single Pick-up Insert
Used for fixing braces, attaching strongbacks and lifting. Wire
legs have plastic tips and insert has a locator plug to locate
the fixing point when the panel is erected. Minimum 15" edge
distance is highly recommended or loads have to be reduced.
Approximate 2:1 safety factor rating in 2500 psi concrete.
Double Pick-up Insert
Plastic tipped and have locater plugs installed. Available in 1"
and 1-1/2" diameter. Spaced 12" and15" from center. Used in
combination with angle lifting plate. Minimum coil penetration
for 1" is 2-1/2" and for 1-1/2" is 3". Approximate 2:1 safety factor
rating in 2,500 psi concrete.
No.
Size
Wt (lbs)
DS T11512 1" x 5-1/2"
1.31
DS T116
1" x 6"
1.33
DS T11146 1-1/4" x 6"
1.92
DS T11147 1-1/4" x 7"
1.95
Other sizes available on request.
No.
Size
Wt (lbs)
DS T216
1" x 6"
3.04
DS T21612 1" x 6-1/2"
3.06
DS T217
1" x 7"
3.10
Other sizes available on request.
No.
Size
Wt (lbs)
DS T45
5"
1.00
DS T46
6"
1.25
No.
Size
Wt (lbs)
DS T33412 3/4" x 12"
3.0
DS T3112
1" x 12"
3.3
DS T311412 1-1/4" x 12"
3.5
PLASTIC INSERT
COIL
.250"
SWL information available on request.
SLAB
THICKNESS
