TILT-UP/PRECAST

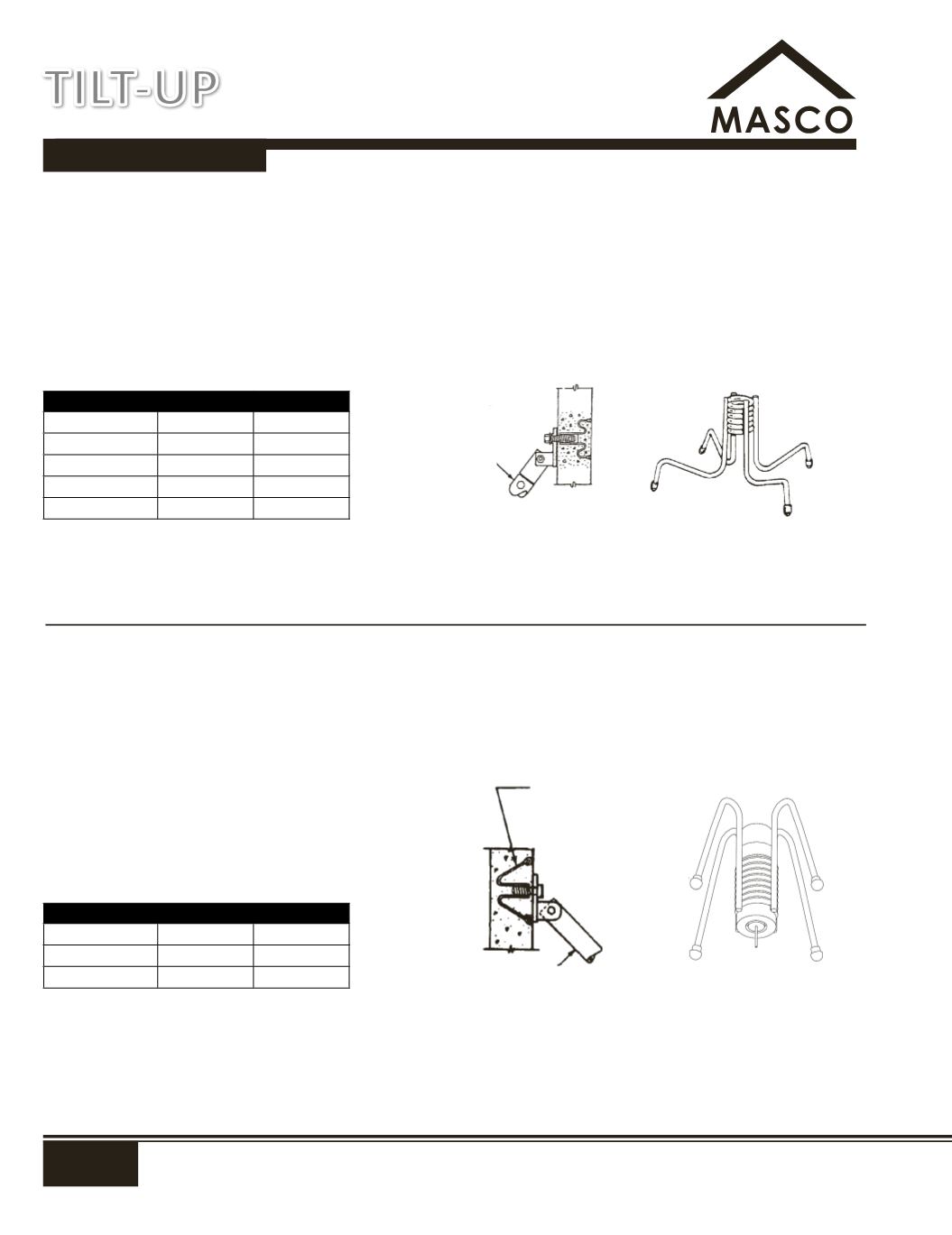

Wall Brace Anchor
For use in panels where the brace is to be attached to
the "up face" of the panel as it lies on the casting slab.
These anchors are often referred to as "standard" Brace
Anchors. Use standard coil threaded bolts. Available
in plastic tipped feet and insert locator plugs installed.
Recommended minimum distance from edge of panel or
panel opening is 12".
SWL information available on request.
Inverted Wall Brace Insert
For use in panels where the brace is to be attached to
the "down face" or underside of the panel after it is lifted
from the casting slab. These anchors are often referred to
as "inverted" anchors. Uses standard coil threaded bolts.
Supplied with plastic tipped feet and insert locator plugs
installed. Approximate 2:1 safety factor rating in 2500 psi
concrete. Recommended minimum distance from edge
of panel or panel opening is 12".
No.
Size
Wt (lbs)
DS 512T6A ¾" x 5½"
1.13
DS 6T6A
¾" x 6"
1.17
DS 612T6A ¾" x 6½"
1.22
DS 7T6A
¾" x 7"
1.27
DS 712T6A ¾" x 7½"
1.31
No.
Size
Wt (lbs)
DS 5T5A
¾"
0.80
DS 512T5A
DS 6T5A
WALL BRACE
INVERTED WALL
BRACING INSERT
WALL BRACE
TILT-UP
