TILT-UP/PRECAST
TILT-UP

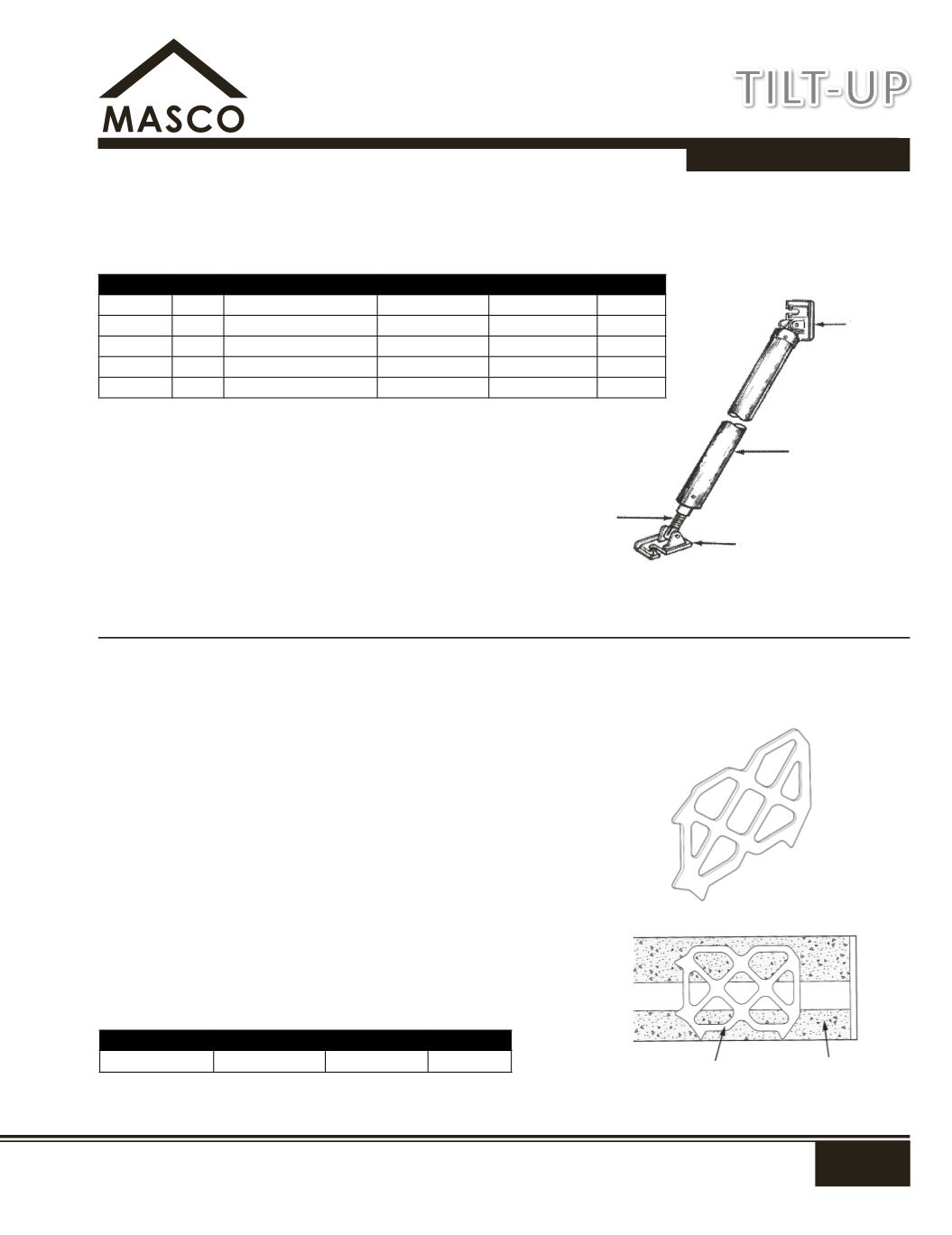

Delta Tie
A unique insulated precast concrete panel connector. It allows the
precaster to fabricate a highly energy-efficient, insulated precast concrete
sandwich wall panel using the insulating foam of his choice. This versatile
connector allows the foam insulation to be placed from pabel edge to
panel edge, eliminating thermal bridges and costly energy loss. The foam
insulation is sandwiched between two concrete wythes, or layers, to form
a long-lasting, energy-efficient precast concrete sandwich wall panel. The
three wythes are tied together using Delta Ties. Spacing of the Delta Ties
varies, baed on the panel's required composite moment capacity. The
Delta Tie is produced using an engineered composite matrix. It consists
of a geomatrically configured, two-dimensional truss manufactured from
continuous wound fiberglass embedded in an alkali resistant resin. The
design of the Delta Tie produces a connector of remarkable strength
and durability. The non-metallic, non-corrosive design of the Delta Tie
eliminates any thermal transfer through the panel, increasing the insulating
efficiency of the panel. Advantages include an increased load bearing,
stiffer insulated panels, design flexibility, cost reduction, quick and easy
installation, and applicable to all brands of foam panel insulation.
No.
Size
Wt/Ctn (lbs)
Qty/Ctn
DS 124107
5" x 7"
25.0
200
Adjusting Screw
Wall Plate
Fixed Length Pipe
Foot Plate
Fixed Brace
No.
Brace Range
Color Code
Pipe****
Wt (lbs)
DS 10039 B-7 Approx 16'-3" to 17'-9"
Red/White***
4" OD x 15'
105.0
DS 10046 B-8 Approx 21'-3" to 22'-9"
Red/White***
4" OD x 20'
140.0
DS 10047 B-9 Approx 26'-3" to 27'-9"
Red/White***
4" OD x 20' + 5'
175.0
DS 10048 B-10 Approx 31'-3" to 32'-9"
Red/White***
4" OD x 20' + 10'
210.0
DS 09025 B-12 Approx 31'-3" to 32'-9"
N/A
5½" OD x 30'
305.0
Fixed Braces
*** Red - Dayton Style
White - Richmond Style
**** Measurements are of pipe only - screws, swivels not included
3
½
" pipe - 4" outside diameter, 3
¾
" inside diameter
5" pipe - 5
½
" outside diameter, 4
⅞
" inside diameter
DELTA TIE
INSULATED
CONCRETE
PANEL
