TILT-UP/PRECAST
PRECAST
SWL provides a factor of safety of approximately 4 to 1 in 3,500 psi normal weight concrete.
Consult manufacturers data on values on shear and reduced edge distance.

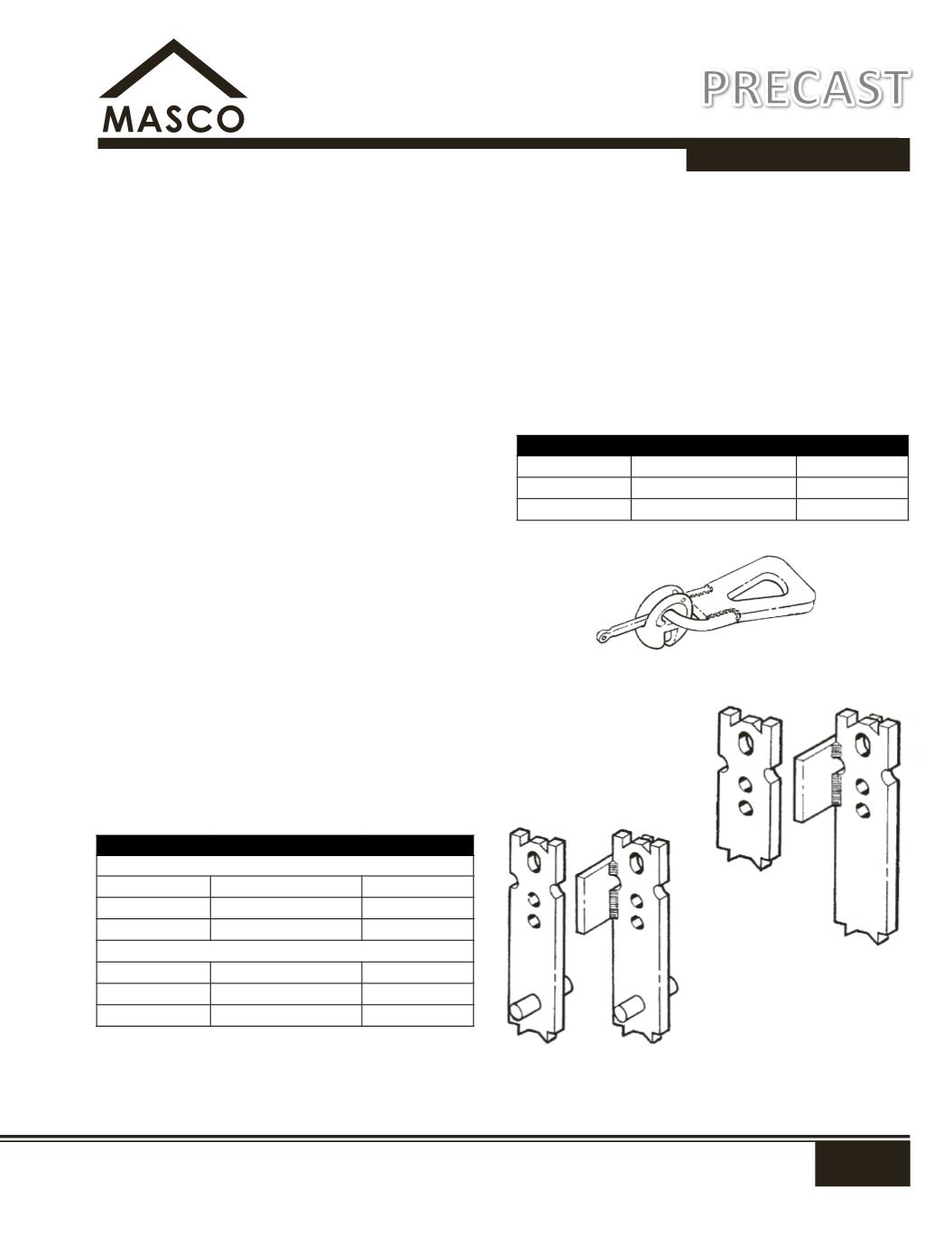

Fleet-Lift System
The Fleet Lift System is an economical, quick connect
disconnect system which allows precast concrete units to be
handled repeatedly with speed and safety. The fleet lift ring
clutch is easily connected to the anchor. The high quality and
heavy duty construction of the fleet lift ring clutches will give
years of safe use. Fleet Lift Anchors are available in 1, 2, 3, 4,
6, and 8 ton capacities. Each system component is clearly
marked in tons with the maximum safe working load. This system
is extremely versatile, being suitable for vertical and diagonal
pulls. It can be used to raise concrete units from the horizontal
to the vertical without the aid of a tilting table.
P-91 Ring Clutch
P-91 Fleet Lift Ring Clutches consists of a clutch body, curved
bolt and a high strength steel bail. Attachment is as simple as
sliding the curved bolt to the opened position, placing it over
the anchor head and sliding the bolt to the closed position. The
design of the steel bail permits full 360° rotation and will easily
align itself with the rigging, allowing the safest position for lifting.
Once engaged and under at least four hundred pounds of load,
the clutch cannot be intentionally or accidently disengaged.
When remote release is required, it can be easily accomplished
with a lanyard after the load has been released. SWL provides a
factor of safety of approximately 5 to 1 ultimate to rated load.
P-92 Erection Anchors
P-92 Erection anchors are engineered from high strength
steel. All P-92 Erection Anchors have a special head design to
control ring clutch pressure so it never bears on the concrete,
helping to eliminate spalling during edge lifting. All anchors are
available in plain finish, hot dipped galvanized or the durable
and economical epoxy coating. P-92 Erection Anchors come
in many different styles. The most popular is the standard P-92
Erection Anchor. This anchor is used with a fleet lift shear bar to
safely lift precast elements from the edge in shear and transfer
to tension. The P-92 Erection Anchor with shear plate eliminates
the need for the shear bar. The shear plate accomplished the
same function as the standard erection anchor and shear bar.
The P-92-H Two Hole Erection Anchor, the most economical
erection anchor, uses a shear bar or shear plate to resist shear
and a required tension bar to safely lift and handle precast
units from the edge. P-92 Erection Anchors are available in 2, 4,
6, and 8 ton capacities.
P-92-P
ERECTION ANCHOR WITH SHEAR PLATE
P-92
ERECTION ANCHOR
No.
Size
Wt (lbs)
P-92
DS FL047
2 Ton
1.80
DS FL048
4 Ton
4.61
DS FL049
8 Ton
9.65
P-92-P
DS FL147
2 Ton
2.25
DS FL148
4 Ton Galvanized
5.41
DS FL149
8 Ton
10.46
No.
Size
Wt (lbs)
DS FL001
2 Ton – 3 Ton
4.60
DS FL002
4 Ton – 6 Ton
9.00
DS FL003
8 Ton – 10 Ton
20.00
P-92-H
Two Hole
Erection Anchor
P-92-HP
Two-Hole Erection Anchor
with Shear Plate
