TILT-UP/PRECAST
PRECAST

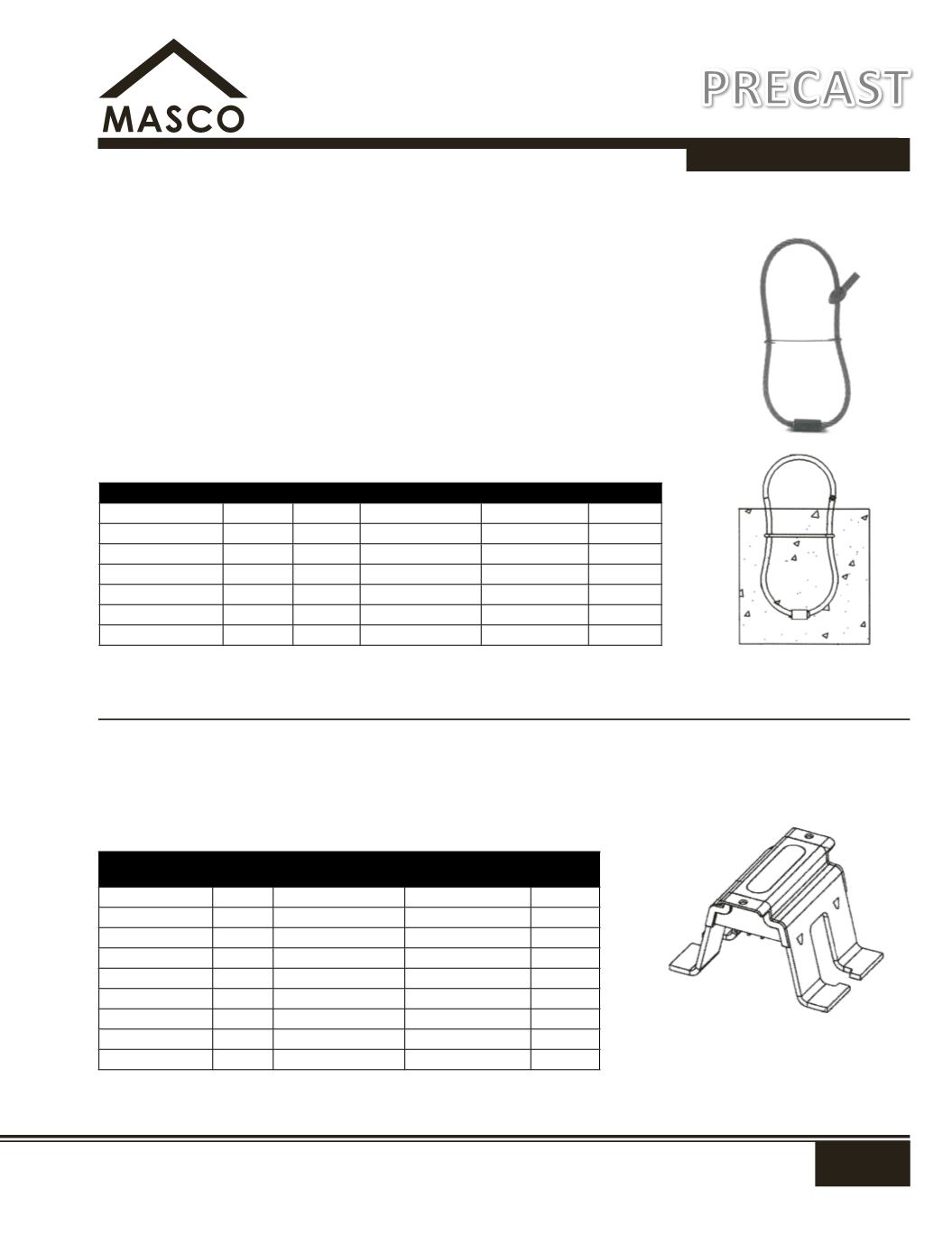

P-110 Wire Rope Lifting system
An economical lifting loop for utility type structures. It is used in either face or edge lifts
applications and is 'mucked' into the surface of the concrete. The galvanized wire rope is
formed in a figure 8 shape, with the ends of the rope secured by a positive swaged clamp,
and a steel band at approximately the mid point to establish proper shape. The Wire Rope
Lifting System is embedded 2/3 of it's length into the concrete. The hardware must be
standard hook or clevis with a diameter at least twice the rope diameter.
Features & Benefits:
• 7 Standard sizes - handles most precast applications up to 10,000 lb swl
• Mucked into surface - no recess members required by the precaster
Uses standard jobsite Crosby Hooks - no hardware purchases required by precaster
• Galvanized wire rope - reduces rusting of the anchor
• Can be cut off or left exposed - reduces labor cost for precaster
• Economical for the cost concious precaster
No.
Capacity SWL (lbs) Wire Rope Length Rope Diameter Wt (lbs)
0.8T
1,600
21"
0.236"
1.2T
2,400
24"
0.276"
1.6T
3,200
26"
0.315"
2.0T
4,000
31"
0.354"
2.5T
5,000
32.5"
0.394"
3.8T
7,600
37"
0.472"
5.0T
10,000 38"
0.551"
Note: SWL is 4:1 in 3,000 psi concrete
SWL provides a factor of safety of approximately 4 to 1 in 3,500 psi normal weight concrete.
Consult manufacturers data on values on shear and reduced edge distance.
P-38 Core Wall Slotted Insert II
Designed to create a higher load capacity and greater ease to install the
product. 7 gauge one piece steel tampered body. One piece plastic void former
and removable plastic cap. 3/4" - 10 special nut design.
No.
Size Tension Safe
Working Load (lbs)
Shear Safe
Working Load (lbs) Wt (lbs)
2.5" x 4" 4,660
5,150
2.5" x 6" 5,500
6,400
2.5" x 8" 5,500
7,300
3.5" x 4" 6,300
8,600
3.5" x 6" 6,750
8,700
3.5" x 8" 7,100
8,700
4.5" x 4" 8,600
10,700
4.5" x 6" 8,800
10,950
4.5" x 8" 9,100
10,950
