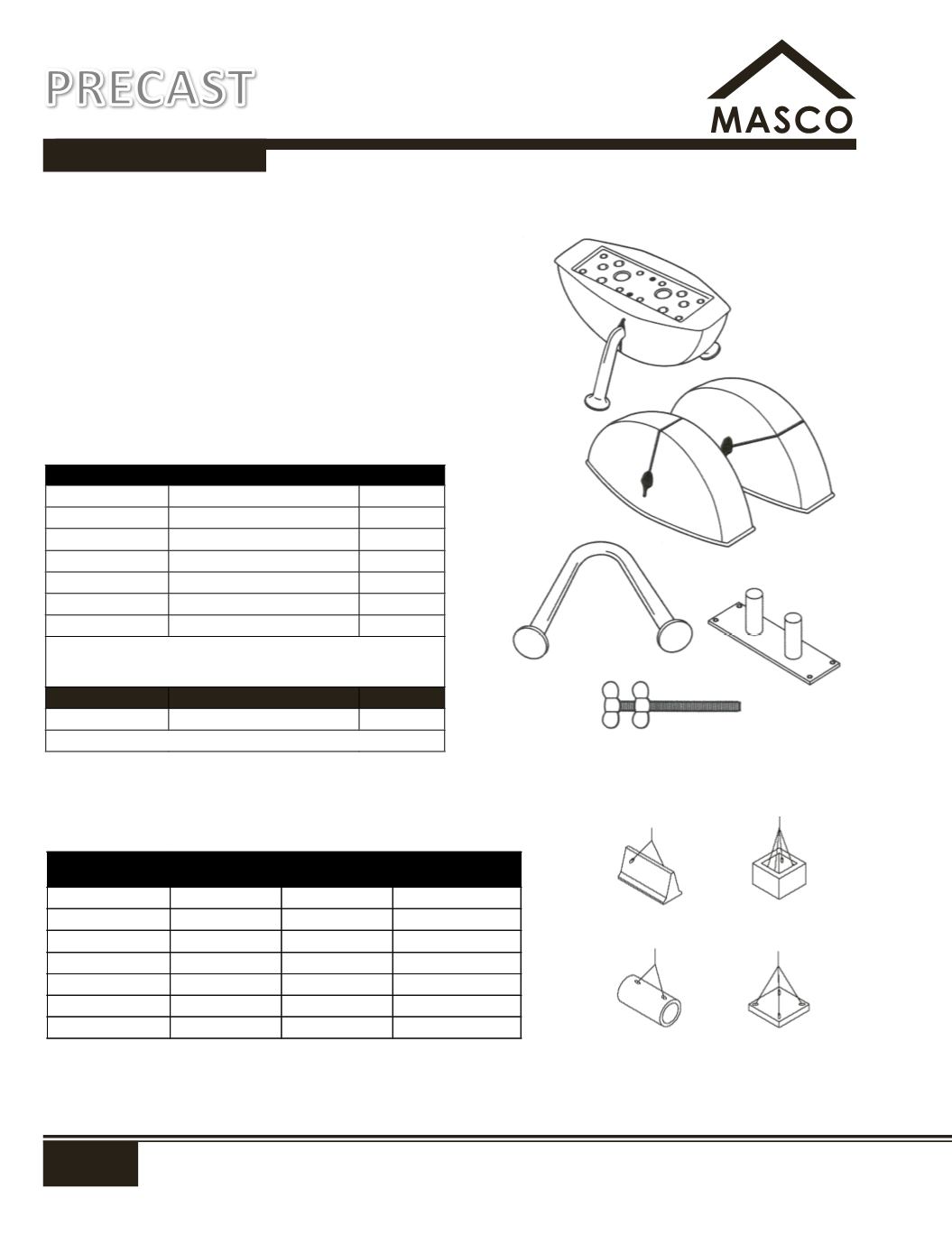

TILT-UP/PRECAST
No.
Slab Thickness
Wt (lbs)
DS 44A444
4"
DS 54A444
5"
DS 64A444
5-5/8"
DS 54A671
5"
DS 64A671
5-5/8"
DS 84A671
7-5/8"
DS 124A875
12"
Coil Rod Assembly
Used with rubber former with threaded hole.
Two Wing nuts are included.
No.
Size
Wt (lbs)
DS FL131
6-3/8" x 3/8"
0.20
Easy Lift Wet Set Plate
BOXES
BARRIERS
SLABS
PIPE
Working load is based on 4:1 safety factor of the anchor and on minimum 4000 psi normal weight concrete.
No.
SWL Shear Load
(lbs)
SWL 45
o
Load
(lbs)
SWL Tension Load
(lbs)
DS 44A444
5,800
2260
3,200
DS 54A444
7,710
2730
3,860
DS 64A444
4,460
3150
4,600
DS 54A671
8,430
3220
4,560
DS 64A671
15,780
5170
7,320
DS 84A671
18,500
7660
10,830
DS 124A875
24,000
24000
24,000
Note: The Easy Lift used as a pulling iron the SWL can be increased by 33%
Load Chart for Easy Lift
Utility Anchor System
Designed to economically simplify the lifting and handling of
precast concrete elements. Its economics, ease of use and
versatility will be a welcome addition to your precast operations.
Key Advantages
• High Strength - Up to 24,000 lbs. SWL
• No special lifting hardware required
• Uses a standard hook or clevis
• Easy to install and use
• Utilizes reusable 90˚ and 45˚ polyurethane recess plugs
• Eliminates "through holes" in the precast element
• An economical and versatile system - applicable to
any precast concrete element
P-76 Utility Anchor &
Double Tee Anchor
Setting Plug
P-76 Utility Anchor
Setting Plugs
45°
90°
P-75 Utility Utility
Anchor
P-101 Utility Anchor
Holding Rod
P-100 Utility
Anchor
Holding Plate
PRECAST
