MASONRY

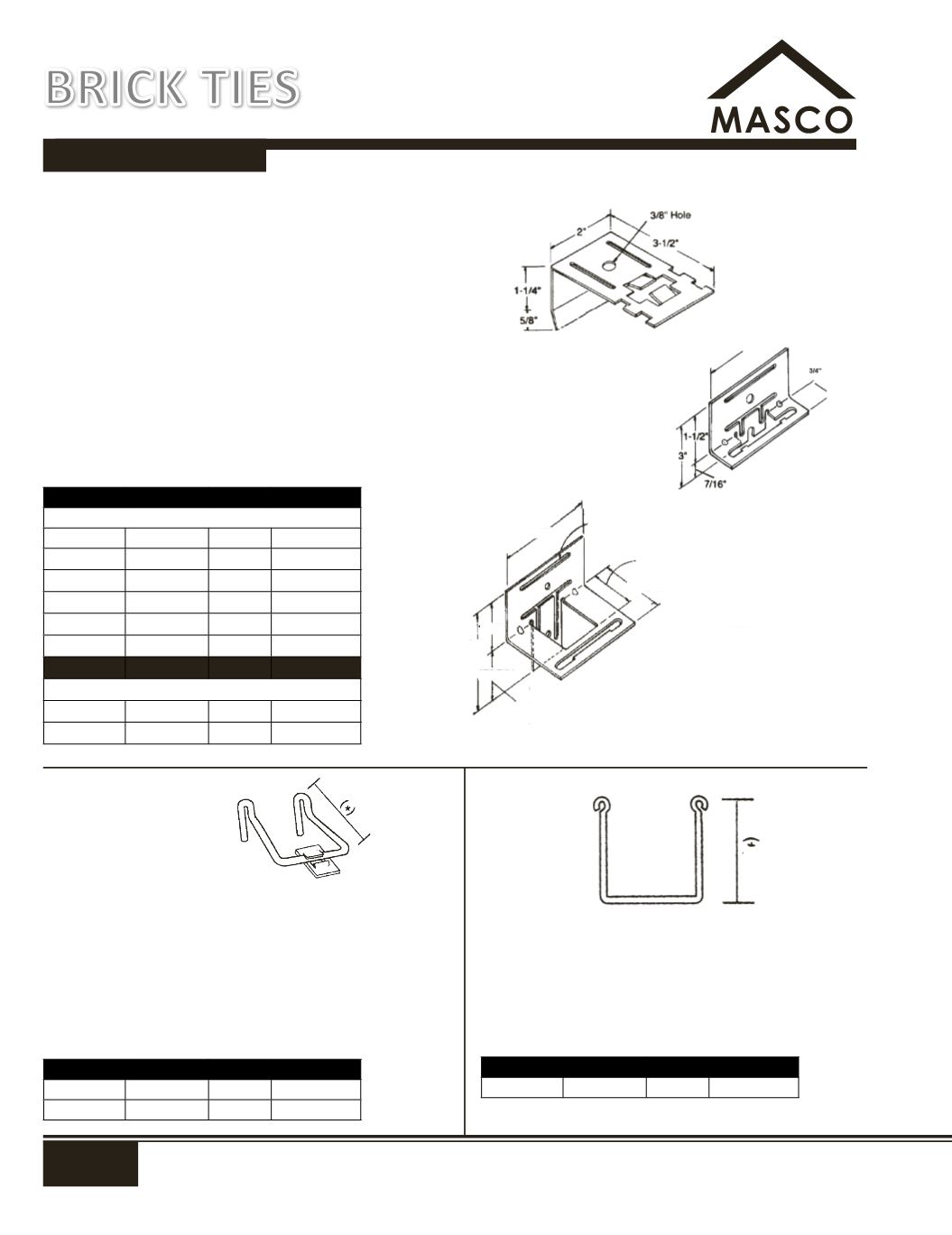

DA213S Seismic
DA 213S is a seismic veneer anchor designed to meet performance
criteria as defined by building codes. These anchors can be used
for tieing brick veneer to wood stud, steel stud, steel framing, CMU
masonry, brick and concrete. They are fabricated with shear lugs that
accommodate 9 gauge veneer reinforcement. The connectors are
individually mounted and are easily installed. The 14 gauge plate is
engineered to be attached to the face of a CMU or concrete steel stud,
wood stud or steel frame. The 12 gauge pintle shear lugs hold pencil rod
in place for greater pull out stress resistance and ductility. Adjust 1-1/4"
up or down for different course heights and allows at least 1/2" horizontal
in-plane movement to accommodate expansion and contraction. A hot
dipped galvanized finish is standard, and 304 stainless steel is available.
It is recommended the use of two screws for stud applications, either the
Stalgard or Stainless Steel SX Screws for steel stud, Stalgard Screws for
wood stud, or a spike for concrete or masonry retrofit applications. Hot
dipped galvanized conforms to ASTM A-153, Class B. Other gauge steel
and finishes available on request.
Seismic Wire Pintle
The pintle is 3/16" diameter wire conforming to ASTM A-82 with
a seismic clip welded to pintle. Pintle adjustments are maximum
of 1-1/4" up or down. Continuous wire fits into place providing a
single unit for stability. The seismic clip conforms to requirements
of Uniform Building Codes for seismic zones. Continuous wire
is embedded in mortar joint, secured to tie anchor which is
fastened to support structure. It adds stability and protects
against problems associated with thermal expansion and
contraction. Also provides more uniform distribution of lateral
forces. Hot dipped galvanized. Other finishes available on
request. Conforms to ASTM A-153, Class B.
Seismic Eye
Designed to be laid in the mortar joint of CMU masonry.
Available in 3/16" wire conforming to ASTM A-82. A seismic wire
pintle is connected to the seismic eye. Typically spaced 16"
vertically and 16" horizontally. Continuous wire fits into the clip
and is embedded into the mortar joint. Hot dipped galvanized
conforming to ASTM A-153, Class B.
No.
Insulation Qty/Ctn Wt/Ctn (lbs)
Plate
DA 213-0 0
350
52.50
DA 213-.5 1/2"
350
59.50
DA 213-1 1"
350
66.50
DA 213-1.5 1-1/2"
175
36.75
DA 213-2 2"
175
40.25
DA 213-3 3"
175
47.25
No.
Size
Qty/Ctn Wt/Ctn (lbs)
Pintle
DA 312SP 3-1/2"
175
52.50
DA 412SP 4-1/2"
175
59.50
No.
Size
Qty/Ctn Wt/Ctn (lbs)
DA 3P-C 3"
350
42.0
DA 4P-C 4"
350
50.0
No.
Size
Qty/Ctn Wt/Ctn (lbs)
DA 518-4 4-3/4"
350
37.0
4
¾
"
Insulation
"A" Dim.
"A" Dim.
1-
¼
"
1-
¾
"
2-
¼
"
D/A 213
D/A213-0.5
D/A 213-1
D/A 213-1.5
D/A 213-2
"B" Dim.
1" -213-0.5
1" -213-1
1-
½
" -213-2
1-
½
" -213-1.5
"B" Dim.
1
½
"
1
-15/16"
3"
DA 312SP
DA 213-0
BRICK TIES
