TILT-UP/PRECAST
PRECAST

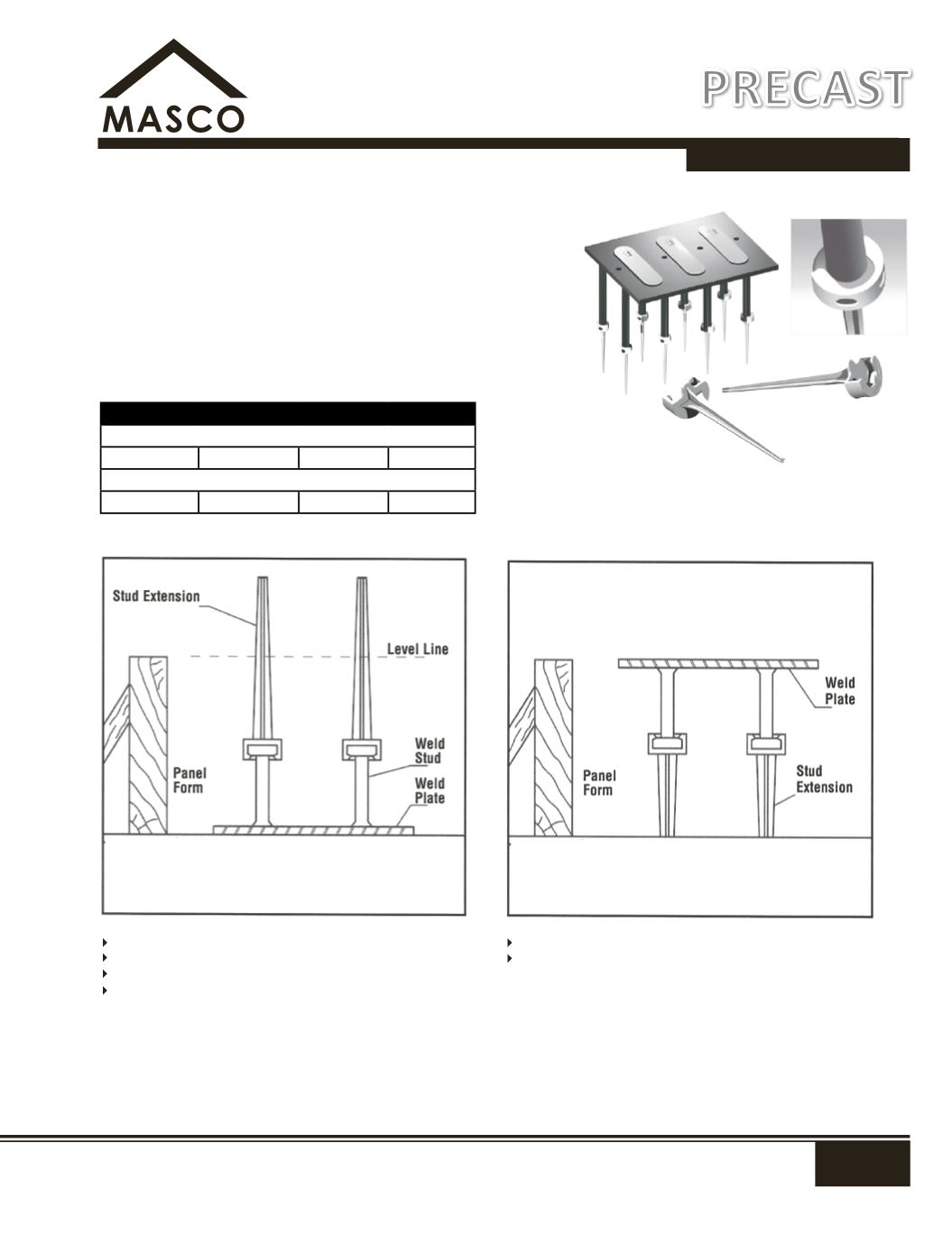

Installing the embed plate or
weld plate in the form:
SWL provides a factor of safety of approximately 5 to 1
Stud Extender
The Stud Extender is designed as an adjustable height
support chair for embed/weld plates. The Stud Extender
eliminates the tedious, labor-intensive wood forming or
risky “wet setting” of embed plates in the top-face of
a concrete panel. They are easy to use and eliminate
wood framing. They save time, materials and have
consistant accuracy. Screed and finish panels easily
with the Stud Extender.
No.
Qty/Ctn
Size
Wt/Ctn (lbs)
Small
MB SES
500
1”
5.0
Large
MB SEL
500
1-1/4”
10.0
Installing on an embed plate or weld plate:
Press the Stud Extender onto the head of the weld stud.
Place the weld plate next to the panel form.
Run a level line from the top of the form across the Stud Extenders.
Cut off the Stud Extender at the level line.
Turn the weld plate upright & place in the proper predetermined position.
Secure the weld plate studs to the rebar mat or edgeform.
