VERTICAL FORMING SYSTEMS

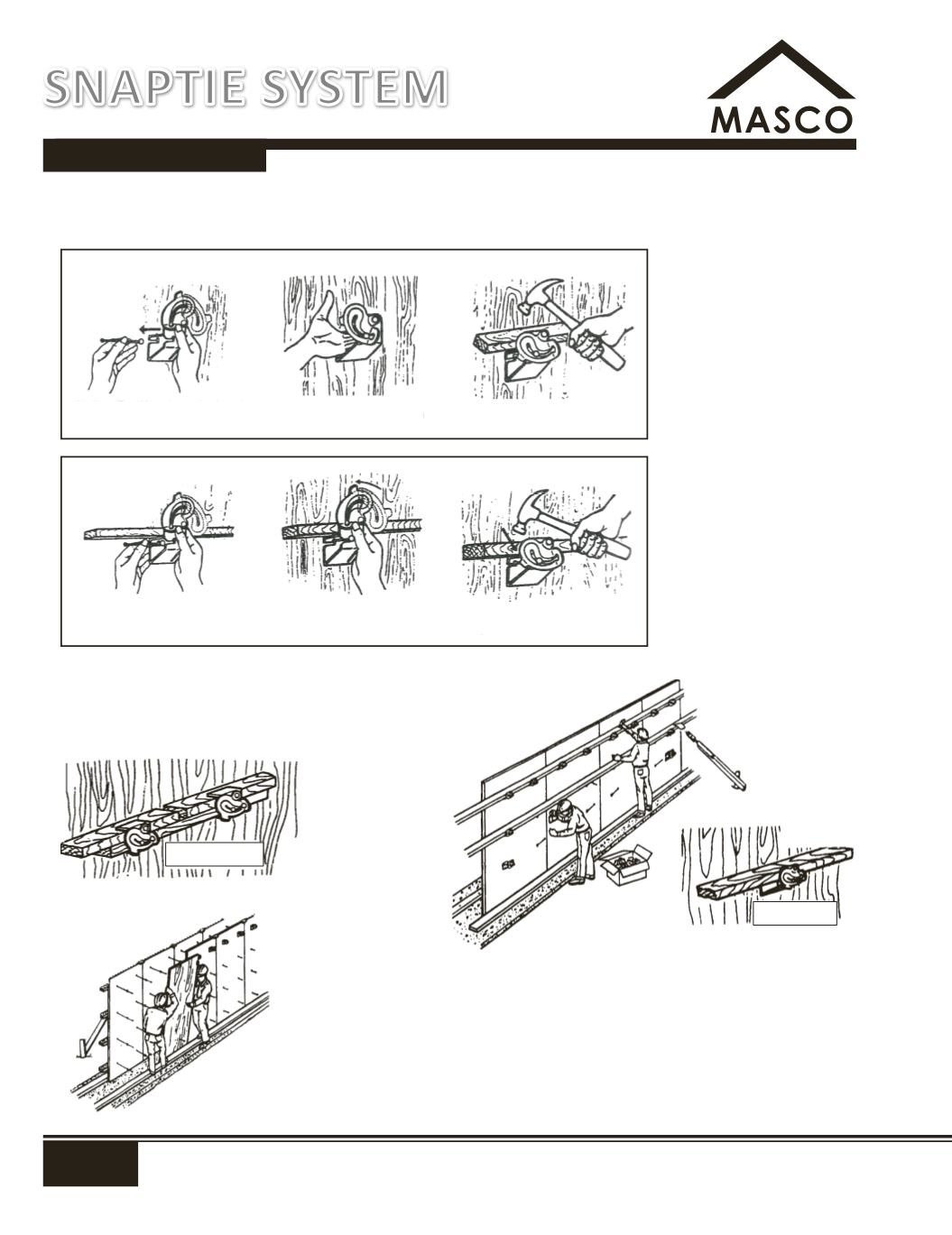

Proper "A" Bracket Installation:
Installation of Wales:
Install the Walers into the brackets working from top to
bottom of the panel and tightening the eccentric as
you go. Waler joints should occur at a bracket or a scab
should be utilized to reinforce the joint (see sketch).
Inside Wall Panel Erection:
The inside panel sequence is the same as the outside panel
described above except for the placement of the plywood
panels over the tie ends. This can be accomplished by two
workmen by starting at the bottom and moving the panel
from side to side and up and down to align the snap ties
with the holes in the plywood.
Jahn
®
Forming System (continued)
1.
Place the "A" bracket on the tie
end by slipping the tie end into the
slots in the bracket.
2.
Rotate the eccentric loosely over
the tie end.
3.
Drop 2x4 waler in place. Seat 2x4 with
hammer, if neccessary.
1.
Slip the back slot in the bracket
body over the tie directly behind the
head.
2.
Push the bracket toward the
plywood until the tie head emerges
through the front of the bracket.
3.
Rotate the eccentric over the tie head
and tighten.
Without Waler In Place:
Placing Waler
Tightening Waler
With Waler In Place:
SCABBED JOINT AND
"C" BRACKETS
WALE JOINT
AT "A" BRACKET
SNAPTIE SYSTEM
