VERTICAL FORMING SYSTEMS

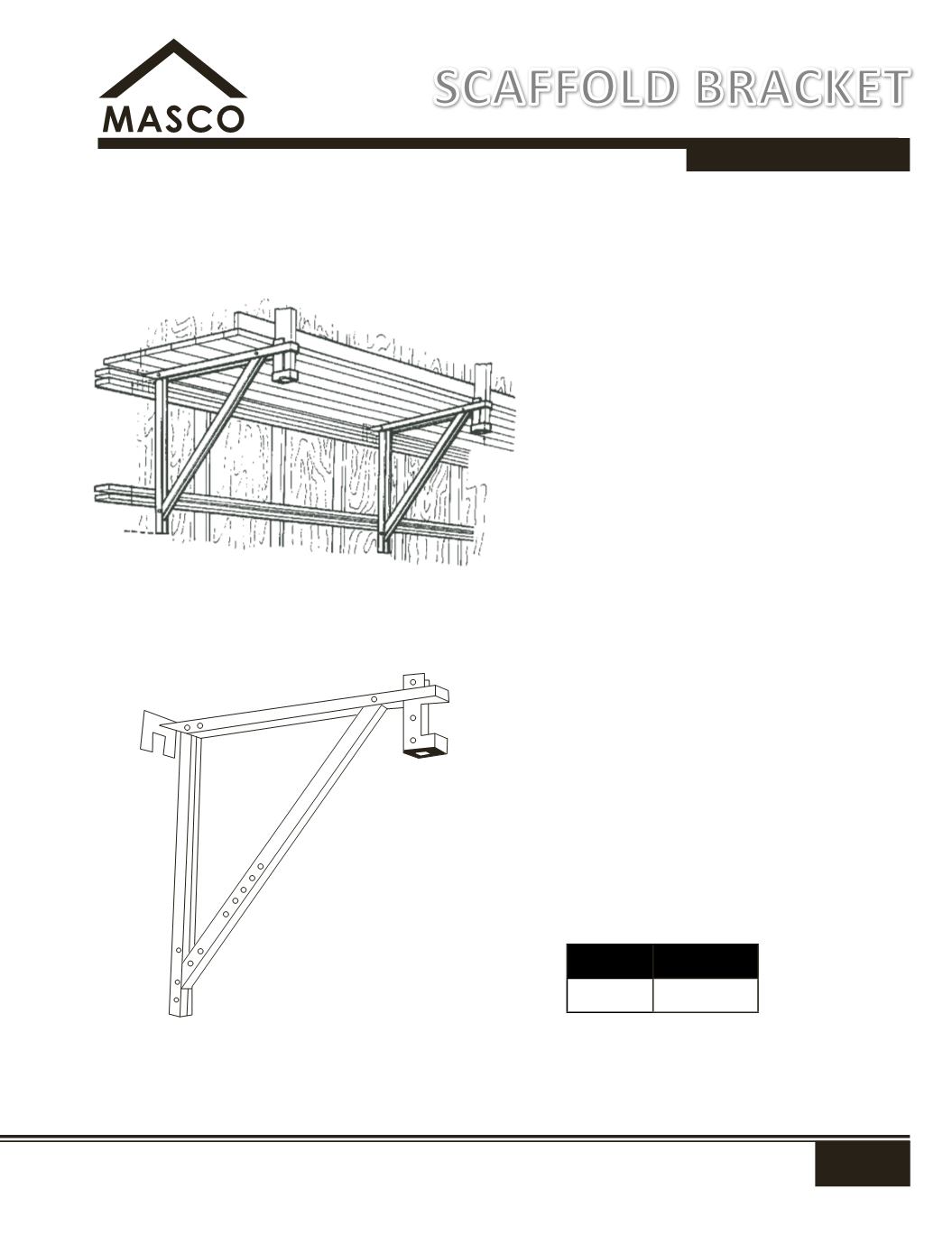

Scaffold Jack Bracket
Scaffold Jack Bracket meets state building
codes and OSHA minimum requirements and is
used to support scaffolding on nearly any type of
formwork. By changing the position of the pins in
the vertical and horizontal members the bracket
can be quickly adjusted to fit 2x4, 2x6 or 2x8
horizontal wales by changing hook position.
Attachment can be made to a concrete wall
through 1" diameter pipe to either thru-bolt or
exposed coil tie end, insert, or other appropriate
method.
It is designed to support walkway only and fits
most walkway planks to make a convenient
working platform. Heavy loads placed on this
bracket may cause tie failure. The built-in guard
rail receptacle for 2x4 handrail post makes it easy
to install a safe and economical safety rail.
Replacement parts for brackets are available on
special order, please contact Masons Supply for
cost and availability.
The A-90 Scaffold Jack Bracket is rated with a
safe working load of 47 psf, based on a minimum
factor of safety of 4 to 1. The maximum bracket
spacing should be limited to 8'-0" on center.
2.667' x 8.0' x 47 psf = 1,000 lbs.
This bracket is intended for use as a carpenter
scaffold bracket only.
No.
Wt (lbs)
DS 30306 23.0
SCAFFOLD BRACKET
