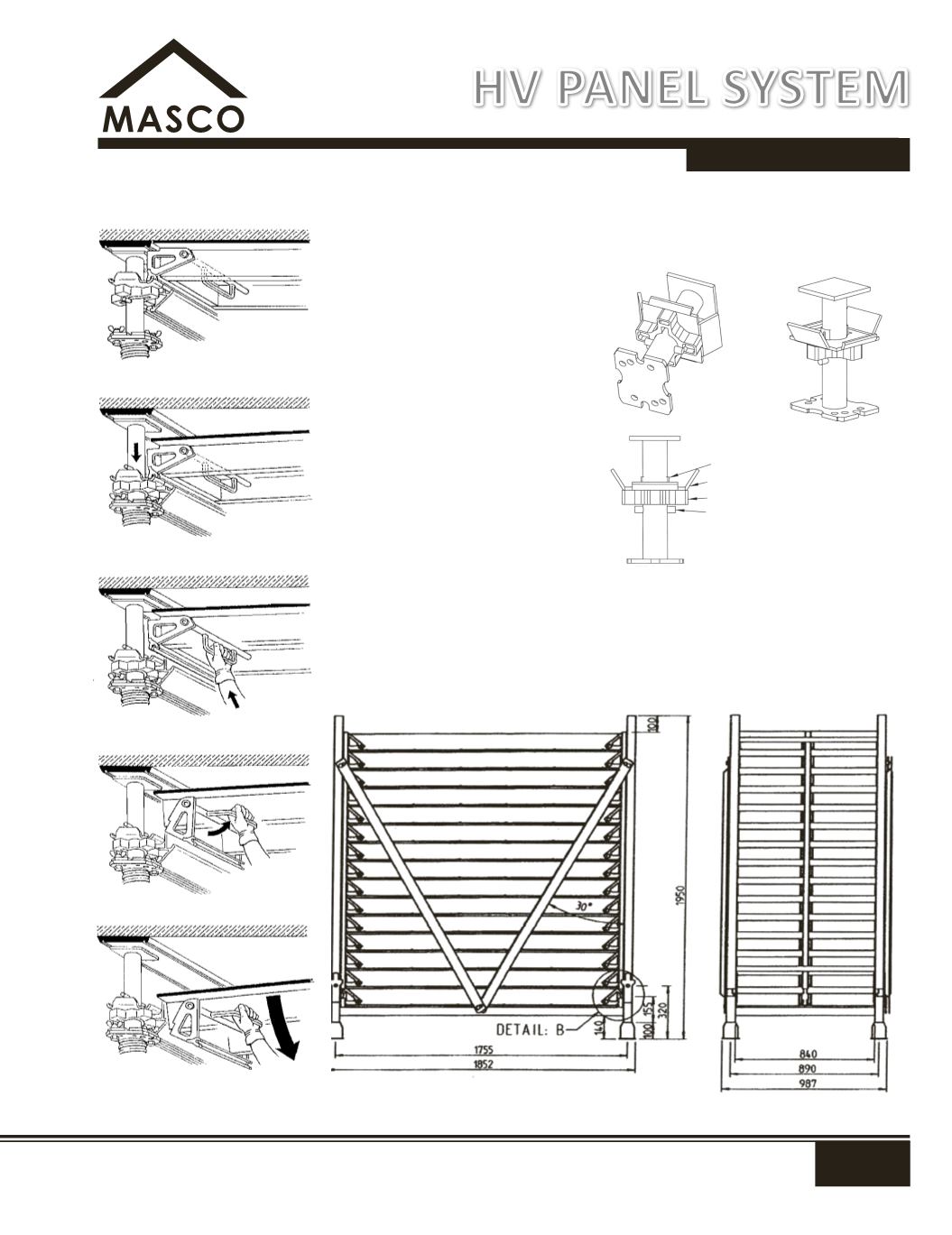

HV Panel Deck System
The GFK-Plate 3/8” is screwed into the
Alum-Frame to make the HV - Combi
Panel.
Each HV - Combi Panel will provide
9 sq.ft. and weigh only 36 lbs. In lieu
of Secondary H-girders and loose
plywood the HV - Combi panel is hung
between the Main V-girders.
It is very easy to move the HV - Combi
panel into the Main V - girder, so that
the erection of the system can be
started directly in the wall corner.
The space on top, between the two
HV - Combi panels is closed with GFK
filler strip
(170 x 21 x 1125 mm L = 3' – 8-1/2").
This Filler stays in place, over the
Drop heads until the Post shores are
released.
The HV - Combi panels can be early
stripped and moved to the next
location.
All advantages from original HV-Drop
head system are still applicable.
HORIZ. FORMING & SHORING
HV DROPHEAD POSITIONS
POSITION & ROTATE LOCKING COLLAR
LOCKED POSITION
FRONT VIEW
LOCATING PLATE
HV BEAM SUPPORT PLATE
DROPHEAD LOCKING COLLAR
SUPPORT PIN
1. Lift drophead locking collar
over support pin and rotate 90
degrees.
2. Collar tightens against pin by
means of cam action.
3. Once rotated, tap with hammer
to secure.
HV PANEL SYSTEM
